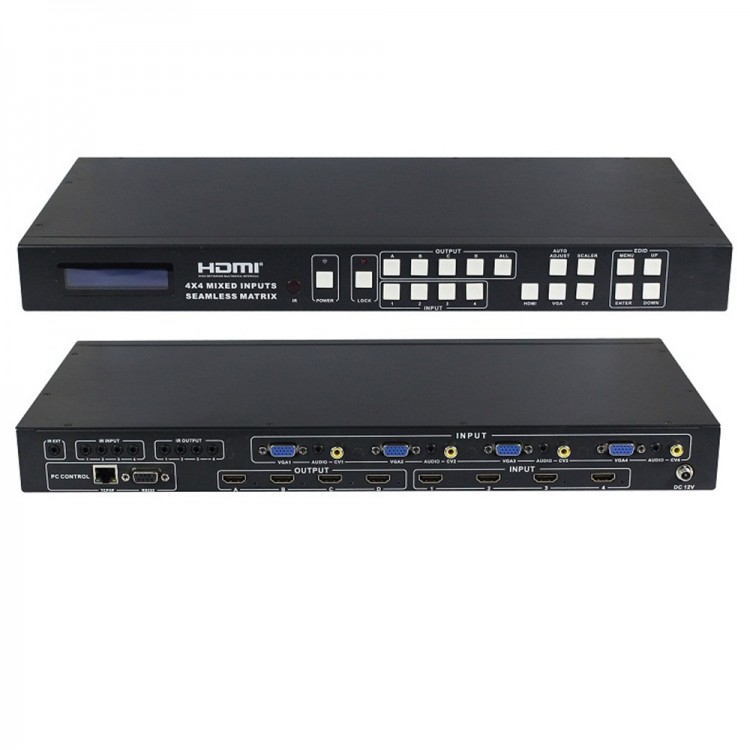

HDMI 4 x4 Mixed Inputs Seamless Matrix Switcher Support HDMI VGA RS232 TCP IP Control HDM-944F

HDMI 4 x4 Mixed Inputs Seamless Matrix Switcher Support HDMI VGA RS232 TCP IP Control HDM-944F

User manaual: Click here and here

Introduction
The HDM-944F is a high-performance with seamless switching output and mixed input 4x4 matrix switcher,4 mixed input to support digital video signals and analog video signal,and 4 outputs with seamless switching function,seamless switching mode: fast switching,fade in/fade out, blinds and so on;the mixing matrix switcher adopts the advanced digital technology,with scaler function,and achieve a variety of formats to achieve a unified output signal,switching seamlessly perfect visual effects.At the same time it with infrared matrix function,analog video signal input with embedded audio function.Flexible control mode diversity,through the front panel button,remote control,RS-232 and TCP/IP control.

Features
- Compliant HDMI1.3, HDCP1.3 and DVI1.0
- Input video supports HDMI, VGA and C-video
- Supports input resolutions :
  HDMI: 480i to 1080p
  VGA:1920 x 1080P@60Hz, 1360 x 768P@60Hz,
 1280 x 1024P@60Hz, 1024 x 768P@60Hz,
 1280 x 720P@60Hz,1280 x 768P@60Hz, 800 x 600@60Hz,
  640 x 480P@60Hz, 720 x 400P@85Hz
- CV: Supports PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M, PAL/N standard TV formats
- Supports output resolutions :1920x1080P@60Hz
- Supports seamless switching output,optional seamless switching mode:fast switching,fade in/fade out,blinds and so on
- The RS-232 for the firmware update
- Supports RS-232, remote control, on-panel control and TCP/IP Control
- Supports smart EDID management
- Picture Adjustment Settings
- Automatically adjust the VGA input video
- Supports power-off memory

Package Contents
- 1 x HDMI 4 x4 mixed inputs seamless matrix switcher
- 1 x 12V/2.5A DC power adaptor
- 1 x Operation Manual
- 4 x Wideband IR Tx cable
- 5 x Wideband IR Rx cable
- 1 x Mixed Matrix IR Remote
- 2 x Mounting ears
- 1 x RS232 cable
