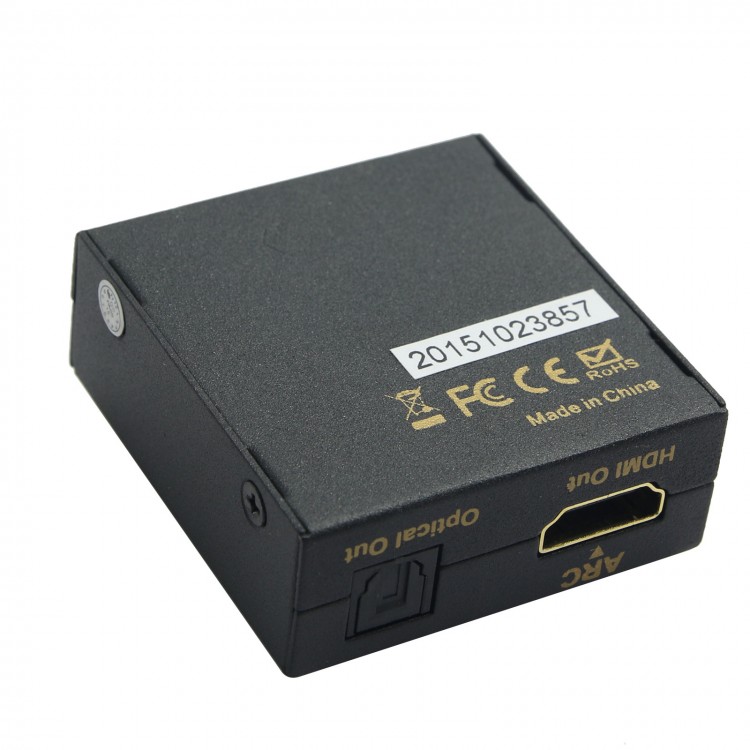

HDMI ARC Adapter to HDMI & Optical Audio Converter 4K 3D 1080P CEC with USB to DC 5.5mm Power Cable
FEATURES:
- One ways of HDMI signal input and output, one ways ARC audio (Toslink) signal output.
- HDMI output port support ARC (audio return channel).
- HDMI supports 4K. Support CEC function.
- Support input and output up to 5metres AWG26 HDMI standard cable length.

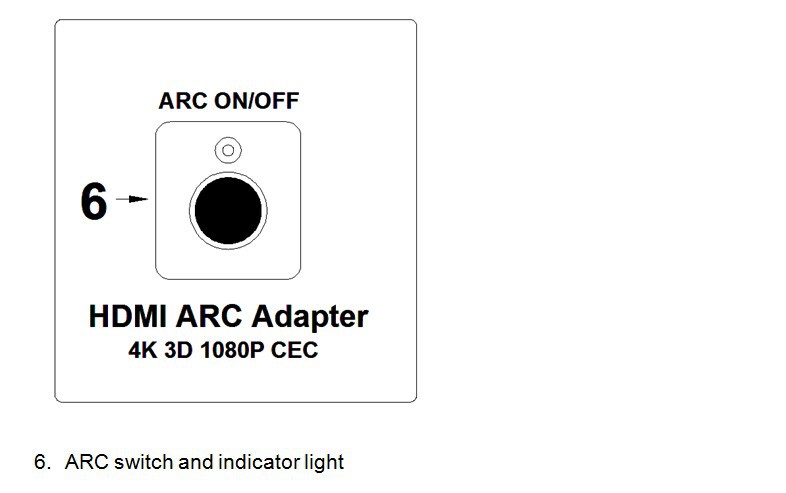

- The device has ARC switch and indicator light to let you know if ARC is disabled or enabled.
- Installs in minutes
Operating and Connecting：

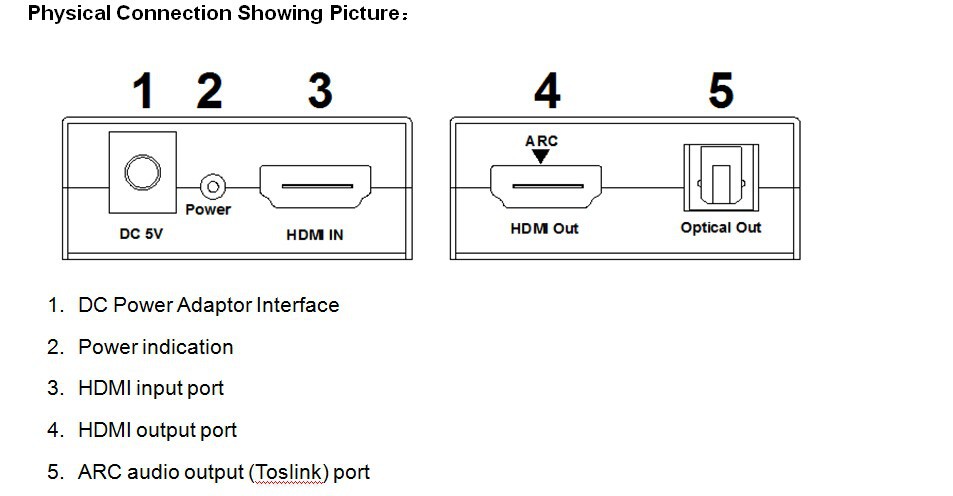

1. To use the HDMI Cable to connect the HD sources with the HDMI Input port and uses the HDMI cable to connect the HD display with the HDMI Port.(This mode the HDMI port is pass-through channel, pls make sure the ARC is off).
2. To use one HDMI Cable to connect the Display that supported ARC with the HDMI output port of the device and use one optical cable to connect the AV receiver and the SPDIF output port.(At this mode, you can use ARC, pls make sure that the ARC of device and Display is on).
3. Connect DC 5.5mm cable to device DC 5V input port. And connect the USB port to standard USB(Type A) power interface.
Note: Please use HDMI v1.4 standard cable for the display device and ARC adapter connection.
SPECIFICATIONS:
- HDMI resolution: 24/50/60fs/1080P/1080i/720p/576p/576i/480P/480i,24/30/2160P
- Support audio format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
- Support ARC audio output format (Relate with display devices): LPCM2.0/DTS/Dolby-AC3
- Max bandwidth: 340MHz
- Maxtransmission bandwidth: 10.2Gbps
- Input cable distance: ≤5m AWG26 HDMI standard cable
- Output cable distance: ≤5m AWG26 HDMI standard cable
- Optical fiber cable output distance: ≤30m(Use the optical fiber cable loss less the 0.2Db/m)
- Max working current: 0.15A/5V DC
- Operating Temperature range: (0 to +40℃)
- Operating Humidity range: 5 to 85%RH (No Condensation)
- Storage Temperature range: (-10 to +55℃)
- Storage Humidity range: 0 to 90%RH (No Condensation)
- Dimension (L x W x H): 52.5x48.5x20 (mm)
- Weight: 80g
Packing Content:
- 1 x HDMI ARC Adapter
- 1 x USB to DC 5.5mm Power cable
- 1 x Operation Manual
