HDMI-compatible 4K 30FPS H.265 Low Latency Video Decoder and Encoder Support Bidirectional Voice Intercom

HDMI-compatible 4K 30FPS H.265 Low Latency Video Decoder and Encoder Support Bidirectional Voice Intercom

Description:
- It is a multi-functional all-in-one device, including encoding and decoding. When you use it, you can select the corresponding function input and output port to achieve the function what you need.
- It supports web management and also you can install an APP on your Android phone to manage the device which can help you manage more easily.

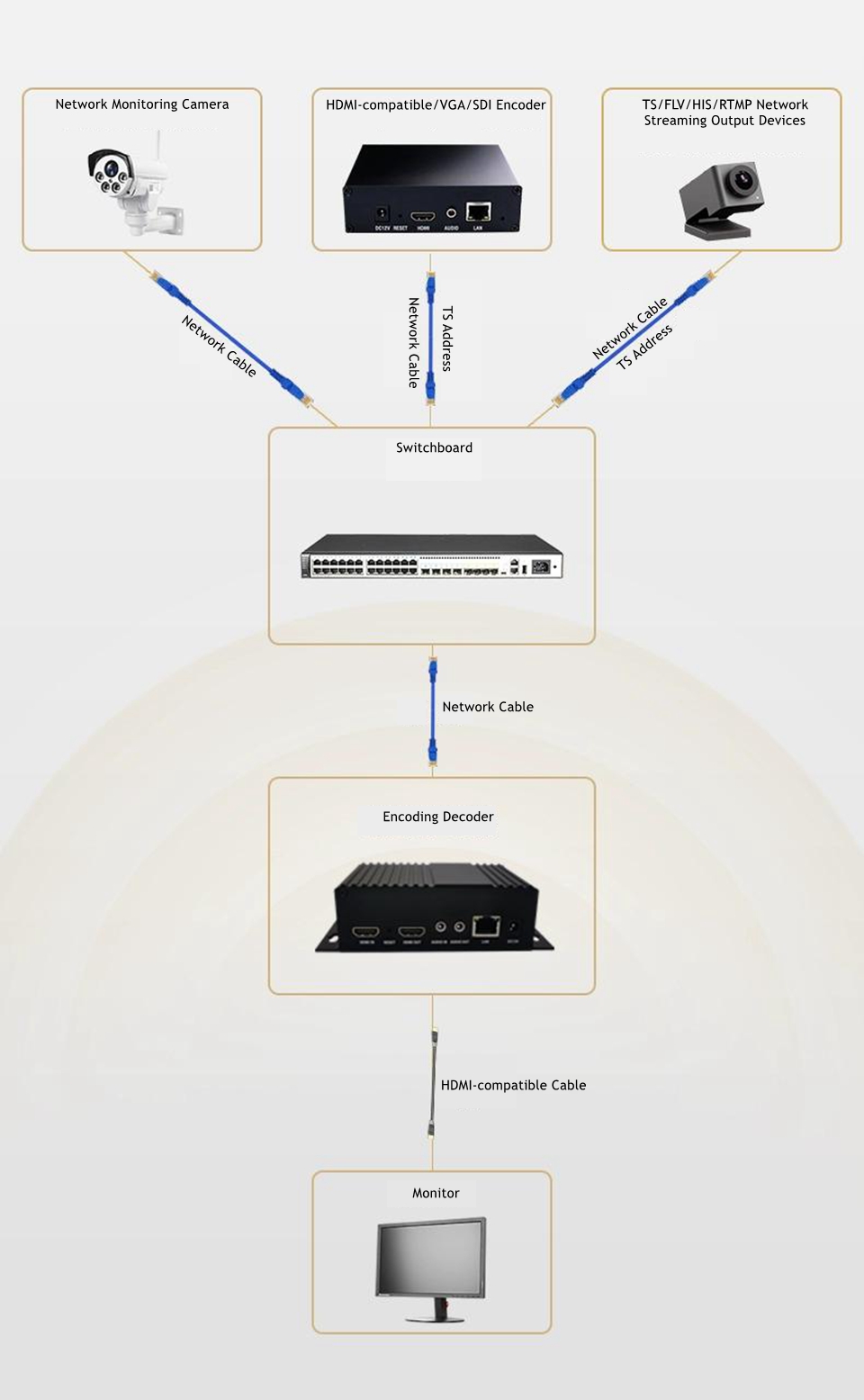

- Two functions: the first function, HDMI-compatible to IP H.264/H.265/MJPEG encoding with HDMI-compatible loop out. The second function, IP input to HDMI-compatible output, H.264/H.265/MJPEG decoding output, HDMI-compatible output support up to 1080P 60fps. Support RTSP/HTTP/UDP/RTMP/RTMPS/HLS/RTP/SRT protocols. Also the encoding and decoding can work simultaneously.
- Its powerful functions can be widely used in education, health care, IPTV, conference, remote education, news interview, banking, transportation and other industries. This is a cost-effective and functional choice for customers who need encoder, decoder devices in the same time.

Features:
- Support 3840x2160P 30FPS ultra HD and 1920x1080P 60FPS HD input.
- Supports 1 main stream, 3 secondary streams, and decoding output 1 channel HDMI-compatible.
- Functions: live streaming, monitoring NVR recording, IPTV live streaming, LAN live streaming, low latency transmission, OSD settings, voice intercom.
- 7 x 24hours 4-channel stable working.
- Collecting game computer graphics for live streaming without affecting the speed of the game computer; Directly replacing another computer to complete live streaming saves money, space, and electricity.
- Support for RTMP/RTMPS/SRT protocols to stream live to major mainstream platforms.
- Built in RTMP, default RTMP streaming address rtmp://192.168.1.168/live/0
- By using the ONVIF protocol, NVR can retrieve the encoder IP and add it to the NVR to play stored videos.
- Supports live streaming for multiple people on the local area network, and supports for RTMP/RTSP/HTTP TS/HLS/FLV/RTP/UDP/SRT protocols for direct playback within the local area network.
- Collect computer desktop data, play PTE protocol with a delay of 80-200 milliseconds; The PTE protocol is a proprietary protocol independently developed, with the main function of low latency.
- OSD display, multiple areas in the video screen can add logo images, text, scrolling text, and time.
- Voice intercom: it can connect to 1 channel 3.5mm external audio and decode with another device in the local area network to achieve low latency voice intercom. Audio encoding method: AAC/AAC+/AAC++/MP3/MP2/AC3; Channel: Stereo/Left/Right; RTSP stream compatible with G711A encoding.
- Compatible with 99% of network cameras on the market, capable of decoding all IP cameras with ONVIF protocol, for Panasonic, Samsung, Sony, Hikvision, Dahua, YAAN, Bosch and other network cameras, as well as high-definition modules for TOPSEE, XM TECH, Juan Cloud and other manufacturers' cameras and ball cameras with ONVIF network protocol.
- Decoding 4K30fps source, outputting 1920x1080P 60fps image quality; Powerful decoder capability, decoding 1 channel of 4K 30fps quality or decoding 4 channels of 4K 30fps, decoding video formats of H.265/H.264.

Encoding Specification:
Streaming Protocol:
- Standard protocol: RTMP/RTMP(S)/RTSP/HTTP TS/HTTP FLV/HLSTS/HLS MP4/MP4/SRT/UDP/RTP
- Private protocol: HTTP PTE

Audio and Video Input:
- Video input: 1CH HDMI-compatible
- Audio input: 1 channel HDMI-compatible built-in audio; 1 channel 3.5mm external audio

Video Encoding:
- Encoding type: H.265/H.264/MJPEG
- H.264 level: baseline/main /high optional
- Encoding frame rate: same as input frame rate/automatic/custom frame rate 5-60
- Key frame interval (frame): 5-300 adjustable
- Bit rate (kbit): 32-32000 adjustable
- Resolution after encoding: 3840x2160 /1920x1200 /1920x1080 /1680x1056 /1680x1050 /1600x1200 /1600x900 /1366x768 /1280x1024 /1280x720 /1024x768 /1024x576 /960x540 /850x480 /800x600 /720x576 /720x540 /720x480 /720x404 /704x576 /640x480 /640x360 /608x448 /544x480 /512x288 /480x480 /480x384 /480x360 /480x320 /480x272 /480x270 /400x320 /400x224 /352x480 /352x228 /320x256 /320x240 /320x180 /240x180 /Same as input resolution
- Stream control: CBR/VBR/Strong CBR optional
- Image quality range: high/higher~high/medium~high/lower~high/low~high
- Stream: 1CH main stream, 3CH secondary streams

Audio Encoding:
- Audio input: digital/analog
- Encoding sampling rate: 44100/48000/same as input sampling rate optional
- Encoding method: AAC/AAC+/AAC++/MP3/MP2/AC3/Opus optional
- Left and right channels: L+R/L/R
- Encoding bit rate:
  AAC: 48000 ~ 320000 /AAC+: 24000 ~ 48000/
  AAC++: 12000 ~ 32000/MP3: 64000 ~ 320000 /
  MP2: 64000 ~ 320000 / AC3: 40000 ~ 640000 / Opus: 8000 ~ 256000 adjustable
- Digital volume gain: -50 ~ 50 adjustable
- Reduce dryness: disable/enable optional
- PTE stream uses G711A encoding: disable/enable optional
- RTSP stream uses G711A encoding: disable/enable/enable with resampling to 8 optional
- G711 coding: G711A/G711 optional

OSD:
- Transparency: 0-255 adjustable
- Type: text/picture/scrolling text/time
- Area: 4 areas available
- X coordinate: 0-1920
- Y coordinate: 0-1080
- LOGO: You can upload 4 LOGOs to choose from.
- Font size: 8-72
- Background color: transparent/white/black
- Font color: RGB color optional

Decoding Specification:
Decode Streaming Protocol:
- Private protocol: HTTP PTE
- Standard protocol: RTSP/HTTP TS/HTTP FLV/RTMP/RTMPS/UDP/SRT/HTTP HLS

Video Decoding:
- Type: H.265/H.264/MJPEG
- Frame rate: 1 - 60
- Bit rate (kbit): 32 - 32000
- Resolution: Maximum support 2160P at 30
- Number of channels: 1 CH

Audio Decoding:
- Type: G711A/G711U/AAC+/AAC++/MP2/MP3
- Number of channels: single channel/dual channel
- Sampling rate (Hz): 8000/11250/22500/44100/48000
- Number of channels: 1 CH

Video Output:
- Resolution: 1920x1200P60 /1600x1200P60 /1920x1080P60 /1920x1080P50 /1920x1080P30 /1920x1080P25 /1920x1080P24 /1680x1050P60 /1440x900P60 /1366x768P60 /1280x1024P60 /1280x800P60 /1280x720P60 /1280x720P50
- HDMI-compatible: 48KHz dual channel output

Audio Output:
- 3.5MM: support
- HDMI-compatible: support

General Parameter:
- Intercom: support
- Network: Gigabit
- Configuration management: through WEB
- ONVIF: Support ONVIF search and browse videos
- Power supply: 12V
- Power consumption: <4W
- Working temperature: -20℃+60℃
- Working humidity: <90%, no condensation
- Product size: 14.7 x 8.9 x 4cm
- Weight: 272g

Package Included:
- 1 x Host
