| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $17.93 | $17.57 | $17.02 | $16.29 | Contact US |

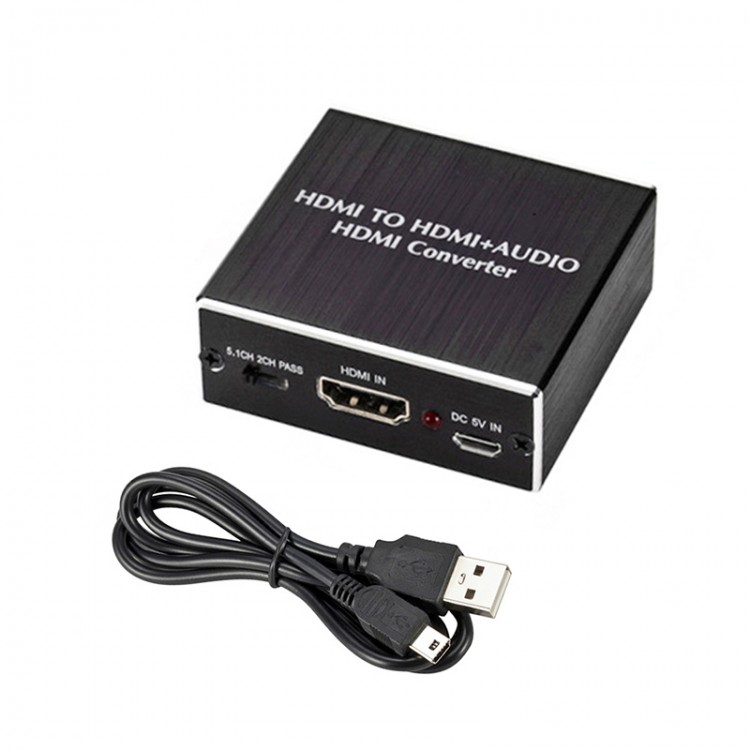

HDMI Converter HDMI Audio Extractor Splitter 4Kx2K HDMI To HDMI + SPDIF + R/L Audio Signal Converter
Description:
The HDMI converter allow extract audio signals from any HDMI compliant source to digital optical or 3.5MM headphone audio output.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Features:
- Convert 1 HDMI input to 1 HDMI output + 1 audio (SPDIF) output + 3.5mm analog audio output
- Input resolution: up to 3840x2160 at 30 Hz; 4096x2160 at 30 Hz
- HDMI realizes the synchronous separation of audio signals. There are three audio modes: PASS/2.0CH/5.1CH.
- LED indicator clearly indicates the working status of the extractor.
- Support extract audio signals from any HDMI compliant source to digital optical or 3.5MM headphone audio output
- Support 4K x 2K at 30Hz, support 3D
- Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
- Support for DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD audio
- Support signal retiming
- Support lossless transmission
- Compact design and easy to install
- Power adapter is optional
Specifications:
- HDMI resolution: 4k*2k at 30Hz/3D/1080p/1080i/720p/576p/576i/480p/480i
- Support video color format: 24bit/deep color 30bit, 36bit
- Support audio format: for DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
- Max. bandwidth: 340MHz
- Max. baud rate: 10.2Gbps
- Input/Output TMDS signal: 0.5~1.5Volts p-p(TTL)
- Input/Output DDC signal: 5Volts p-p (TTL)
- Input cable distance: ≤10m AWG26 HDMI standard cable
- Output cable distance: ≤10m AWG26 HDMI standard cable
- Max. working current: 350mA
- Power adapter format: Input: AC (50HZ, 60HZ) :100V-240V; Output: DC5V
- Operating Temperature range: -15℃ to +55℃
- Operating Humidity range: 5 to 90%RH (No Condensation)
- Storage Temperature: -20°C to 60°C / -4°F to 140°F
- Dimensions: 58 x 54 x 22mm (LxWxH)
- Weight: 140g
Package Included:
- 1 x Set of HDMI Audio Splitter
