HDMI Encoder H265 Encoder Video Encoder HDMI to SRT/HLS Streaming for IPTV Game Live Streaming

HDMI Encoder H265 Encoder Video Encoder HDMI to SRT/HLS Streaming for IPTV Game Live Streaming

Features:
- HDMI video encoder supports for ONVIF
- Compatible with security cameras for Hikvision, Dahua and Jovision
- HDMI H.264/H.265 Audio Video Encoder: With ultra-clear picture quality, it can be used for real-time live streaming
- Input 1920*1080P60 frame HD picture. It supports one-way primary bitstream and one secondary bitstream
- Output 1x2 bitstreams
- 7*24 hours stable work: It supports livestreaming, security NVR record-broadcast, IPTV live streaming, LAN live streaming, low latency transmission and OSD setting
- Provide a HD game live streaming experience: Collect game computer footage for live streaming without affecting game PC speed. Replace another computer to complete the live streaming, saving money, space and power. Supports RTMP/RTMPS/SRT protocols. It can push live streaming to major mainstream platforms such as Mudu, Alibaba Cloud, Inke, Douyu, Huya, Longzhu, Tiktok, Bilibili, Youku, Iqiyi and Tencent Cloud
- Built-in RTMP/SRT server: Default RTMP address to pull stream: rtmp://192.168.1.168/live/0. Default SRT address to pull stream: srt://192.168.1.168:9000
- Security NVR recording: Through the ONVIF protocol, the encoder IP can be found and added to the NVR
- Low latency: Collect computer desktop, play PTE protocol, and delay is 80-200 milliseconds. The PTE protocol is a private protocol, and its main function is low latency
- OSD display: LOGO images, text, scrolling text and time can be added to multiple areas of the video screen
- Audio access: can access 1-channel 3.5mm external audio or HDMI audio (Pick one out of two). Audio coding method: AAC/AAC+/AAC++/MP3/MP2/AC3. Channel: stereo/left/right. RTSP streams are compatible with G711A encoding

Specifications:
Audio Video Input:
- Video input: 1-way HDMI
- Audio input: 1-way HDMI built-in audio and 1-way external audio

Encoding Type:
- H.264/H.265

Video Encoding:
- Encoding frame rate: 5-30 adjustable
- Key frame interval (frames): 5-300 adjustable
- Bit rate (kbit): 32-32000 adjustable
- Maximum support: 1920x1080P30
- Resolution after encoding: 1920x1080/1680x1056/1280x720/1024x576/850x480/720x576/720x540/720x480/720x404/704x576/640x480/640x360/608x448/544x480/480x480/480x384/480x360/480x320/480x272/480x270/ 400x320/400x224/352x480/352x228/320x256/320x240/320x180/240x180 (the same as input resolution)
- H.264 level: baseline profile/main profile/high profile
- Stream control: CBR/VBR optional
- Streaming: Supports RTMP/RTSP/HTTP TS/HTTP FLV/HLS/SRT/UDP MULTICAST/SRT/RTP MULTICAST

Audio Coding:
- Encoding sampling rate: 44100/48000
- Encoding method: AAC/AAC+/AAC++/MP3/MP2/AC3
- Encoding bit rate: AAC: 48000-320000 adjustable/AAC+: 24000-48000 adjustable; AAC++: 12000-32000 adjustable / MP3: 64000-320000 adjustable; MP2: 64000-320000 adjustable/AC3: 40000-640000 adjustable
- Digital volume: -50 to 50 adjustable
- RTSP streams are encoded using G711A: disable/enable

OSD:
- Transparency: 0-128 adjustable
- Type: Text/Image/Scrolling Text/Time
- Regions: 4 zones are optional
- X coordinates: 0-1920
- Y coordinates: 0-1080
- LOGO: You can upload 4 LOGOs for selection
- Font size: 8-72
- Background color: transparent/white/black
- Font color: RGB color optional

General:
- Network: 100Mbit
- Configuration management: Configuration management through the web
- For ONVIF: Support for ONVIF to find and browse videos
- Power supply: 12V/DC, 2A
- Power consumption: 2W
- Operating temperature: -20°C to +60°C
- Operating humidity: <90%, non-condensing
- Dimensions: 8.4 x 5.3 x 2.7cm/3.3 x 2.1 x 1.1"

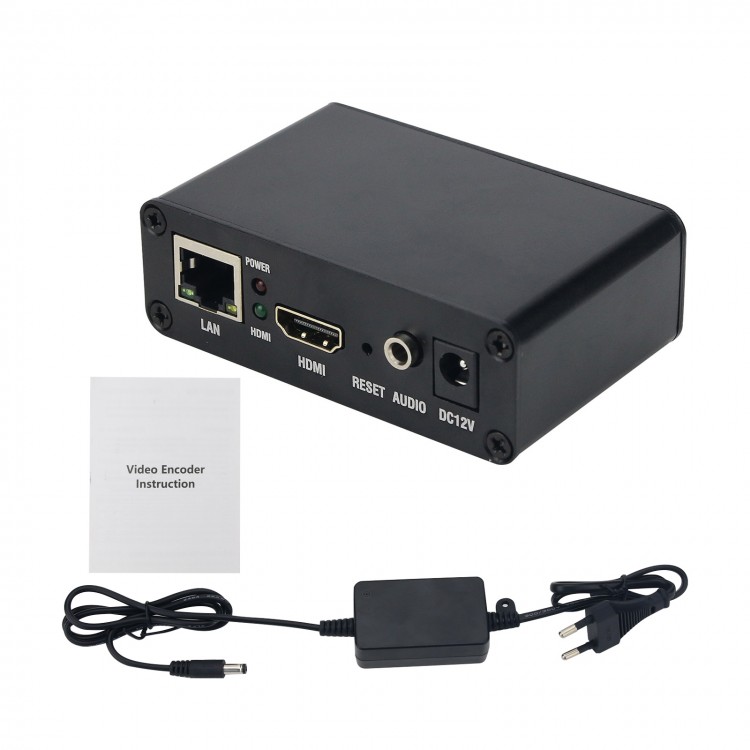

Package Included:
- 1 x Video Encoder
