HDMI Extender over Cat5e/Cat6 Bi-Direction IR and Power over UTP Extender Transmitter Receiver 80M

HDMI Extender over Cat5e/Cat6  Bi-Direction IR and Power over UTP Extender Transmitter Receiver 80M

Introduction:
HDMI+USB KVM extender includes transmitter and receiver. Transmitters combine HDMI video, audio and control signals, then transmit them through single CAT5e cable. Receivers get these signals, separate signals and rebuild video, audio and control ones, output through HDMI interfaces. It supports USB HID mouse and keyboard, remote IR (RX->TX) and bi-direction RS232 URAT. This product can achieve all functions through single CAT5e cable. Extending distance is 50 meters for 1080p 60Hz HD signal.

Main features:
- Extending distance is 170ft(50 meters) at resolutions 1080P 3D or 1920x1200 60fs, and 270ft(80 meters) at 1080i/720P through single CAT5e cable.
- Support audio formats, Dolby True HD, DTS-master, etc.
- Support 3D signals (all 7 formats), such as Frame Packing, Side-by-Side, Top-to-Bottom, etc.
- Support EDID call back.
- Support CEC pass through.
- VESA DDC and hot swap technology (HPD).
- 38Khz remote IR (RX->TX).
- USB HID mouse and keyboard (RX->TX). Model A only.
- Bi-direction RS232 UART communication. Model A and C only.
- Compatible with HDCP 1.2.
- Compatible DVI 1.0.
- Support cascade to enhance extending distance.
- Industrial metal case, easy to install.

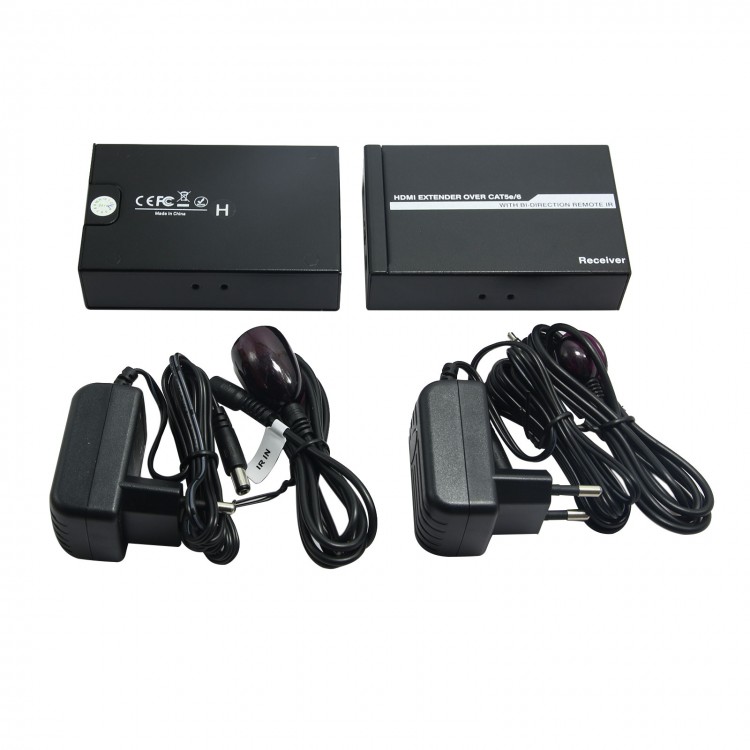

Packing list:
- 1 unit transmitter
- 1 unit receiver
- 1 remote IR blaster (with 1m cable）,
- 1 IR receiver (with 10cm cable).
- 1 unit DC 12V 1A adapter
- 2 units of DC 5V 1A adapter.
