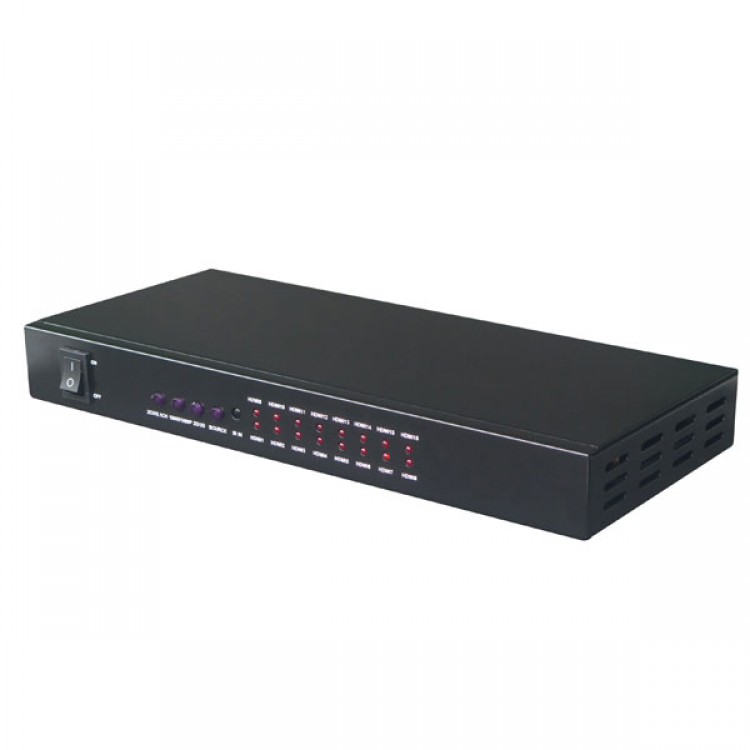

HDMI Extender over One CAT5E/CAT6(TCP/IP) HDV-816 HDMI Splitter x 16

HDMI Extender over One CAT5E/CAT6(TCP/IP) HDV-816 HDMI Splitter x 16

Introduction
- The HDMI Extender over ONE CAT 5E/6 is a tool for extending your HDMI signal over long distances to a compatible display. Instead of using expensive HDMI cables, your existing CAT 5E/6 cables/sockets can be utilized to perform advanced functions like transferring Deep Color (12 bits/color) video and digital audio, with a bandwidth up to 225MHz. The HDMI transmitter and receiver, over ONE CAT 5E/6 extender is your substantial HDMI extender tool. The HDMI Extender over ONE CAT 5E/6 also support IR re-transmitting, so you can control the Source which is 100 meters outside using the HDMI Extender.

Features
- DC 5V~12V wide power supply.
- HDMI 1.3, HDCP 1.1 and DVI1.1 compliant.
- Support Deep Color up to 12 bits/color.
- Support IR re-transmitting.
- Uses one CAT5E/6 cable for data/DDC transmission.
- Equalizes and recovers incoming TMDS data before re-transmitting it in optimal quality regardless of the incoming signal quality.
- Cable testing showed that with 1080p resolution the HDMI input source can be 20meters away.
- When transmitting a signal in 1080p resolution the CAT6 operating distance is 100 meters.

Package
- HDMI Extender (Transmitter) ------------------------------------ 1PC
- HDMI Extender (Receiver )--------------------------------------- 1PC
- IR Transmitter ---------------------------------------------------- 1PC
- IR Receiver -------------------------------------------------------- 1PC
- 5V DC Power Supply adapter ----------------------------------- 2PCS
- Operation Manual ------------------------------------------------- 1PC

Specifications
- Frequency Bandwidth                 2.25Gbps (single link)
- HDMI Transmitter Input/Output Ports    1x HDMI Female port/1 x CAT6

- Power Supply                       DC 5V~12V
- ESD Protection Human Body Model:    ± 8kV (air-gap discharge)
　　　　　　　　　　　　　± 4kV (contact discharge)
- Dimensions (mm)                   65(W) X 100 (D) X 25 (H)
- Operating Temperature               0˚C ~ 40˚C / 32˚F ~ 104˚F
- Storage Temperature                -20˚C ~ 60˚C / -4˚F ~ 140˚F
- Relative Humidity                   20~90% RH (non-condensing)

Operation controls and Functions
- HDMI Extender Transmitter
- Power: Plug the 5V~12VDC power supply into the unit and connect the adapter to AC wall outlet.
- RESET KEY: Factory default key.
- IR OUT: Remote control signal transmit，connect the IR transmit cable with HDMI
- Extender Transmitter; The IR transmit cable face to the IR receiver of  the Source．
- HDMI：HDMI Input port.
- CAT6 OUT: Connect the CAT 5E/6 output of the Transmitter with the CAT 5E/6 input of the HDMI over single CAT6 receiver.
- LED indicator: When the DC power on, the indicator will be light.

HDMI Extender Receiver
- Power: Plug the 5V~12VDC power supply into the unit and connect the adapter to AC wall outlet.
- RESET KEY: Factory default key
- IR IN: Remote control signal Receive，connect the IR receive cable with HDMI Extender Receiver．
- HDMI Out: HDMI output port.
- CAT6 IN: Connect the CAT6 in of the receiver with the CAT6 input of the HDMI over single CAT6 transmitter.
- LED indicator: When the DC power on, the indicator will be light.
