Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $214.43 | $210.06 | $203.49 | $194.74 | Contact US |

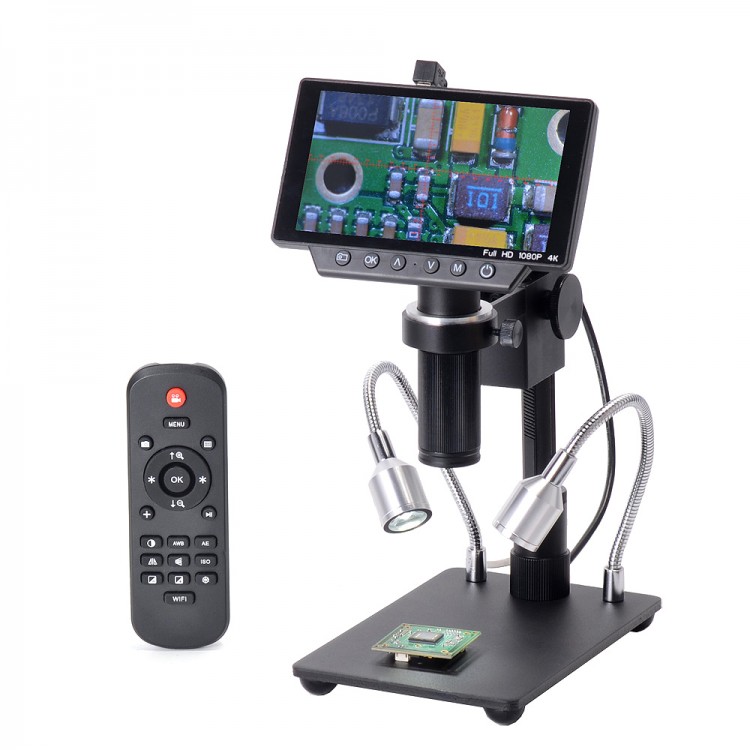

HDMI Industrial Microscope Camera 16MP 230X 4K 1080P 60FPS HDMI USB TF Card Output w/ 5.0" Screen
Features:
- HD 16 million pixels
- Built-in crosshair set (adjustable)
- The highest resolution is up to 4K (Can be connected to a monitor)
- High-speed 60 frames without jams and afterimages
- PC supports measurement function
- Adopted image sensor 1/2.3
- Support WIFi connection
- Three Output Ways: through HDMI, USB, and TF Card ports
- Adjustable Aluminum alloy stand maximizes your working space
- Adjustable microscope monitor enables user-friendly observation
- Dimmable LED lights empowers your jobs
- Wireless remote control
Specifications:
- Model: HY-1070
- Image Sensor: 16MP CMOS 1/2.3 HD Sensor
- Video Output : 4K/2K/1080P Full HD (HDMI Output); 1080P (USB Output)
- Video Format : MP4
- Magnification: Standard Magnification 230X
- Photo Resolution: 16M 4608x3456; 14M 4320x3240; 12M 4032x3024; Min. 640x480
- Photo Format: JPEG
- Focus Range: 5cm to 30cm
- Frame Rate: 4K 24@fps; 1080P 60@fps; 720P 120@fps; Max. 240f/s (VGA)
- Video Output Ports: HDMI/USB
- Storage: Support TF Card up to 64G
- PC Systems: Support for Windows XP/7/8/10 systems, including PC measuring software
- Microphone : Support
- PC Support: Microscope supports WIFI connection (The connection range is about 15 meters)
- Power Adapter: 5V/2A
- Stand Size: 17 x 12 x 20cm
Package Included:
- 1 x Microscope Main Unit
- 1 x Stand
- 1 x Power Adapter
- 1 x USB Cable
- 1 x HDMI Cable
- 1 x User Manual
- 1 x Remote Control
Note: TF card and batteries are not included in the package.
