HDMI MHL Audio Extractor Splitter 4K ARC EDID Setting Audio SPDIF R/L Extractor Converter

HDMI MHL Audio Extractor Splitter 4K ARC EDID Setting Audio SPDIF R/L  Extractor Converter

Features:
- One HDMI or one MHL input converter to one HDMI +one SPDIF +one IR audio out
- Output audio support: SPDIF+R/L analog audio output
- Support  Full HD 1080P, Full 3D,4K*2K
- Support ARC Function: Without adding one extra HDMI Cable, it can reverse the audio to the AV Amplifier by HDMI Cable connection with HD TV while the HD TV receives the audio and video content.
- MHL/ HDMI working in dual mode, can reduce the number of ports
- HDMI to achieve the synchronization of audio signal separation. There are ADV/2.0CH / 5.1CH three kinds of audio mode options
- LED indication: when source or sink is working, LED related will go bright.
- No loss of quality
- Installs in minutes
- Need DC5V/1A power supply

Specification:
- HDMI resolution: 24/50/60fs/1080i/720p/576p/576i/480p/480i
- Support video color format: 24bit/deep color 30bit,36bit
- Audio output: L/R+SPDIF
- Maxtransmission bandwidth: 300MHz
- Max baud rate: 9.0Gbps
- Input/Output TMDS signal : 0.5~1.5Volts p-p
- Input/Output DDC signal: 5Volts p-p (TTL)
- Input cable distance: ≤10m AWG26 HDMI standard cable
- Output cable distance: ≤15 AWG26 HDMI standard cable
- Max working current: 500mA
- Power adapter format: Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
- Operating Temperature range:  (-10 to +55℃)
- Storage Temperature range:  -20 to +60℃
- Operating Humidity range: 10 to 90%RH (No Condensation)
- Storage Humidity range: 5 to 95%RH (No Condensation)
- Dimension (L x W x H) : 84.5X61.8X21(mm)
- Weight: 135g

Packing Content:

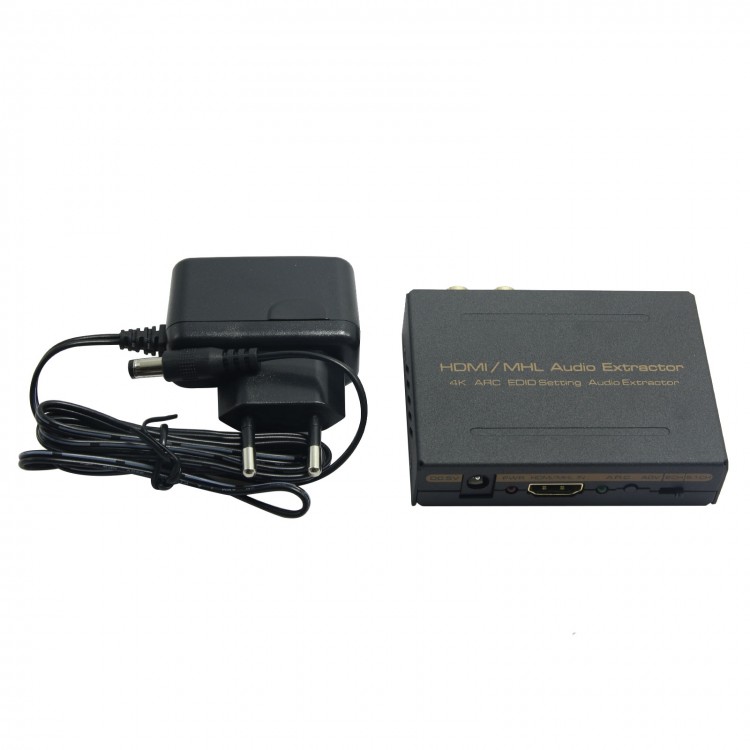

- 1 x HDMI/ MHL Audio Extractor
- 1 x Manual
- 1 x Power adapter
