HDMI/MHL Digital Interface Separate Extract Audio I2S/Optic Fiber/Coaxial HDMI To I2S/IIS (Board)

HDMI/MHL Digital Interface Separate Extract Audio I2S/Optic Fiber/Coaxial HDMI To I2S/IIS (Board)

Product Description:
It is used to extract digital audio signals from HDMI signals, supports I2S, optic fiber and coaxial outputs. It connects to decoders to improve sound quality. HDMI also supports MHL dual-mode input, and can also connect to mobile phones with MHL output, supporting 4K, 3D, and CEC functions. When connecting to most devices, no external power supply is needed. When there is lack of electricity of you player, you can use an external power supply (DC 5V).

Version Introduction:
- It is designed with board B.
- HDMI input, HDMI output, coaxial output, optical output, I2S output, HDMI OVER I2S output.

Package Included:

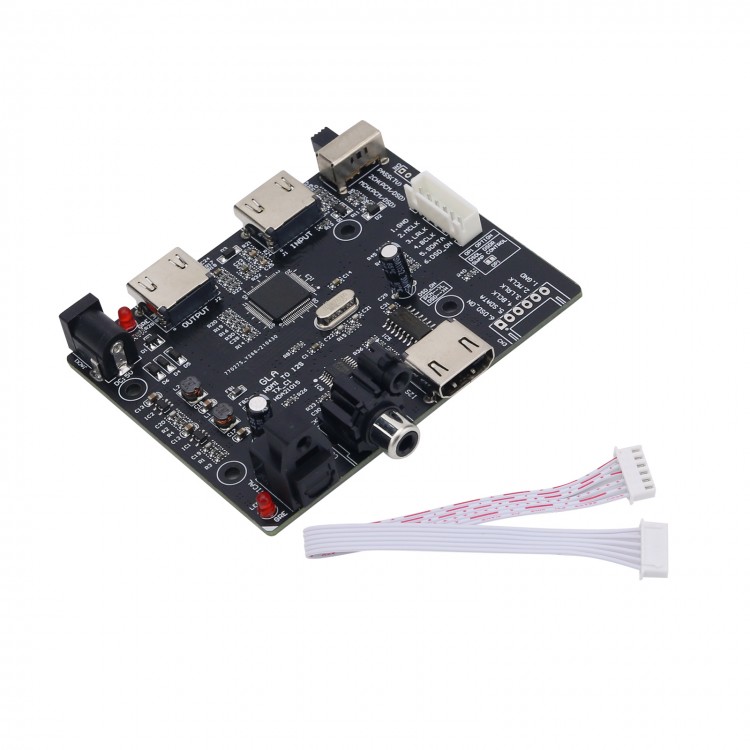

- 1 x Digital Interface

Note:
- The picture of the product is for reference only, and the right to improve the product is reserved. Please refer to the actual product. Thank you for your understanding!

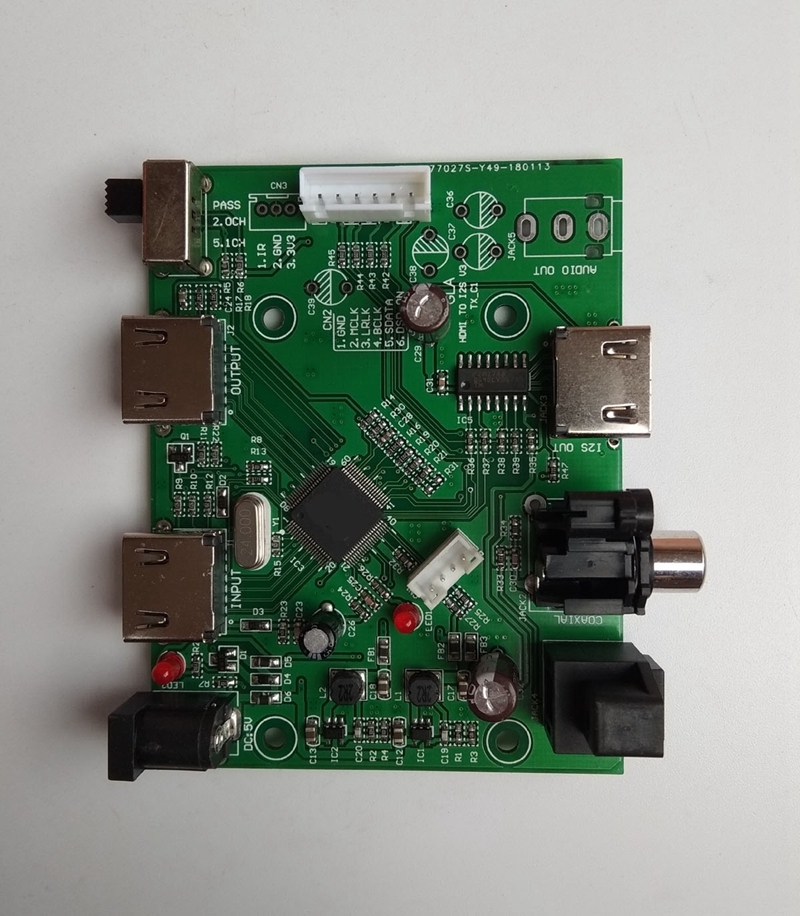

Wiring:
- Designed with an audio processing mode selection button.
- INPUT: Connect to HDMI OUT of player/set-top box/game console and the like.
- OUTPUT: Connect to TV.
- DC:5V: Powered by external DC 5V. When disconnected, it is powered by the power supply of HDMI source.
- I2S output pins connect to the DAC installed inside decoder.
- OP1: DSD left and right channel swap settings.
- I2S OUT (JACK3): I2S output port connects to high-end decoder with I2S input, such as for PS AUDIO.
- COAXIAL (JACK2): Coaxial output port connects to a decoder or amplifier for decoding (supports for DTS and Dolby).
- JACK4: Optic fiber output port connects to a decoder or amplifier for decoding (supports for DTS and Dolby).
