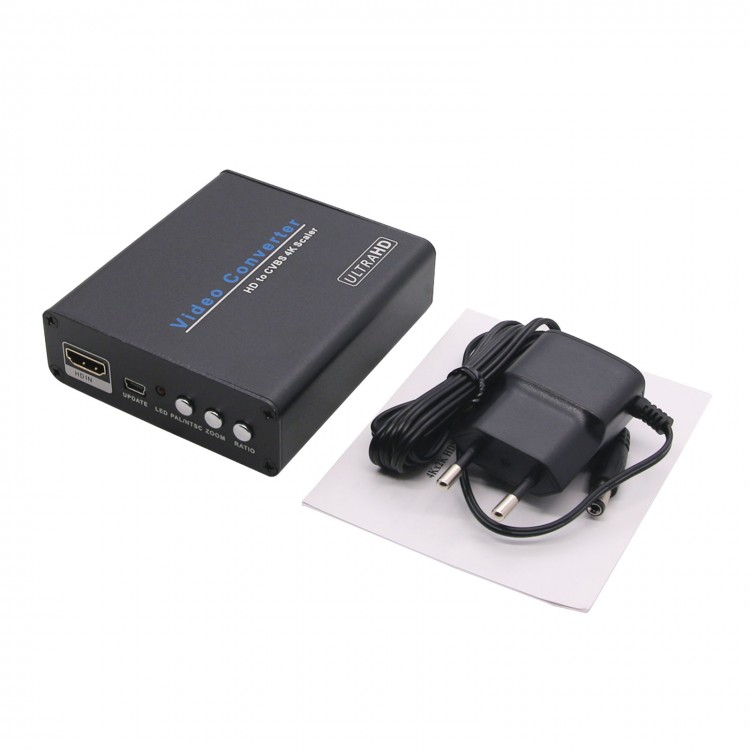

HDMI to AV Converter 4K HDMI to CVBS Converter Scaler for TV Monitor Projector HDV-960
Description:
The 4Kx2K HDMI to AV converter which will convert digital HDMI video and audio signal to composite video signal and the FL / FR stereo audio signal, while support DVI system sideline signals. Help users convert the high quality of the HDMI signal to normal CVBS (standard-definition 480i, 576i,) and analog audio output. So it can play on CRT TV, VHS VCR, DVD recorders, etc.
Features:
- No need to install drivers; portable and flexible to plug and play.
- High quality scaling technology for input resolutions.
- Support NTSC and PAL two standard TV formats output.
- Compatible with HDMI1.4
- Support HDMI input resolution up to 4Kx2k@30Hz.
Specifications:
- Input ports: 1xHDM, 1 x Min-USB
- Output ports: 1xRCA (Yellow, White, Red)
- Dimensions (mm): 93(D) x 84(W) x 28(H)
- Wight (g):155g
- HDMI input resolutions: 480i to 4Kx2K@30Hz.
- CVBS output: PAL,NTSC3.58,NTSC4.43,SECAM,PAL/M,PAL/N standard TV formats
- Operating Temperature: 0°C to 40°C / 32°F to 104°F
- Storage Temperature: -20°C to 60°C / -4°F to 140°F
- Relative Humidity: 20 to 90% RH (Non-condensing)
- Power Consumption (Max): 2W
- ESD Protection: Human Body Model: ± 8kV (air-gap discharge); ± 4kV (contact discharge)
Package Included:
- 1 x HDMI to AV Converter
- 1 x 5V 1A DC Power Adaptor
- 1 x Operation Manual
