HDMI Video Encoder Loop Output H.265 Encoder 1080P 60FPS HDMI To RJ45 Video Card For IPTV XE3LV400
Advantages:
- 1080P 60fps live streaming
- The device itself delays 80-200ms
- HDMI loop output without being encoded
- Video screen can add LOGO, scrolling text
- H.265/H.264/MJPEG video encoding
- Video surveillance connection for for Hikvision & Dahua NVR
- 7*24 hours stable operation
Functions & Features:
- HDMI loop output encoder
- Support for 1080P@60fps HDMI video signal input loop out

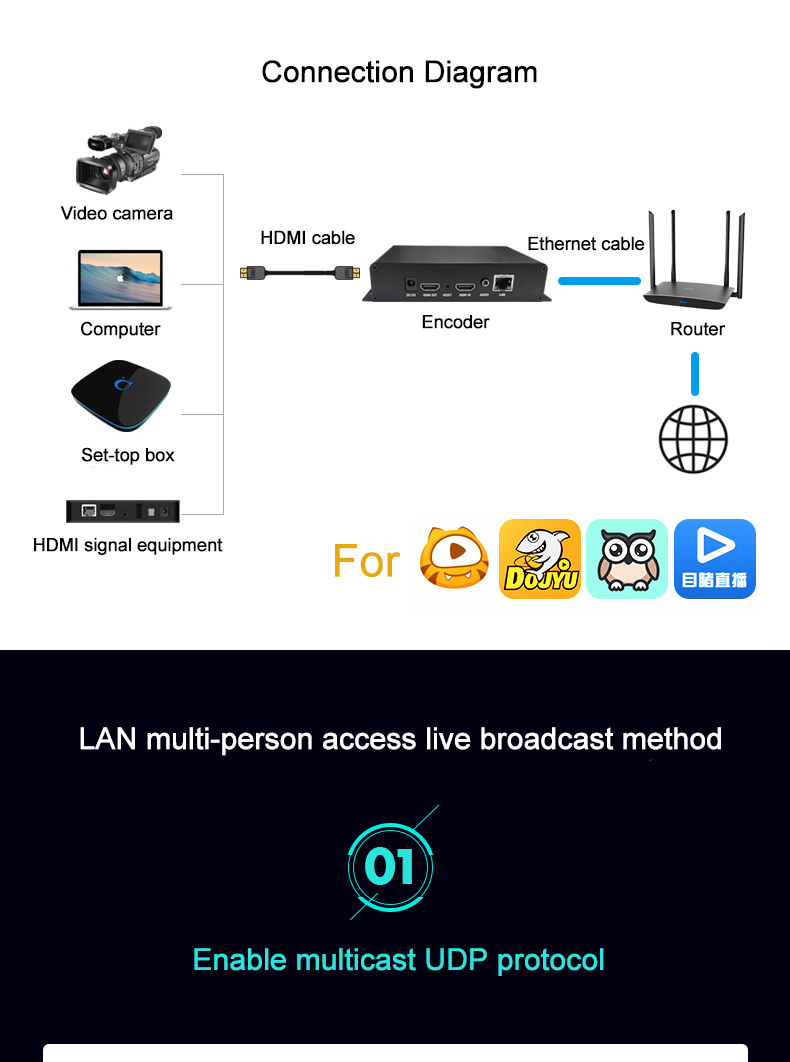

- Support for LAN, WAN live broadcast, NVR recording
- Support for RTMP/RTSP/HTTP/HLS/FLV/RTP/SRT protocols
- 1080P input and output
- Total 4 primary and secondary bit stream output
- Encoding type H.265/H.264
- High speed loop out
- Low latency: Acquisition of private PTE protocol on the desktop of your PC, with a delay of about 80-200ms.
- Hardware acquisition
- 7*24 hours stable working
- For RTMP/RTMPS/SRT protocol messaging to major platforms
Support for INKE LIVE, Changba live, kg.qq.com, YY live, huajiao.com, live.kuaishou.com, panda.tv, Douyu, Huya.com, QQ live. Built-in server for RTMP/SRT: Default streaming address: rtmp://192.168.1.168/live/0
srt://192.168.1.168:9000
- OSD Display: You can add LOGO, time, text, and scroll text in multiple areas of video
Specifications:
- Audio and video input:
- Video input: 1 HDMI

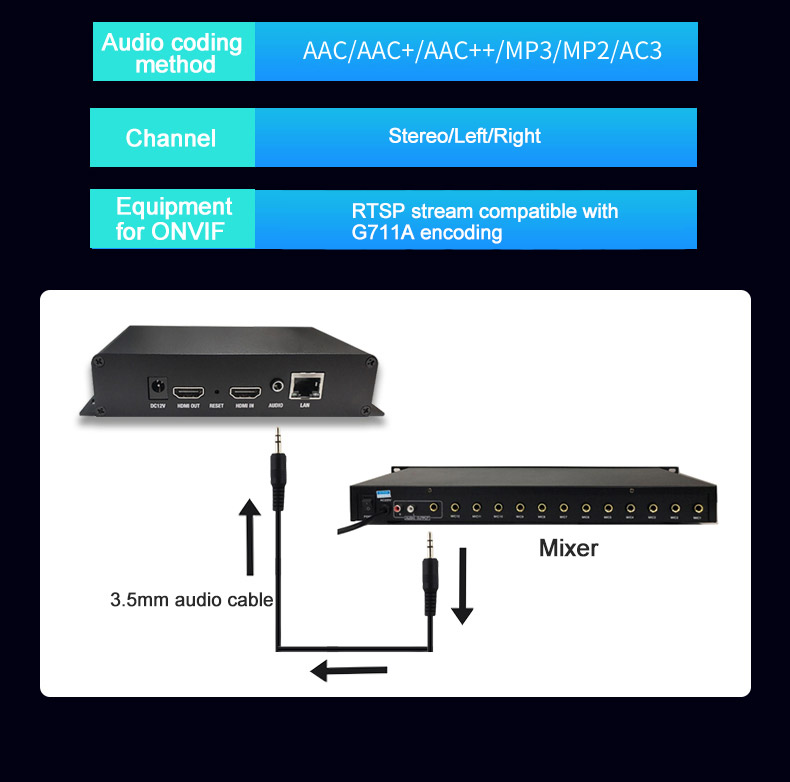

- Audio input: 1 HDMI internal audio, 1 HDMI external audio
Audio and video output
- Video output: 1 HDMI
- Audio output: 1 HDMI built-in audio
Video encoding:
- Encoding type: H.264/H.265 optional
- Encoding frame rate: 5-60 adjustable
- Key frame interval (frame): 5-300 adjustable
- Bit rate (kbit): 32-32000 adjustable
- Resolution after encoding: 1920x1080/1680x1056/1280x720/1024x576/850x480/720x576/720x540/720x480/720x404/704x576/640x480/640x360/608x448/544x480/480x480/480x384/480x360/480x320/480x272/480x270/400x320/400x224/352x480 /352x228/320x256/320x240/320x180/240x180/176x144/ same as input resolution
- H.264 level: baseline profile/main profile/high profile
- Stream control: CBR/VBR optional

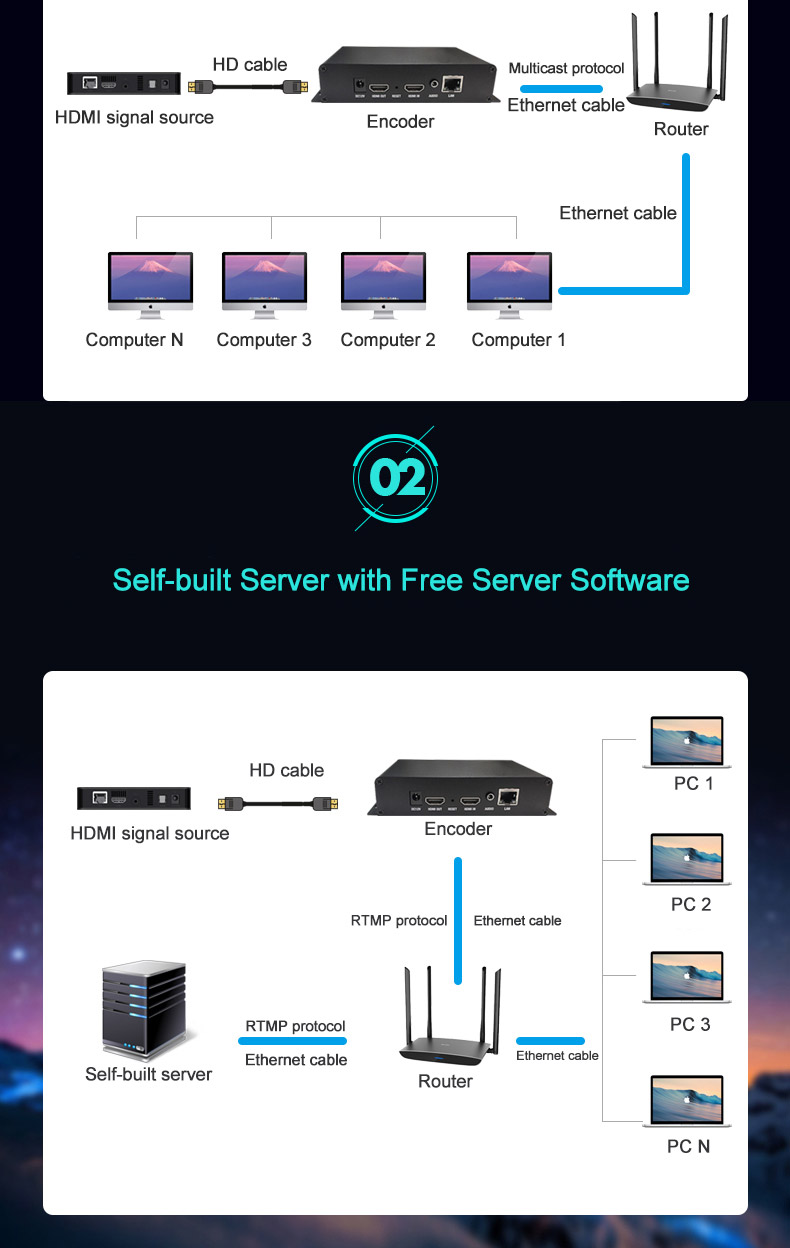

- Streaming: Support for RTMP/ RTSP /HTTP TS/HTTP FLV/HLS/UDP multicast/RTP multicast
Audio encoding:
- Encoding sampling rate: 44100/48000 optional
- Coding method: AAC /AAC+/AAC++/MP3/MP2/ AC3 optional
- Encoding bit rate: AAC: 48000-320000 adjustable/AAC+: 24000-48000 adjustable/AAC++: 12000-32000 adjustable/MP3: 64000-320000 adjustable/MP2: 64000-320000 adjustable/AC3: 40000-640000 available Tune
- Digital volume: -50 to 50 adjustable
- RTSP stream uses G711A encoding: disabled/enabled optional
OSD:
- Transparency: 0-128 adjustable
- Type: Text/Picture/Scrolling Text/Time
- Area: 4 areas available
- X coordinate: 0-1920
- Y coordinate: 0-1080
- LOGO: Can upload 4 LOGO for selection
- Font size: 8-72
- Background color: transparent/white/black
- Font color: RGB color optional
General:
- Network: Gigabit
- Configuration management: configuration management through WEB
- For ONVIF: Support for ONVIF to find and browse videos
- Power supply: 12V/DC, 2A
- Power consumption: 4W
- Working temperature: -20℃+60℃
- Operating humidity: <90%, no condensation
- Product Size: 15.5 x 10 x 3.2cm
Package Included:

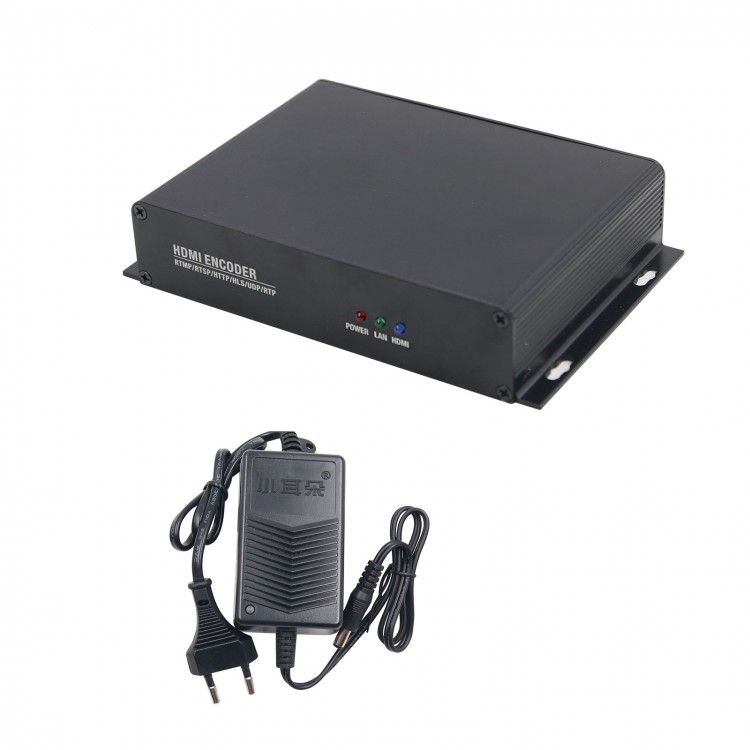

- 1 x Set of Video Encoder
Note: Other items pictured are not included.
