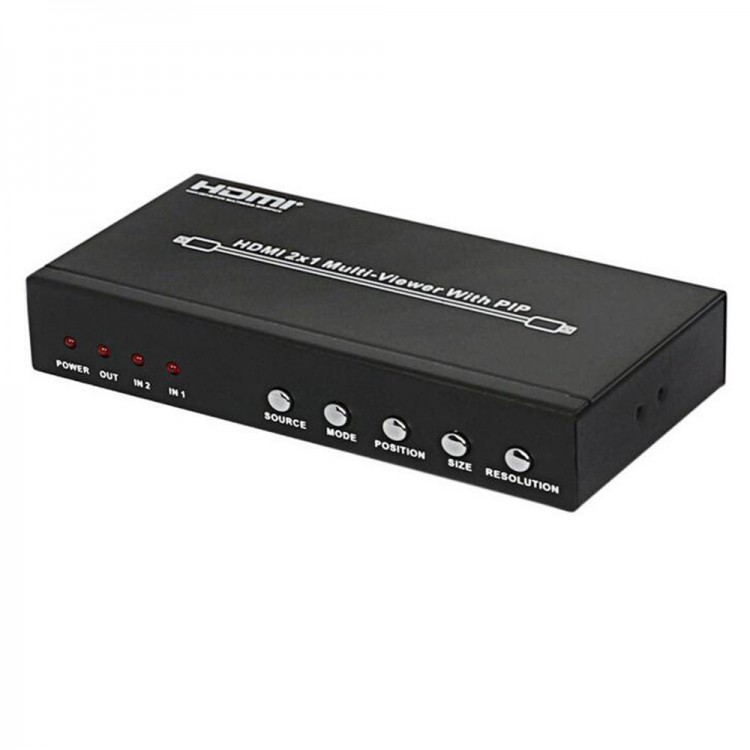

HDS-821P 2x1 HDMI Splitter Video Audio Division Multi-Viewer w/PIP Two Input One output HDMI Port for PC DVD Player to HDTV

HDS-821P 2x1 HDMI Splitter Video Audio Division Multi-Viewer w/PIP Two Input One output HDMI Port for PC DVD Player to HDTV

Description:
HDS-821P is a high performance 2X 1 HDMI Splitter Multi-Viewer with PIP function. It supports two high definition input source displaying on one screen. As a Multi-Viewer, the  2 X 1 HDMI Splitter can display on one screen in 4 modes. It will bring you much fun and convenience.

Features:
- Support HDMI1.3a & HDCP1.2 version.
- Support multiple input displayed on the same screen (Two Input HDMI source to one HDMI output source), and 4 display modes.
- Support up to 1080p High Definition resolution.
- Support Scaler UP & Scaler Down function and PIP functions.
- Support multi-resolution output such as, 1080p,1080i,720p,1024 * 768,1360 * 768.
- Support multi-format audio, such as LPCM / AC-3 / DTS, etc.

Technical Parameters:
- Video Bandwidth: 225MHz (6.75Gbps)
- Input Ports: 2 * HDMI (Female type)
- Output Ports: 1 * HDMI (Female type),
- Audio output: PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1
- Input Resolutions: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz,
  1080i @50/60Hz,1080p@24/30/50/60Hz, 800 * 600@60, 1024 * 768@60, 1280 * 720@60, 1920 * 1080@60.
- Output Resolution: 1080p,1080i,720p,1024 * 768,1360 * 768.
- ESD Protection: Human Body model:±8 kV (air-gap discharge), ±4 kV (contact discharge)
- Power Supply: DC 5V/1A
- Chassis Material: Metal
- Power Consumption (Max): 10W
- Operating Temperature: 0 °C~40 °C/ 32 °F~104 °F
- Storage Temperature: −20 °C ~ 60 °C/−4 °F ~140 °F
- Relative Humidity: 20~90 % RH (non-condensing)
- Color: Black
- Main Item Size: 14.5 * 7.5 * 2.5cm / 5.7 * 2.95 * 0.98in
- Main Item Weight: 283g / 9.8oz

Package List:
- 1 * HDMI 2x1 Multi-Viewer Splitter
- 1 * Power Adapter
- 1 * English User Manual
