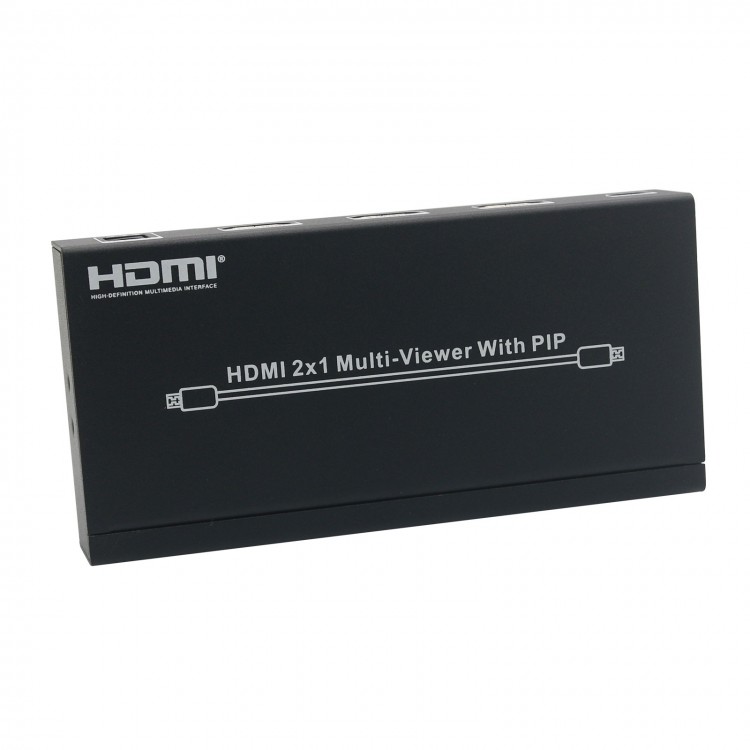

HDS-821P HDMI 2x1 Video Audio Video Division Multi-Viewer w/PIP Splitter for PC DVD Player to HDTV

HDS-821P HDMI 2x1 Video Audio Video Division Multi-Viewer w/PIP Splitter for PC DVD Player to HDTV

Product instructions: Click here

Introduction:
This product is a high performance 2 by 1 Multi-Viewer. It supports two High definition input source display on one screen. As a Multi-Viewer, it can display on one screen in 4 modes.

Features:
- Compliant with HDMI 1.3a,HDCP 1.2；
- Supports multiplexed HDMI 2-input and 1-output and 4 display modes；
- Supports up to 1080p High Definition resolution；
- Support scaler up, scaler down function；
- Support multi output resolution；
- Support digital audio format LPCM/AC3/DTS

Specifications:
- Video Bandwidth: 225MHz[6.75Gbps]
- Input Ports: 2 × HDMI (Female type)
- Output Ports: 1 × HDMI (Female type),
- Audio output: PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1
- Input Resolution:
  480i60Hz,480p60Hz,576i50Hz,576p50Hz,720p50/60Hz,
  1080i50/60Hz,1080p24/30/50/60Hz,800x600@60,
  1024x768@60,1280x720@60,1920x1080@60;
- Output Resolution: 1080p,1080i,720p,1024x768,1360x768
- ESD Protectio: Human Body model:    ±8 kV (air-gap discharge);±4 kV (contact discharge)
- Power Supply: 5V/1A DC (US/EU standards, CE/FCC/UL certified)
- Dimensions: 70 mm (W)×140mm (D)×25 mm (H)
- Weight: 300 g
- Chassis Material: Metal
- Silkscreen Color: Black
- Operating Temperature: 0 ~40 deg C/ 32  F~104 F
- Storage Temperature: −20~ 60 degree C/−4 F ~140 F
- Relative Humidity    : 20~90 % RH (non-condensing)
- Power Consumption (Max) : 10W

Package list:
- 1 x HDMI 2x1 Multi-Viewer
- 1 x 5V1A DC Power adapter
- 1 x Operation Manual
