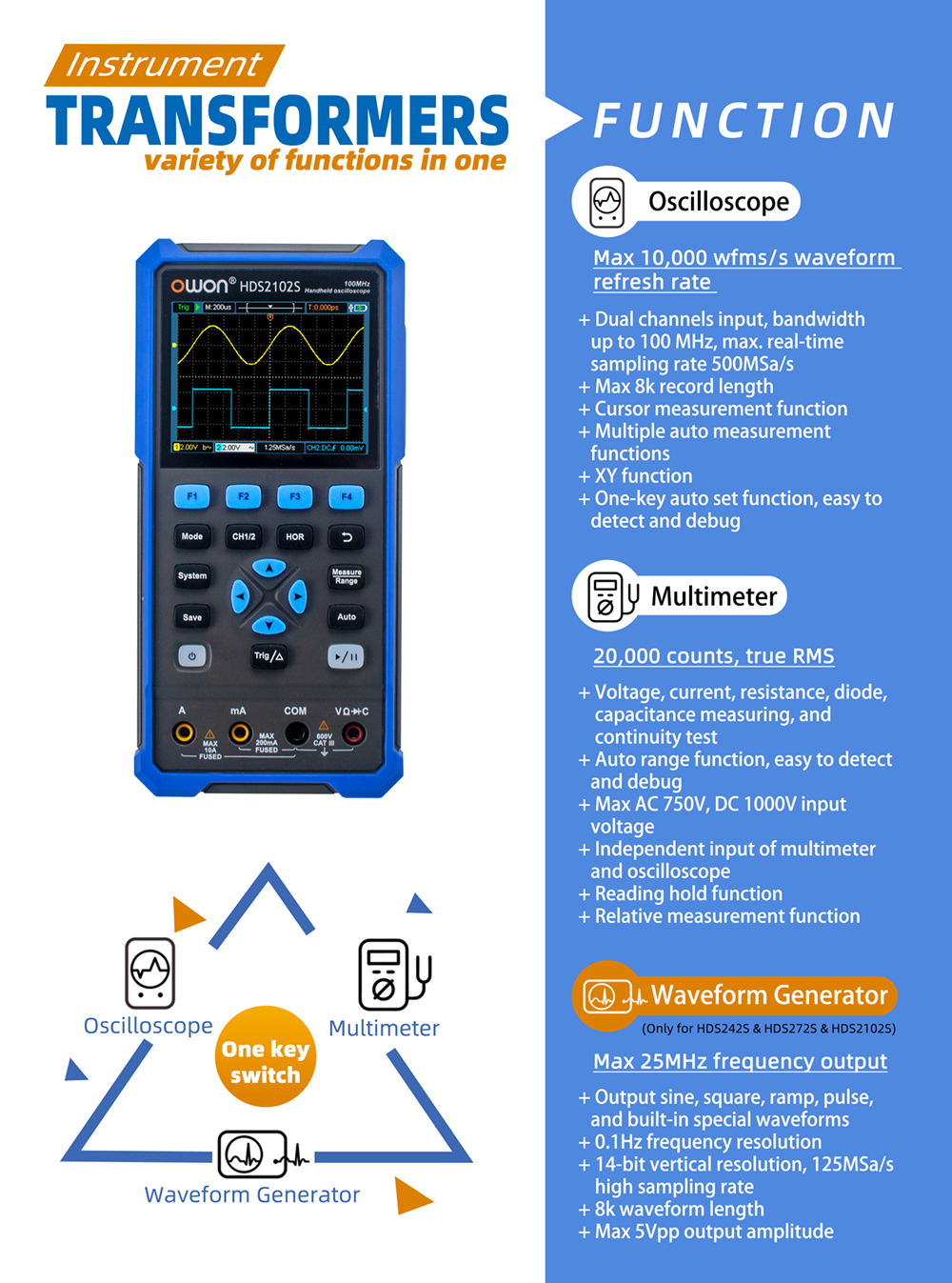

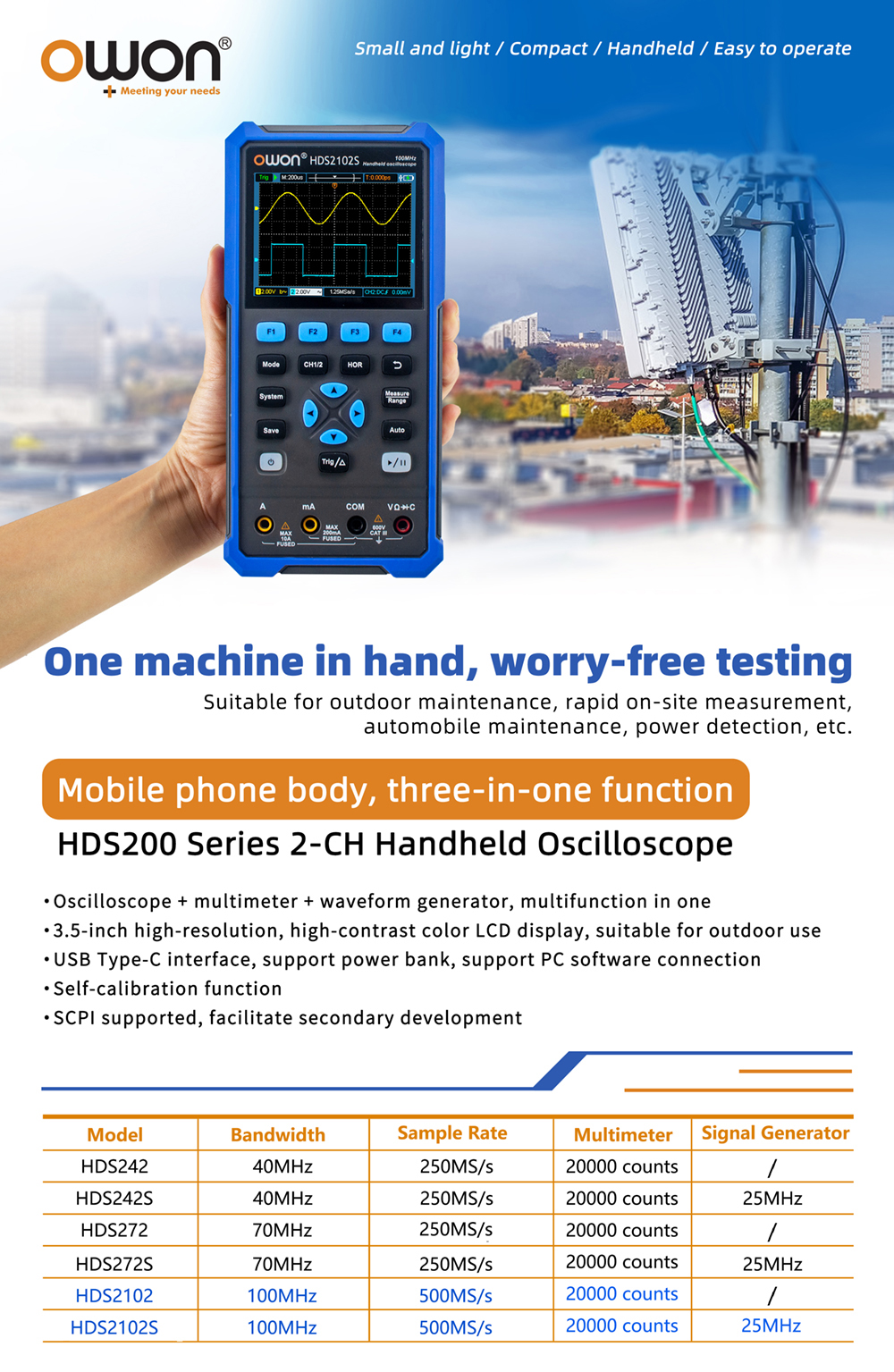

HDS2102S 3-In-1 100MHz Handheld Oscilloscope 500MSa/s Sampling Rate + Multimeter + Signal Generator

HDS2102S 3-In-1 100MHz Handheld Oscilloscope 500MSa/s Sampling Rate + Multimeter + Signal Generator

Specifications:
Oscilloscope:
- Model: HDS2102S
- Bandwidth: 100MHz
- Channels: 2-CH Oscilloscope + 1-CH Signal Generator
- Sample Rate: 500MSa/s

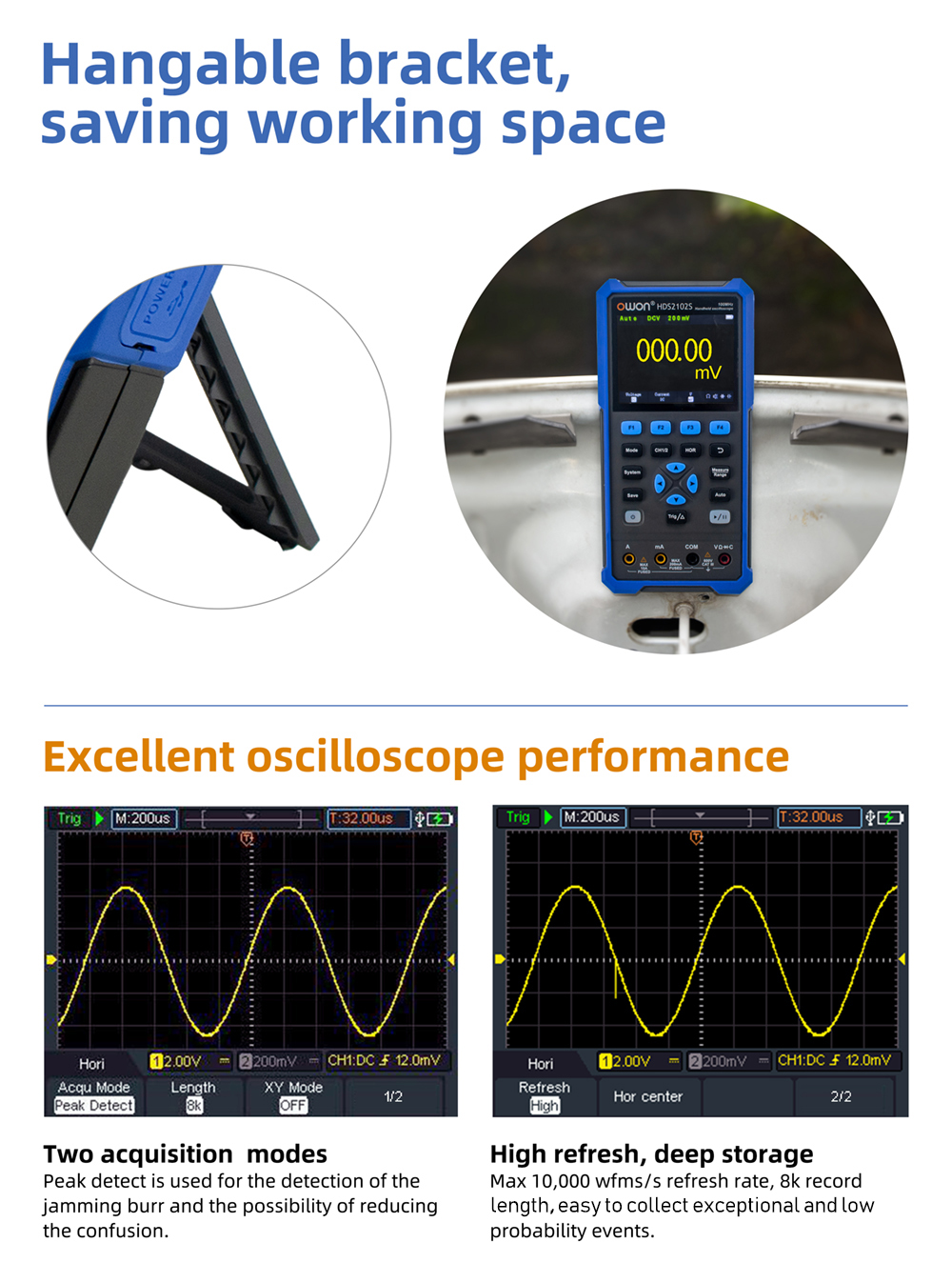

- Sampling modes: Normal and peak sampling
- Record Length: 8K

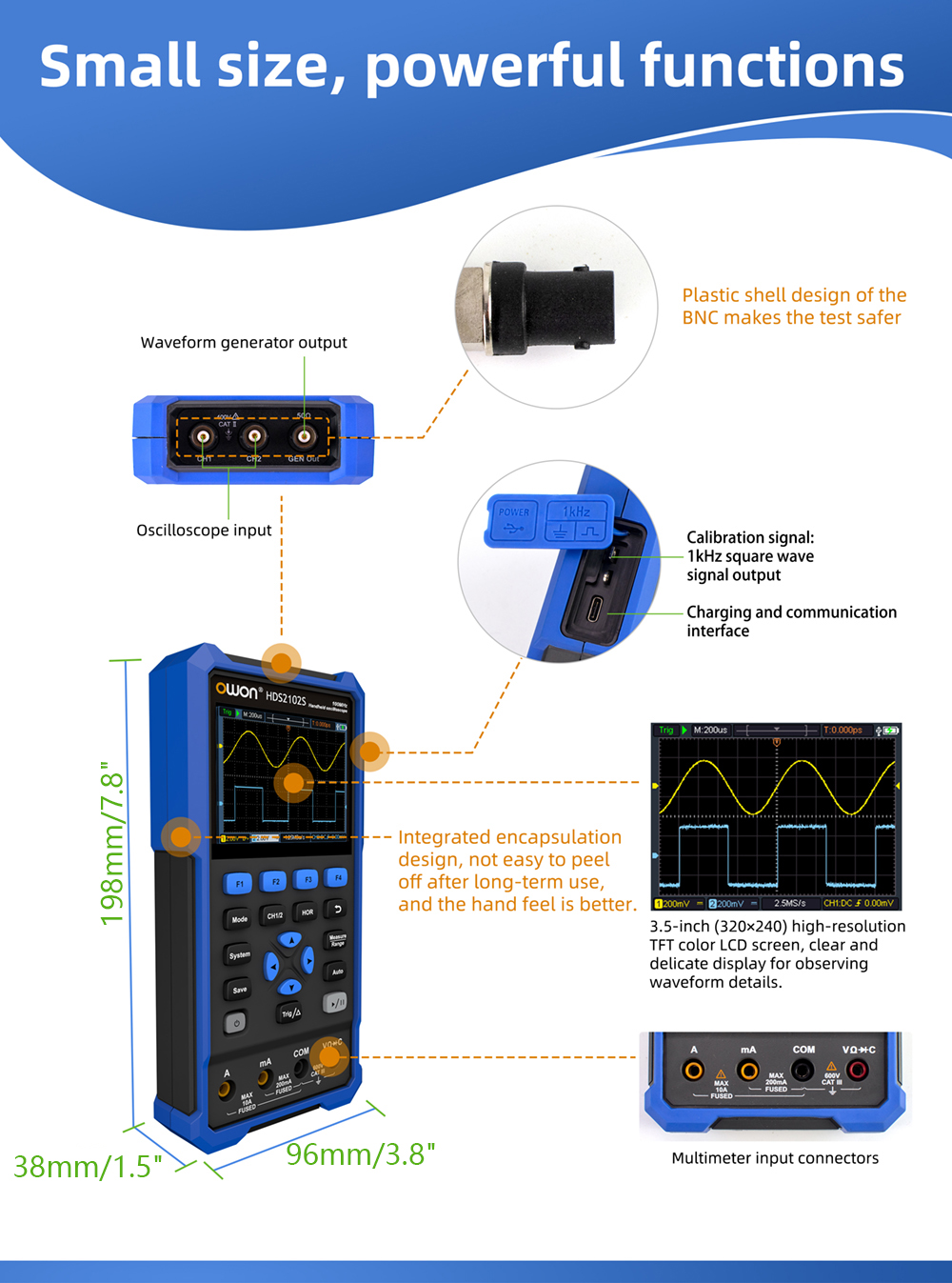

- Display: 3.5" LCD
- Waveform Refresh Rate: 10000wfrms/s
- Input Coupling: DC, AC, and Ground
- Input Impedance: 1MΩ±2%, in parallel with 16pF±10pF
- Probe Attenuation Factors: 1X, 10X, 100X, and 1000X
- Max. input Voltage: 400V (DC+AC, PK-PK, 1MΩ input impedance) (10:1 probe attenuation)
- Bandwidth Limit (typical): 20MHz
- Horizontal Scale: 2ns/div-1000s/div, step by 1-2-5
- Vertical Sensitivity: 10mV/div-10V/div
- Vertical Resolution: 8 bit
- Low Frequency Response (-3db): ≤ 10Hz at BNC
- Rise time (typical on BNC): ≤ 3.5ns
- Trigger Type: Edge trigger
- Trigger mode: automatic, normal, and single time
- Trigger level: ±4 divisions from center of display

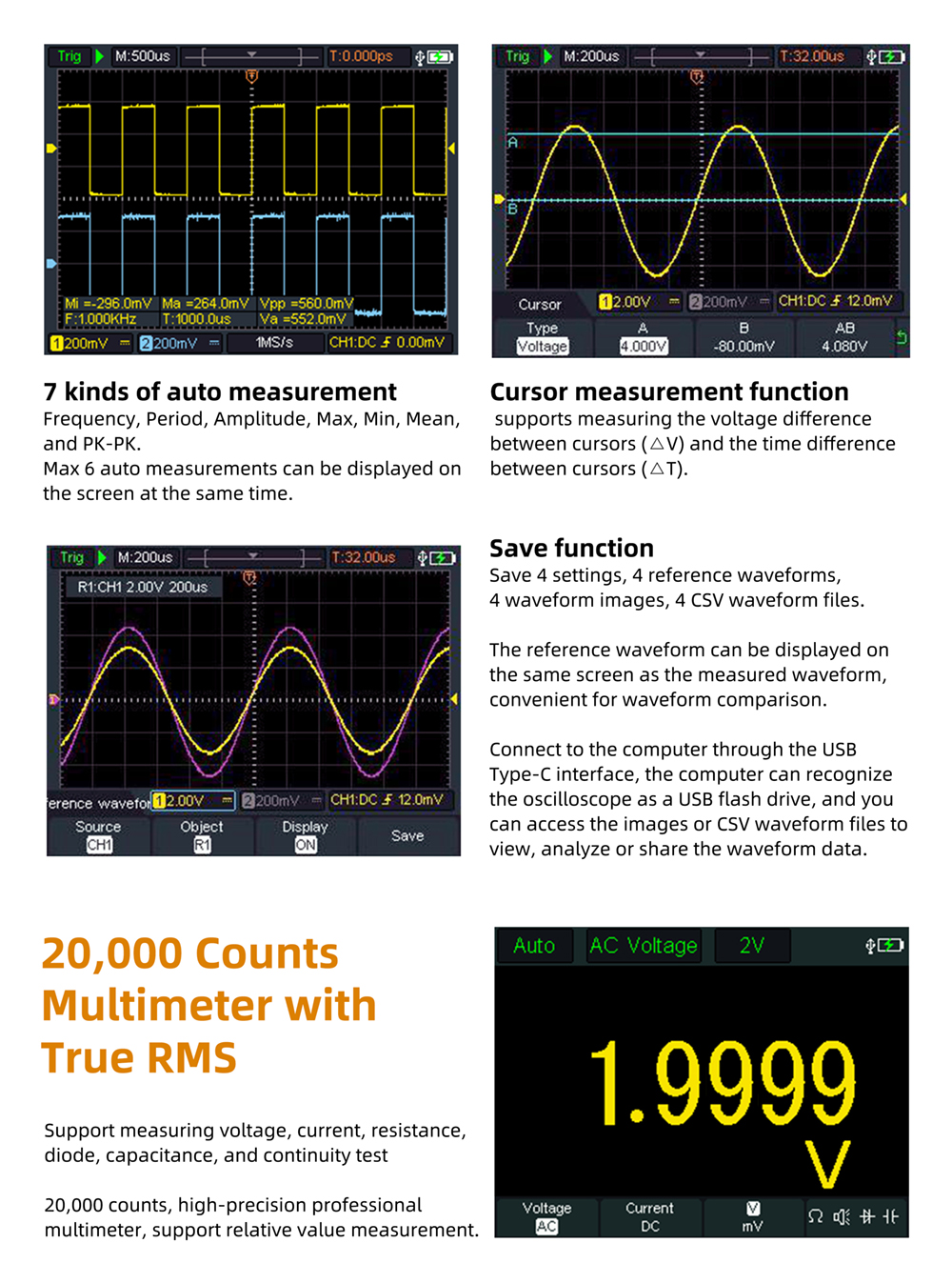

- Automatic Measurements: Frequency, Period, Amplitude, Max, Min, Mean, and Peak-Peak
- Cursor measurement: voltage difference between cursors (ΔV) and time difference between cursors (ΔT)

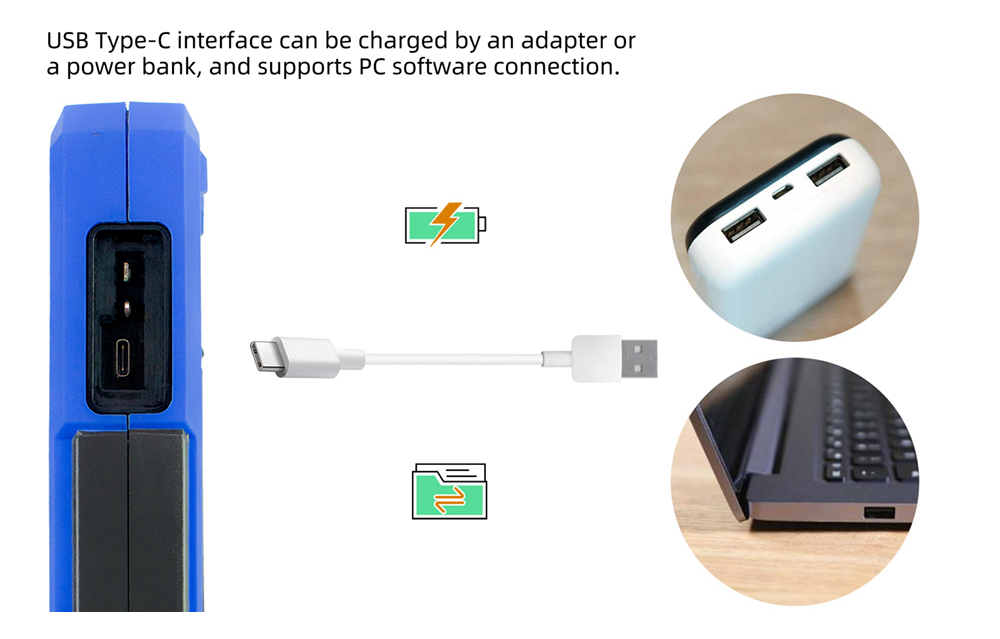

- Communication interface: USB TYPE-C
- Power supply: power adapter

Multimeter:
- Digital Display: 4 ½ digits (maximum displayed number 20000)
- Testing Mode: Voltage, Current, Resistance, Capacitance, Diode , and Continuity test
- Input Impedance: 10MΩ
- Diode: 0-2V
- Frequency response: 40-1000Hz

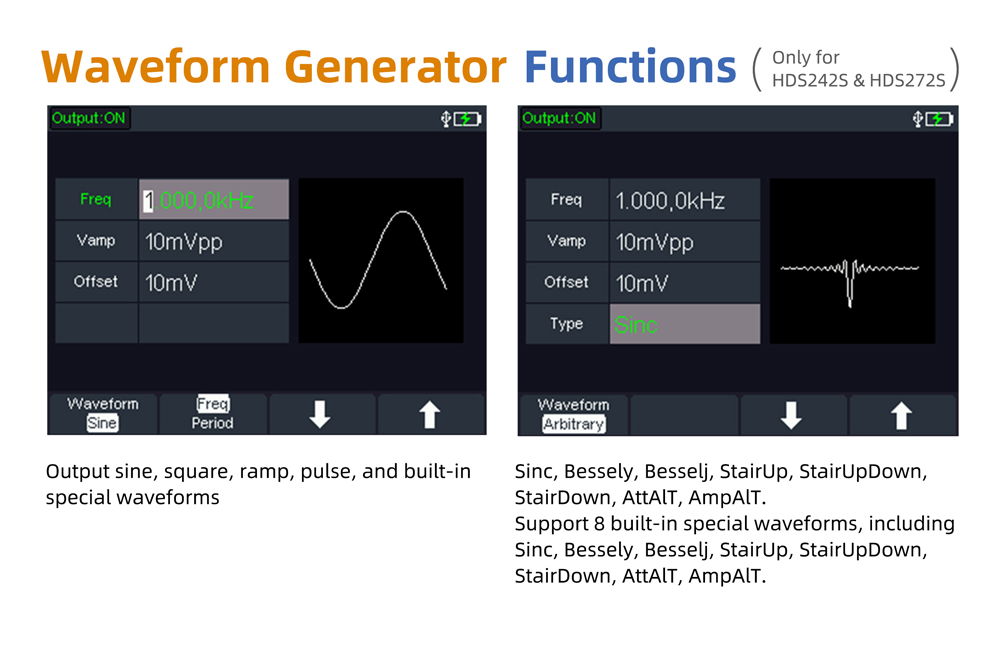

Signal Generator:
- Waveform output frequency: Sine wave: 0.1Hz~25MHz; Square wave: 0.1Hz~5MHz; Sawtooth wave: 0.1Hz~1MHz; Pulse wave: 0.1Hz~5MHz; Arbitrary wave: 0.1Hz~5MHz
- Sampling Rate: 125MS/s
- Channel: 1-CH
- Output amplitude: 20mVpp-5Vpp (high impedance), 10mVpp-2.5Vpp (50Ω)
- Waveform length: 8K
- Vertical Resolution: 14bits
- Output Impedance: 50Ω

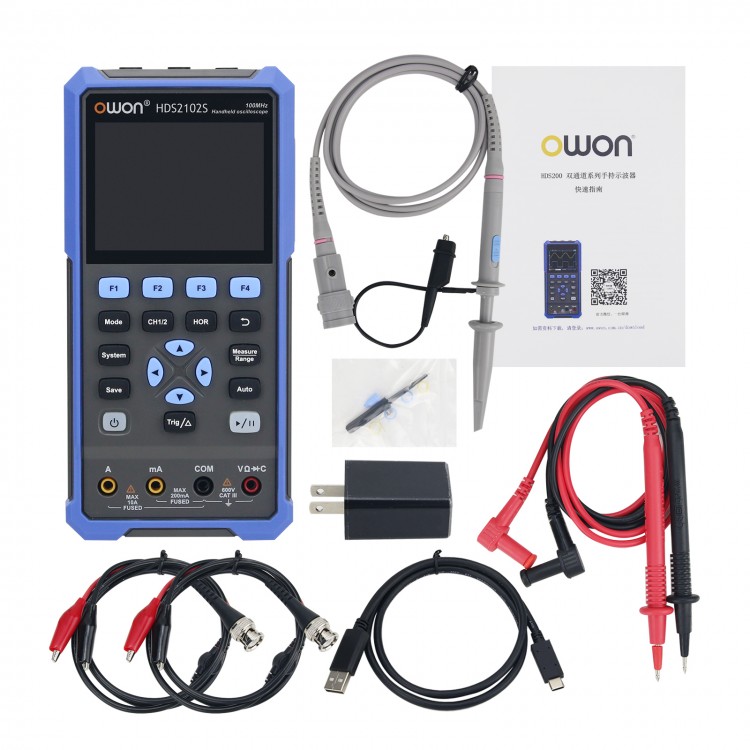

Package Included:
- 1 x HDS2102S Main Unit
- 1 x Carry Bag
- 1 x Probe
- 1 x Power Adapter
- 1 x Calibration Pen
- 1 x USB Cable
- 2 x Multimeter Leads
- 1 x Instructions
- 1 x BNC to Alligator Clip

Note:
- Batteries are not included. Two 18650 lithium batteries are recommended.
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
