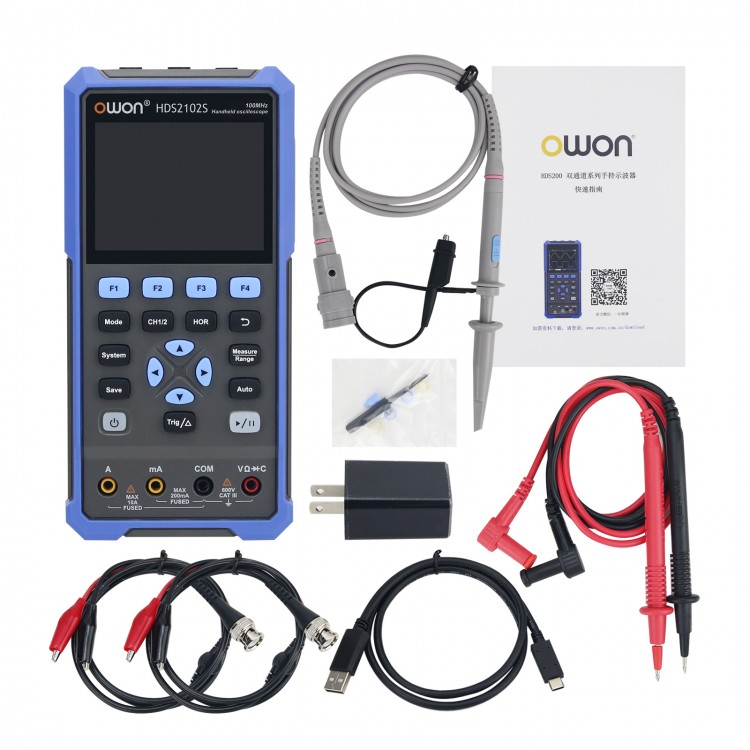

HDS2102S Two Channel Digital Oscilloscope for OWON HDS200 Series High Performance Handled Digital Oscilloscope
Features:
- Oscilloscope + multimeter + waveform generator, multi-function in one
- 3.5-inch high-resolution, high-contrast color LCD display, suitable for outdoor use
- 18650 lithium battery, can work continuously for 3-6 hours
- USB Type-C interface, support power bank, support PC software connection
- Self-calibration function
- SCPI supported, facilitate secondary development
Specification:
For Oscilloscope:
- Model: HDS2102S
- Bandwidth: 100MHz
- Channels: 2-CH Oscilloscope + 1-CH Generator
- Sample rate: 500MSa/s
- Acquisition Model: Normal, Peak detect
- Record Length: 8K
- Display: 3.5-inch LCD
- Waveform Refresh Rate: 10000 wfrms/s
- Input Coupling: DC, AC, and Ground
- Input Impedance: 1 M Ω±2%, in parallel with 16pF±10pF
- Probe Attenuation Factors: 1X, 10X, 100X, 1000X, 10000X
- Max.input Voltage: 400V (DC+AC, PK-PK,1M ohm input impedance) (10:1 probe attenuation)
- Bandwidth Limit (typical): 20MHz
- Horizontal Scale: 2ns/div - 1000s/div, step by 1-2-5
- Vertical Sensitivity: 10mV/div - 10V/div
- Vertical Resolution: 8 bits
- Trigger Type: Edge
- Trigger Modes: Auto, Normal, Single
- Automatic Measurement: Frequency, Period, Amplitude, Max, Min, Mean, PK-PK
- Cursor Measurement: ΔV, ΔT, ΔT&ΔV between cursors
- Communication Interface: USB Type-C
For Multimeter:
- Max. Resolution: 20000 counts
- Testing Mode: Voltage, Current, Resistance, Capacitance, Diode, and Continuity test
- Input Impedance: 10M ohm
- Max Input Voltage: AC 750V, DC 1000V
- Max Input Current: DC 10A, AC 10A
- Diode: 0-2V
For Waveform Generator:
- Frequency Output: Sine: 0.1Hz~25MHz
Square: 0.1Hz~5MHz
Ramp: 0.1Hz~1MHz
Pulse: 0.1Hz~5MHz
Arbitrary: 0.1Hz~5MHz
- Sampling Rate: 125MSa/s
- Channel: 1-CH
- Amplitude Range (high impedance): 20mVpp-5 Vpp
- Waveform Length: 8K
- Vertical Resolution: 14bits
- Output Impedance: 50ohm
Package Included:
- 1 x Host
- 1 x USB Cable
- 1 x Probe Adjust
- 1 x Multimeter Lead
- 1 x Soft Bag
- 1 x Probe
- 1 x BNC to Alligator Clip
- 1 x Quick Guide
