HDS272S 70MHz Handheld Multifunctional Digital Oscilloscope 3.5-inch High Resolution LCD Display

HDS272S 70MHz Handheld Multifunctional Digital Oscilloscope 3.5-inch High Resolution LCD Display

Features:
- Oscilloscope + multimeter + waveform generator, multi-function in one
- 3.5-inch high resolution
- 18650 lithium battery, which can work continuously for 3 - 6 hours
- USB Type-C interface, support power bank, support PC software connection
- Self-calibration function
- SCPI supported, facilitate secondary development

Oscilloscope Specification:
- Bandwidth: 70MHz
- Channels: 2-CH Oscilloscope + 1-CH Generator
- Sample rate: 250MSa/s
- Acquisition model: normal, peak detect
- Record length: 8K
- Display: 3.5-inch LCD
- Waveform refresh rate: 10,000wfrms/s
- Input coupling: DC, AC, and Ground
- Input impedance: 1Mohm±2%, in parallel with 16pF±10pF
- Probe attenuation factors: 1X, 10X, 100X, 1000X, 10000X
- Max. Input voltage: 400V (DC + AC, PK - PK, 1Mohm input impedance) (10:1 probe attenuation)
- Bandwidth limit (typical): 20MHz
- Horizontal scale: 5ns/div - 1000s/div, step by 1 - 2 - 5
- Vertical sensitivity: 10mV/div - 10V/div
- Vertical resolution: 8 bits
- Trigger type: Edge
- Trigger modes: Auto, normal, single
- Automatic measurement: Frequency, period, amplitude, max, min, mean, PK - PK
- Cursor measurement: ΔV, ΔT, ΔT &ΔV between cursors
- Communication interface: USB Type-C

Multimeter Specification:
- Max resolution: 20,000 counts
- Testing mode: Voltage, current, resistance, capacitance, diode, and continuity test
- Input impedance: 10Mohm
- Max input voltage: AC 750V, DC 1000V
- Max input current: DC 10A, AC 10A
- Diode: 0 - 2V

Waveform Generator Specification:
- Frequency output:
  Sine: 0.1Hz - 25MHz
  Square: 0.1Hz - 5MHz
  Ramp: 0.1Hz - 1MHz
  Pulse: 0.1Hz - 5MHz
  Arbitrary: 0.1Hz - 5MHz
- Sampling rate: 125MSa/s
- Channel: 1-CH
- Amplitude range (high impedance): 20mVpp - 5Vpp
- Waveform length: 8K
- Vertical resolution: 14bits
- Output impedance: 50ohm

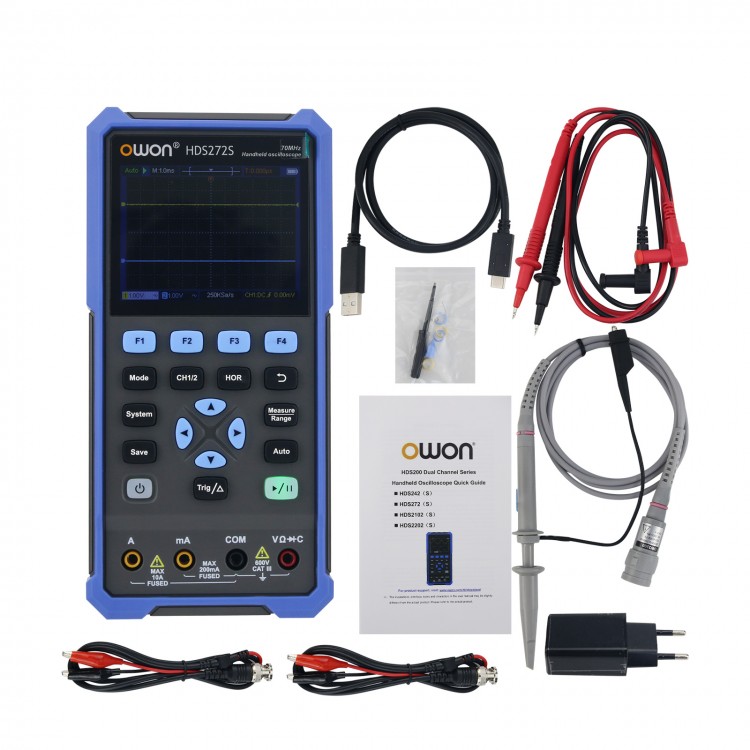

Package Included:
- 1 x Host
- 1 x Manual
- 1 x USB Cable
- 1 x Probe Adjust
- 1 x Multimeter Lead
- 1 x Soft Bag
- 1 x Probe
- 1 x BNC to Alligator Clip
