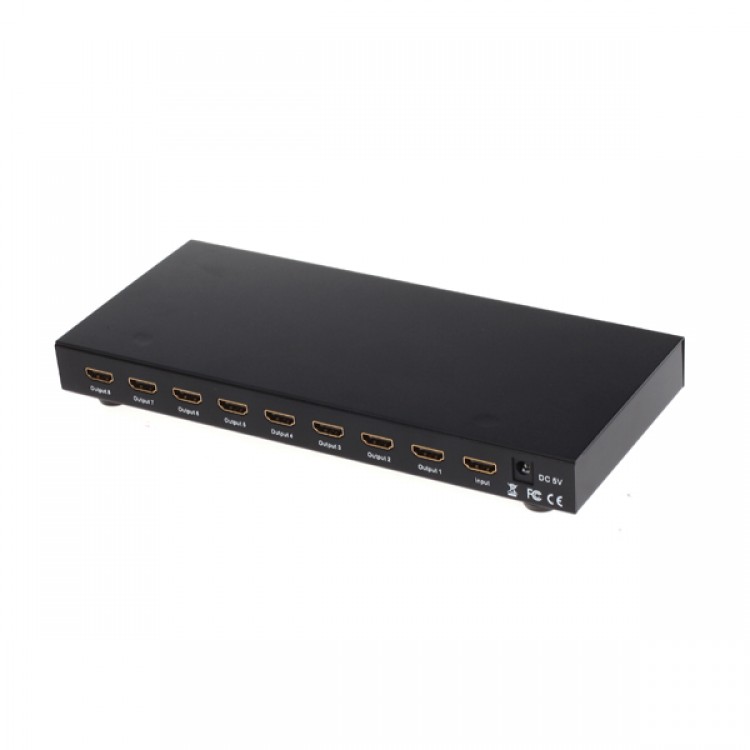

HDV-818 HDMI Splitter 1 x 8 Distributes1 HDMI Source to 8 HDMI Displays

HDV-818 HDMI Splitter 1 x 8 Distributes1 HDMI Source to 8 HDMI Displays

Introduction:
- 1×8 HDMI splitter distributes1 HDMI source to 8 HDMI displays simultaneously. It offers HD video solution for super market, shopping Mall, HDTV/STB/DVD/Projector /DVR factory, data control center, information distribution, conference room presentation, education and training, corporation showroom, luxurious house, etc.

Specifications:
- Input Video Signal    0.5-1.0voltsp-p
- Input DDC Signal    5voltsp-p（TTL)
- Max Single Link Range    1920×1200,1080P
- HDMI    480i/576i/480p/576p/720p/1080i/1080P
- DVI    480p/576i/576p/720i/720p/1080i/1080p
- HDMI Version    HDMI1.3
- Bandwidth    Upto225MHz
- EDID Duration    12seconds
- Power supply    DC 5V / 3A

Connection and operation:
- Connect HDMI source and displays into the Splitter.
*please refer to the Connection Image.
- Connect the DC 5V/2A power supply into the splitter. Make sure you can not connect a power supply with voltage higher than 5V, or the splitter may get damaged.
- Turn on the power switch.
- When all input and outputs are connected and turned on, the corresponding LED will light.
*Attention: In order to protect the splitter and your devices, please don't turn on the power switch of the splitter before input source and output displays are attached in, make sure the
splitter is powered off before you insert and extract HDMI cables, and please insert and extract HDMI cables gently.

Interface specification:
- Power switch
- HDMI input LED
- HDMI output LED
- HDMI output
- HDMI input
- Power Supply Socket

Box contents:
- Item    Qty    Remark
- 1×8 HDMI splitter    1pcs
- Power supply    1pcs    DC 5V@3A
- User Manual    1pcs    English

FAQ:
- The splitter doesn’t appear to be functioning.
- Check if the LED lights, the power supply is connected and the power switch is turned on. Make sure all cables are well connected, and in good condition. You’re encouraged to try different cables on the splitter. Make sure the system of connecting the input source to the displays directly works well.
- The LED doesn’t light.
Make sure you use the accessory power supply of the splitter. Power supply connected with voltage higher than 5V may damage the splitter.
- If the maximum resolution of the four displays is not the same, what resolution will be displayed?
In order to make sure each display works normally, the splitter will display at the lowest resolution.
