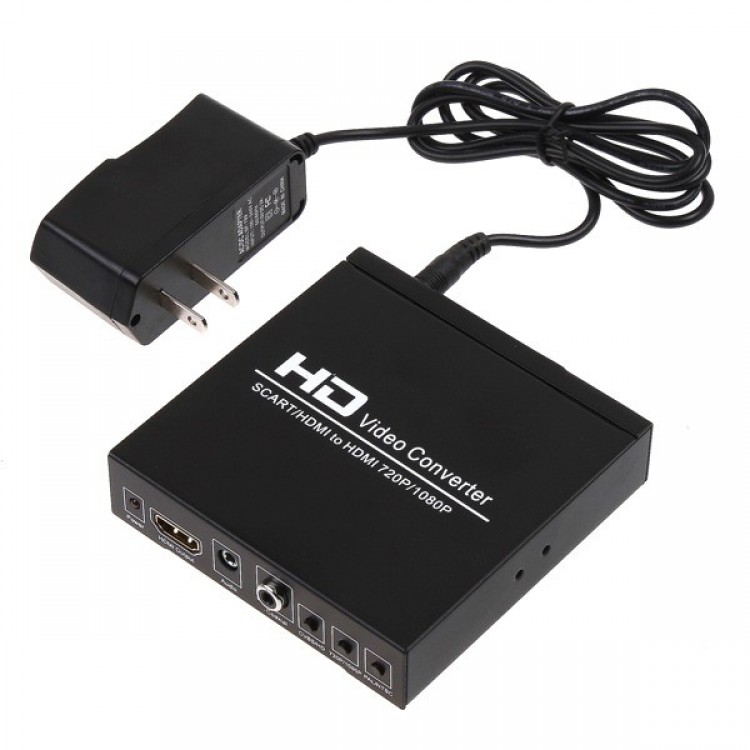

HDV-8S Scart to HDMI HD Video Converter SCART + HDMI to HDMI Converter

HDV-8S Scart to HDMI HD Video Converter SCART + HDMI to HDMI Converter

Introduction
- SCART +HDMI to HDMI converter can convert 480I(NTSC)/576I(PAL) format signal to 720P/1080P HDMI signal output, also it can connect with the high definition HDMI input interface, Easily connect with the DVD, set-top box, HD player, Game Console (PS2，PS3，PSP,WII,XBOX360 etc).
　
Function:
- HDMI output interface: connect with high definition TV or high definition projector
HDMI output format:720P@50/60Hz, 1080P@50/60HZ
Audio output format: Digital coaxial audio, analog stereo audio
- SCART input interface: DVD, set top box, other players.
　SCART input format: PAL/NTSC_M/NTSC4.43/SECAM/PLA-M/PAL-N
- HDMI input format: 480I/576I/480P/576P/720P@50_60Hz/1080I@50_60Hz/1080P@50_60Hz
　　Compatible with several DVI format: 800X600、1024X768,1280X1024、1360X768, 1680X1050、1920X1080 etc.4). 3.5mm audio interface: Connect with analog audio amplifier or headphones input interface
- Digital coaxial output: Connect with digital audio amplifier.

Features:
- Scales SCART Signal (RGB or Composite Video) to HDMI 720p or 1080P;
- HDMI output: 720P, 1080P;
- SCART audio is integrated into HDMI out as well as pass-through to earphone or sound box output;
- Automatically detect RGB(50/60Hz), Composite Video(NTSC/PAL);
- Auto-store setting of output resolution.

Physical interface schematic diagram
- HDMI IN------------------HDMI input interface
- SCART IN---------------- SCART signal input interface;
　L/R IN-------------------- AV audio input interface
- DC/5V:---------------------DC power input interface
- HDMI OUTPUT----------HDMI output interface
- AUDIO---------------------Analog audio output interface
- Coaxial----------------------Coaxial digital audio output interface
- SCART (CVBS)/HDMI---------------------SCART or HDMI input switching button
- 720p/1080p---------------------------------720P or 1080P HDMI output switching button
- 50HZ/60HZ(PAL/NTCS)------------------50Hz or 60Hz HDMI output state button
