HDV-E50C HDMI Extender Over Single 50m/164ft UTP Cables w/IR Control HD 1080P or DVD Players HDTV Set-Top Box

HDV-E50C HDMI Extender Over Single 50m/164ft UTP Cables with IR Control HD 1080P or DVD Players HDTV Set-Top Box

Introduction:
The HDMI Extender over Single Cat5e/6 with IR extends high definition video and audio signals and IR, at a distance of up to 164ft/50m over a single Cat5e/6
cable. Features EDID management, which allows and encourages source and display “handshake” for seamless integration. With only one cost effective Cat5e/6 cable, high definition sources with HDMI outputs can be connected to high definition displays with HDMI inputs over long distances. Deep color video, DTS-HD or Dolby TrueHD audio is supported and compatible with the extender. In addition, the extender is also equipped with pass-through which allows for source control. The extender includes tw o units: transmitting unit and receiving unit. The transmitting unit is used to collect the HDMI input with IR signals and carries the signals via one cost effective Cat5e/6 cable. The receiving unit is responsible for equalizing the transmitted HDMI signal and reconstructing IR control signals. The extender offers the most convenient solution for HDMI extension over a single Cat5e/6 with long distance capability, and is the perfect solution for any application.

Features:

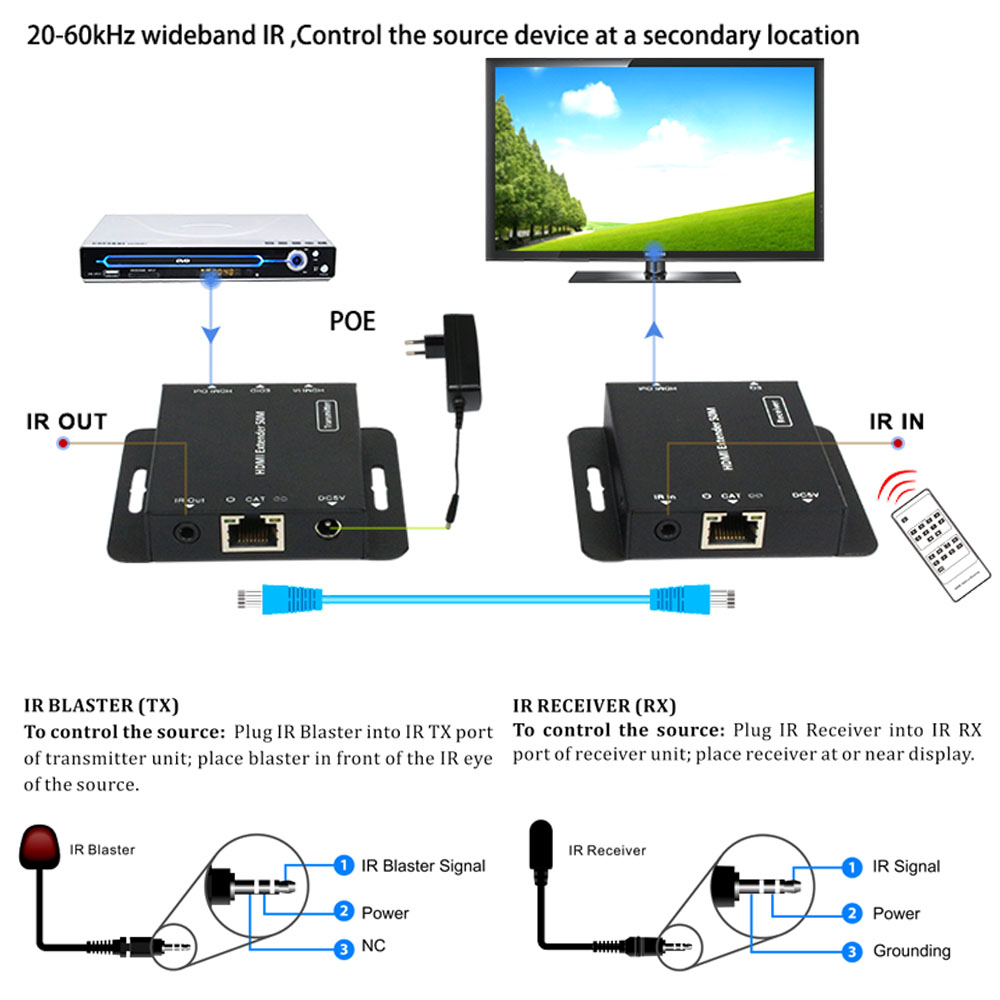

- Allows HDMI Audio/Video and IR signals to be transmitted over a single Cat5e/6 cable.
- Supports up to 1080p High Definition resolution.
- Compact design for an easy and flexible installation.

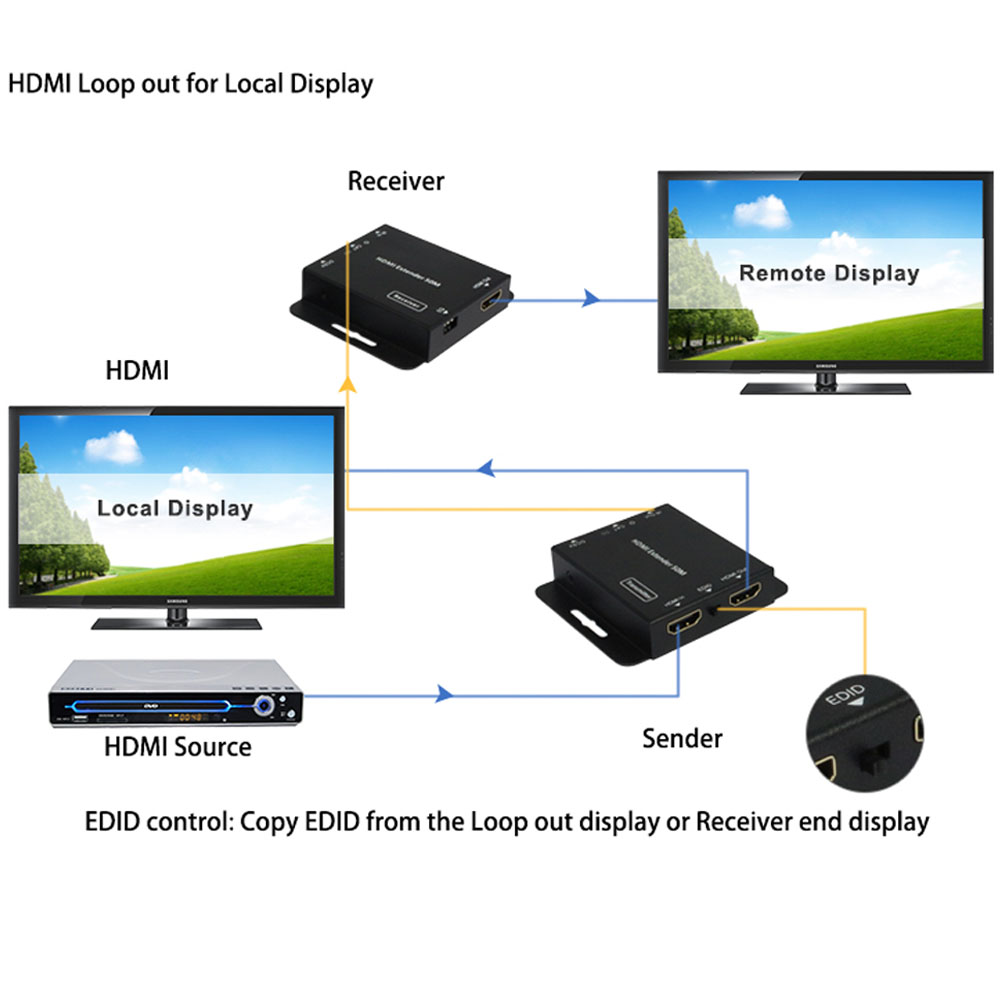

- Support copy EDID from receiver display or loop out display.
- Allows for cascading via additional HDMI loop out port.
Support Power over cable function.
- Transmission Range: Extends 1080p resolution up to
- 164ft/50m over a single Cat5e or Cat6 cable.
- Works with HDMI and HDCP compliant devices

Specifications:
- Video Bandwidth: Single-link 165Mhz ( 4.95Gbps)
- Video Support: 480i/480p/720p/1080i/1080p @60
- Audio Support: Surround Sound (up to 7.1 ch) or stereo digital audio
- Transmission Range: HD [1080p 24-bit color] - up to 50m [164ft]
- Input TMDS Signal: 3.3 volts
- Input DDC Signal: 5.0 volts/P-P
- ESD Protection: Human Body model:+/- 8 kV(air-gap discharge) +/- 4 kV (contact discharge)
- HDMI connector Type A 19 pin female

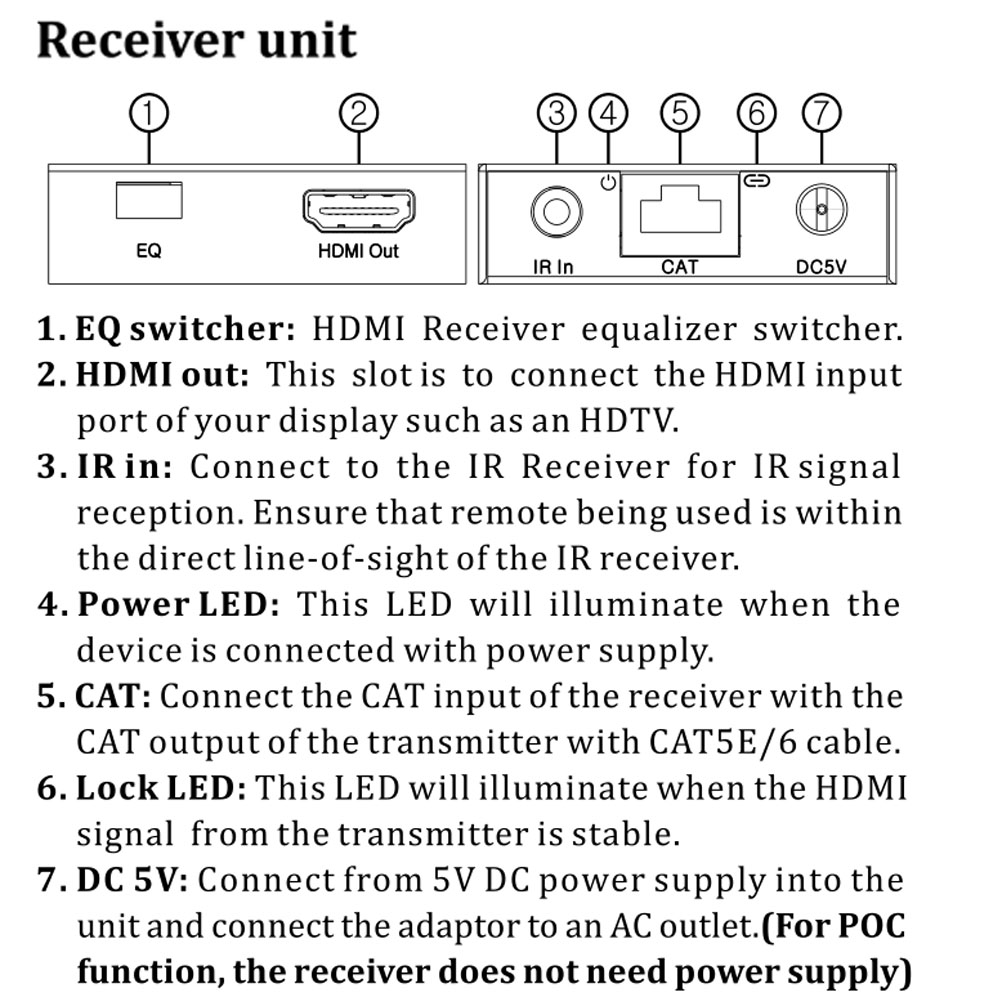

- RJ-45 connector WE/SS 8P8C 3.5mm connector (TX and RX) IR Receiver/IR Blaster

MECHANICAL SPECS:
- Housing: Metal enclosure
- Power Supply:  5V1A DC
- Power consumption:  1.5 watts (TX); 1.0 watts (RX)
- Operation temperature:  32~104 °F
- Storage temperature:  -4 ~140 °F
- Relative humidity: 20~90 % RH (no condensation)

Package Contents:

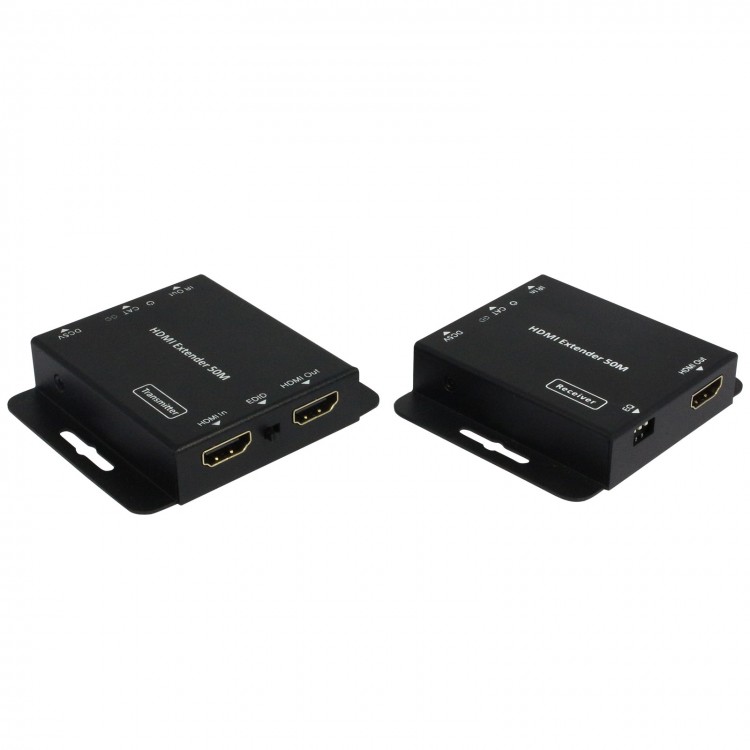

- 1 x HDMI Transmitter
- 1 x HDMI Receiver
- 1 x Windband IR Tx cable
- 1 x Windband IR Rx cable
- 1 x 5V1A DC Power Supply Adaptor
- 1 x Product Manual
