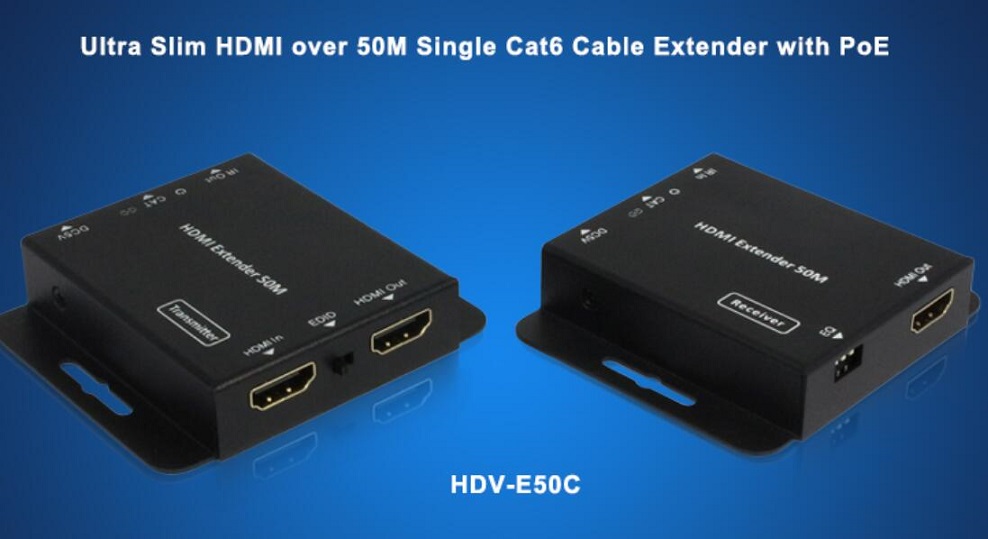

HDV-E50C HDMI Extender Over Single 50m 164ft UTP Cables with IR Control

HDV-E50C HDMI Extender Over Single 50m 164ft UTP Cables with IR Control

Description:
- The HDMI Extender over Single Cat5e/6 with IR extends high definition video and audio signals and IR,at a distance of up to 164ft/50m over a single Cat5e/6 cable.Features EDID management,which allows and encourages source and display "handshake" for seamless integration.

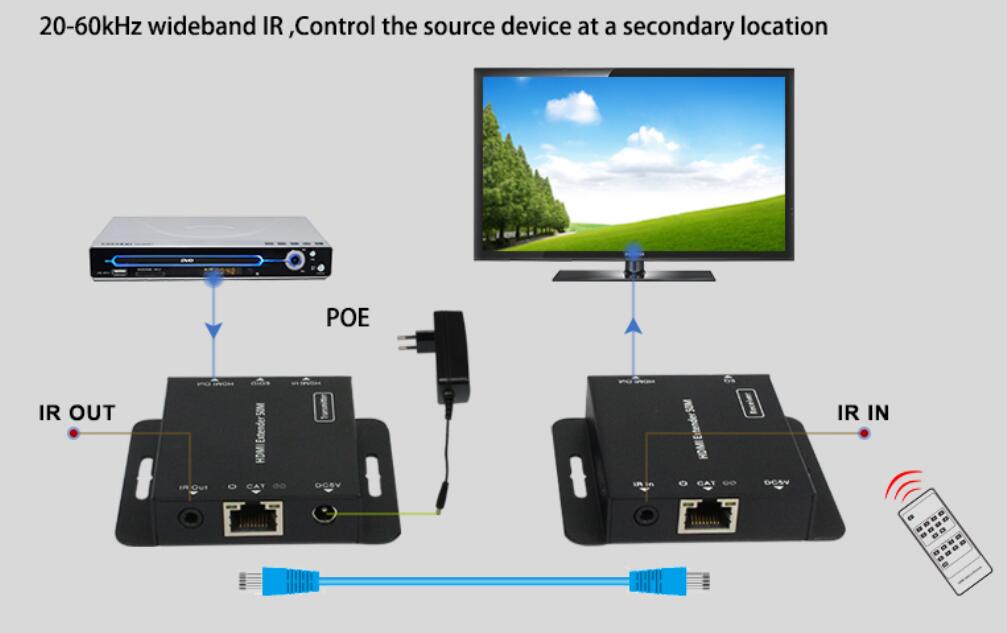

- With only one cost effective Cat5e/6 cable,high definition sources with HDMI outputs can be connected to high definition displays with HDMI inputs over long distances.Deep color video, DTS-HD or Dolby TrueHD audio is supported and compatible with the extender.In addition,the extender is also equipped with bi-directional IR pass-through which allows for source or display control.

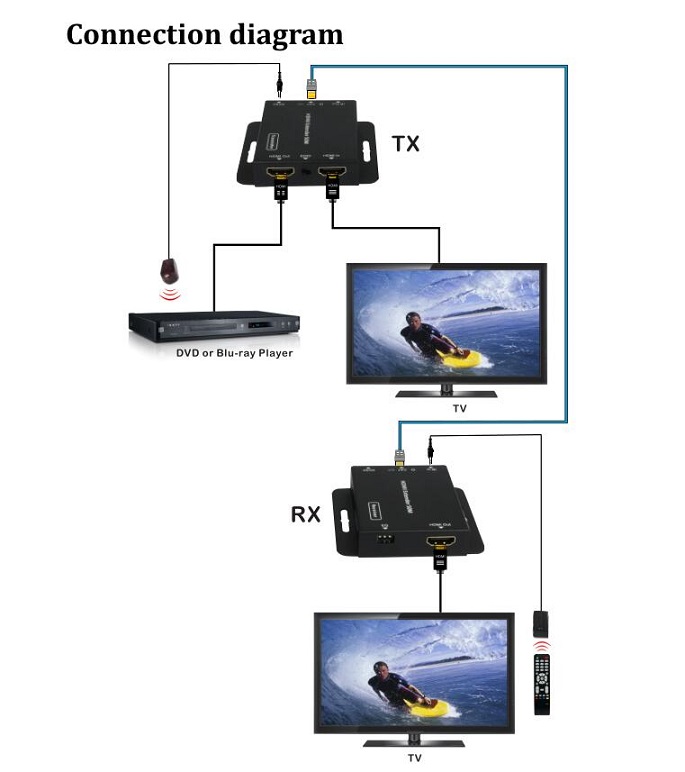

 - The extender includes two units:transmitting unit and receiving unit.The transmitting unit is used to collect the HDMI input with IR signals and carries the signals via one cost effective Cat5e/6 cable.The receiving unit is responsible for equalizing the transmitted HDMI signal and reconstructing IR control signals.The extender offers the most convenient solution for HDMI extension over a single Cat5e/6 with long distance capability,and is the perfect solution for any application.

Features:
- Allows HDMI Audio/Video and IR signals to be transmitted over a single Cat5e/6 cable.
- Support copy EDID from receiver display or loop out display.

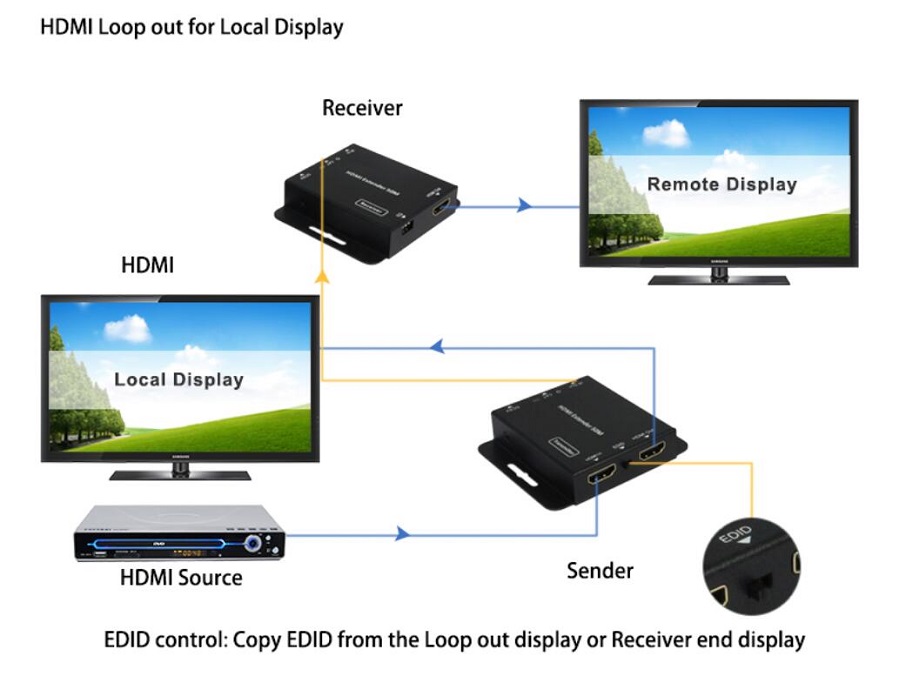

- Allows for cascading via additional HDMI loop out port.

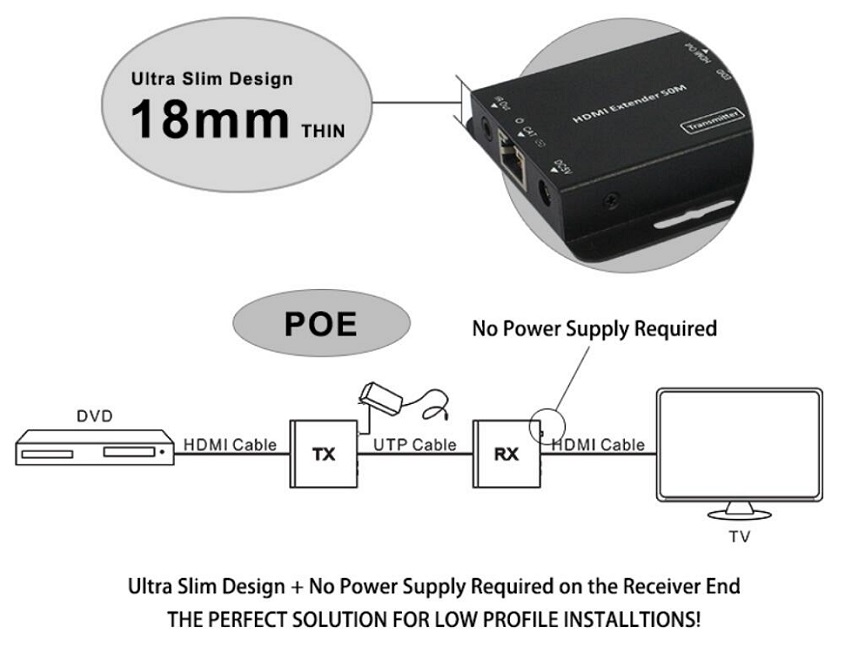

- Support Power over cable fuction.
- Transmission Range: Extends 1080p resolution up to 164ft/50m over a single Cat5e or Cat6 cable.
- Works with HDMI and HDCP compliant devices.
- Supports up to 1080p High Definition resolution.
- Compact design for an easy and flexible installation.

Specification:
- Video Bandwidth: Single-link 165Mhz [ 4.95Gbps]
- Video Support: 480i/480p/720p/1080i/1080p @60
- Audio Support: Surround Sound (up to 7.1 ch) or stereo digital audio
- Transmission Range: HD [1080p 24-bit color]–up to 50m [164ft]
- Input TMDS Signal: 3.3 volts
- Input DDC Signal: 5.0 volts/P-P
- ESD Protection: Human Body model:+/- 8 kV (air-gap discharge);+/- 4 kV (contact discharge)
- HDMI connector: Type A 19 pin female
- RJ-45 connector: WE/SS 8P8C

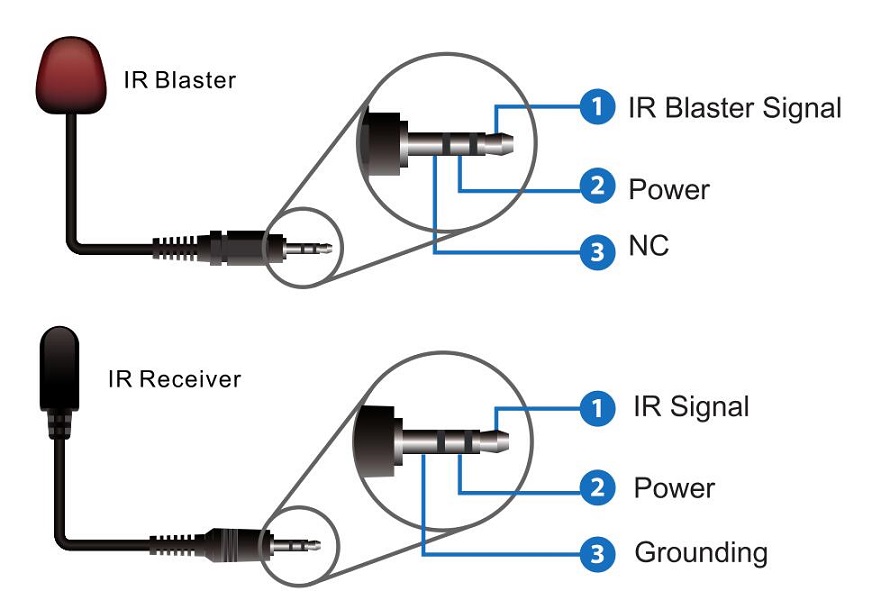

- 3.5mm connector:(TX and RX) IR Receiver/IR Blaster

Mechanical Specifications:
- Housing: Metal enclosure
- Power Supply:(1) 5V1A DC
- Power consumption: 1.5 watts (TX);1.0 watts (RX)
- Operation temperature: 32~104 °F
- Storage temperature: -4 ~140 °F
- Relative humidity:20~90 % RH (no condensation)

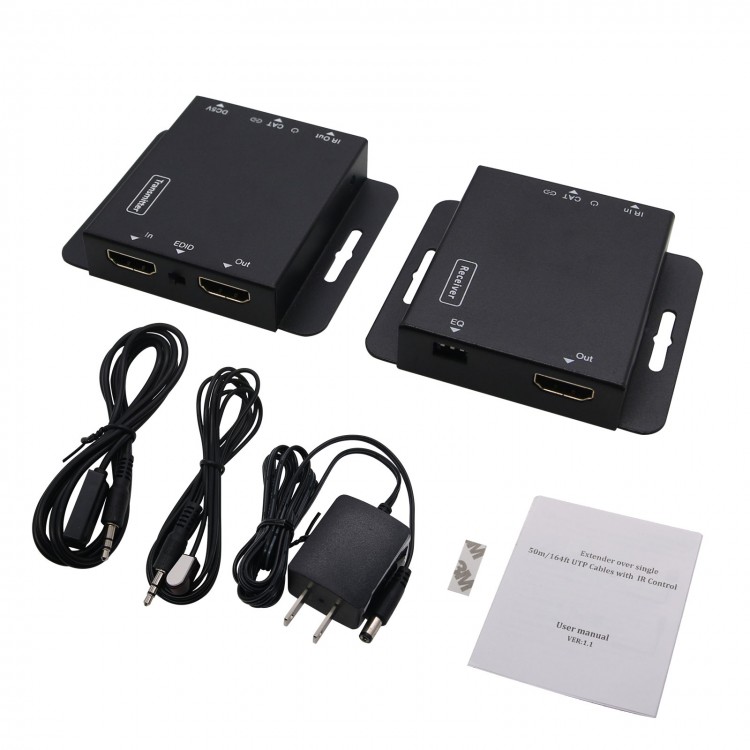

Package Contents:
- 1 x HDMI Transmitter
- 1 x HDMI Receiver
- 1 x Windband IR Tx cable
- 1 x Windband IR Rx cable
- 1 x 5V1A DC Power Supply Adaptor  (EU)
- 1 x Product Manual
