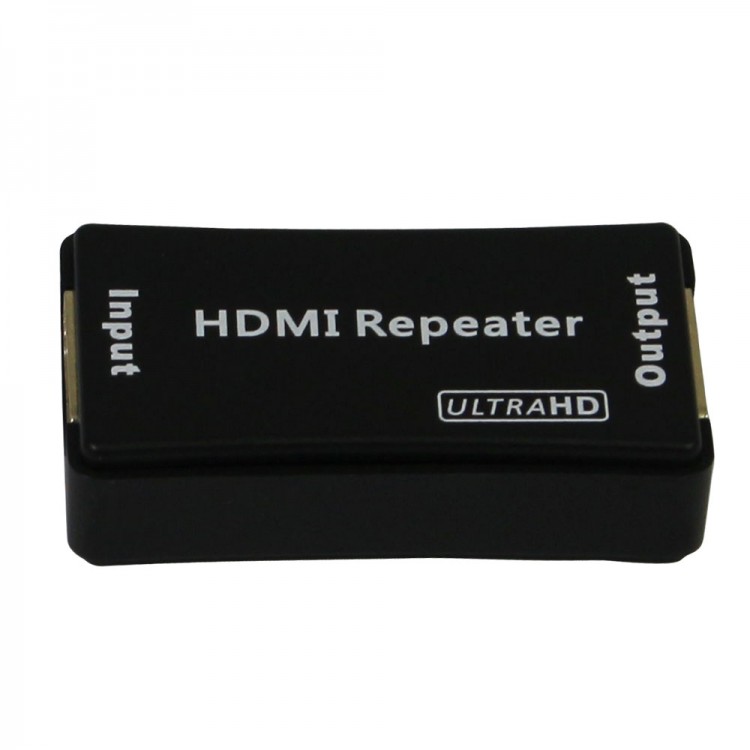

HDV-R55 UHD 4K2K HDMI Repeater Extender Signal Amplifier Booster 1080p for HDTV
Introduction:
The UHD 4K2K HDMI Repeater is the most advanced solution for HDMI signal extension or cascade. It does amplifies signal and equalization to provide high
performance I/O of audio and video through HDMI cable for distance up to 20m at 4K2K@60Hz(Only Y U V _420) and 30 meters at 1080p@60Hz. Capable of receiving and transmittng 3Gbps bandwidth rate with CDR ( Clock Data Recovery) ensure not data loss.
Specification:
- Video Bandwidth: 340MHz / 10.2Gb
- Input Port: 1 x HDMI
- Output port: 1 x HDMI
- Resolution:
HD: 480i~4K2K@24/25/30 & 4K2K@50/60YUV_420
PC: VGA ~ WUXGA (RB)
- Cable Distance: 20m@4K2K,30m@1080p
- ESD Protecton Human body model:±8kV (air-gap discharge); ±4kV (contact discharge)
- Dimensions: 50mm (W) x 27mm (D) x 15mm (H)
- Weight: 10 g
- Chassis Material: Plastic
- Silkscreen Color: Black
- Operatng Temperature: 0˚C~40˚C / 32˚F ~ 104˚F
- Storage Temperature: -20˚C ~ 60˚C / -4˚F ~ 140˚F
- Relative Humidity: 20 ~ 90% RH (non-condensing)
Package List:
- 1 x UHD 4K2K HDMI Repeater
- 1 x User manual
