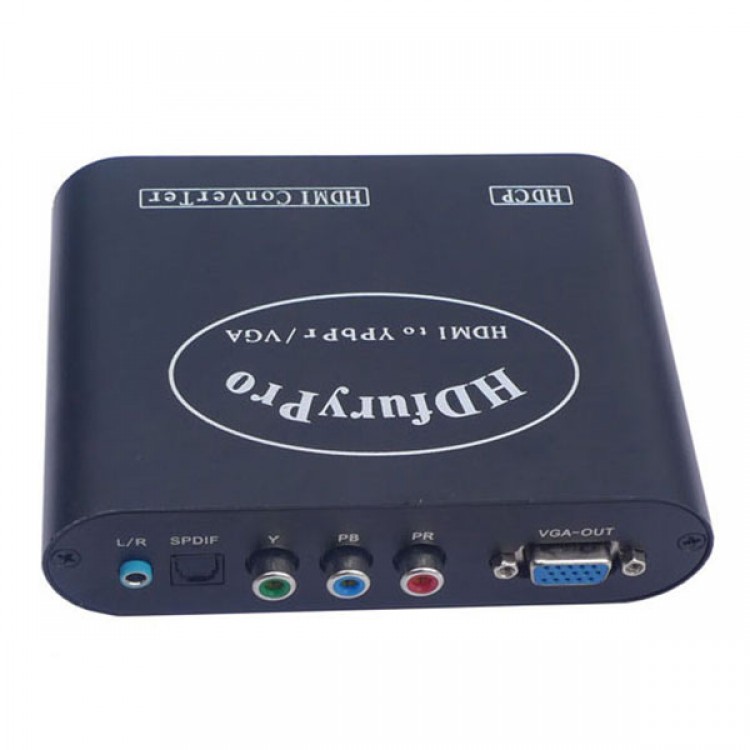

HDV668 HDMI to VGA / YPbPr Video Audio Converter Support 1080P

HDV668 HDMI to VGA / YPbPr Video Audio Converter Support 1080P

Introduction:
HDV668 HDMI to VGA and Ypbpr converter designed for TV or projector which without HDMI interface. Easily achieved HDMI to VGA or HDMI to YPBPR the format change. Using highly integrated video processing chip, can convert HDMI high-definition signal to high-resolution VGA signal or high-definition YPBPR signal. So you can connect more display devices (TVs, projectors, monitors … …) which without HDMI Interface. HDV668 is a pure hardware processing, with good quality, high-resolution, small size, no need to install drivers, portable, plug and play, mobile and strong.

Features:
- High-definition HDMI digital processing chip, convert HDMI high-definition signal to high-resolution VGA signal or high-definition YPBPR signal.
- Can be HDMI high-definition digital audio signal inside the independent output, And also can output analog stereo 2.0.
- Multi-channel video input (HDMI1, HDMI2), multi-channel analog output (VGA or YPBPR), multi-channel audio output (optical, stereo)

Details:
- Signal input and output
- Input video signal:0.5-1.0 volts p-p
- Input DDC Signal:5 volts p-p (TTL)
- Video Input Interface:HDMI
- Video output interface:VGA, YPbPr
- Audio output interface
- 3.5mm (LPCM) Digital Audio Optical Fiber
- HDMI input formats
- 480i/576i/480p/576p/720p/1080I/1080P
- YPbPr output format
- 480i/576i/480p/576p/720p/1080i
- VGA output resolution
- 800x600/1024x768/1280x1024/1920x1200

Frequency:
- VGA Output frequency range:60Hz
- HDMI input bandwidth:1.65Gpbs/165MHz
- Support HDCP version 1.2
- Mechanical
- Size :130mm x 105mm x 35mm
- Net Weight (kg):0.35kg

Package included:
- one HDMI to VGA / YPBPR Converter
- one DC/5V POWER ADAPTER(Support AC110~220V)
- one User Manual
