Head Tracking System Head Tracker Replacement for TrackIR5/TrackNP5 for Flight Racing Game Combat

Availability: In stock, usually dispatched in 1 business day

  • Price:$83.01
  • Price in reward points: 830 Reward Points: 8
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $81.35 $79.69 $77.20 $73.88 Contact US
Quantity:

Head Tracking System Head Tracker Replacement for TrackIR5/TrackNP5 for Flight Racing Game Combat

Features:

1. Simple to use: Only one sensor on the head can realize full-scale true 6-axis (6DOF) tracking, without wearing any attached sensors.
2. True 6-axis(6DOF): The 6-axis data is calculated by a single algorithm using a special algorithm. The transition is smooth and natural, and the false 6-axis is converted into translation without using the body inclination.
3. Simple setting: After installing the software, inserting the head sight, and wearing the sensor, you only need to set it up in three simple steps.
4. One-button calibration: sit the head sensor at the receiver, press F12 to center it, without complicated settings and calibration.
5. Electromagnetic safety: The bracket worn on the head does not have a high-frequency wireless transmitter, which does not generate electromagnetic radiation to affect brain health, and avoids brain fever when using a mobile phone for a long time.
6. Synchronous upgrade: once there is support for new games, the first time to notify, eliminating the hassle of finding patches everywhere.
7.Ultra-high indicators: resolution 1/150th pixel, response time 8.3ms, sampling frequency 120FPS.
8. No need for charging: USB power supply and no need to charge. It can be used after booting.
9. Hotkey settings: Precise mode, return to center, pause, and configuration switching can be set to a remote stick, joystick, mouse, and keyboard.
10. True angle of view: the direction of the Z-axis movement (body leaning forward, leaning back) based on the current visual direction.
11. Automatic recognition: no need to select the corresponding game configuration, the software automatically recognizes after running the game.
12. High customization: advanced functions (curve, configuration, parameter fine-tuning) are set for players to dig deeper. Different games may require different configurations. After setting, launch the corresponding game to load the corresponding configuration.

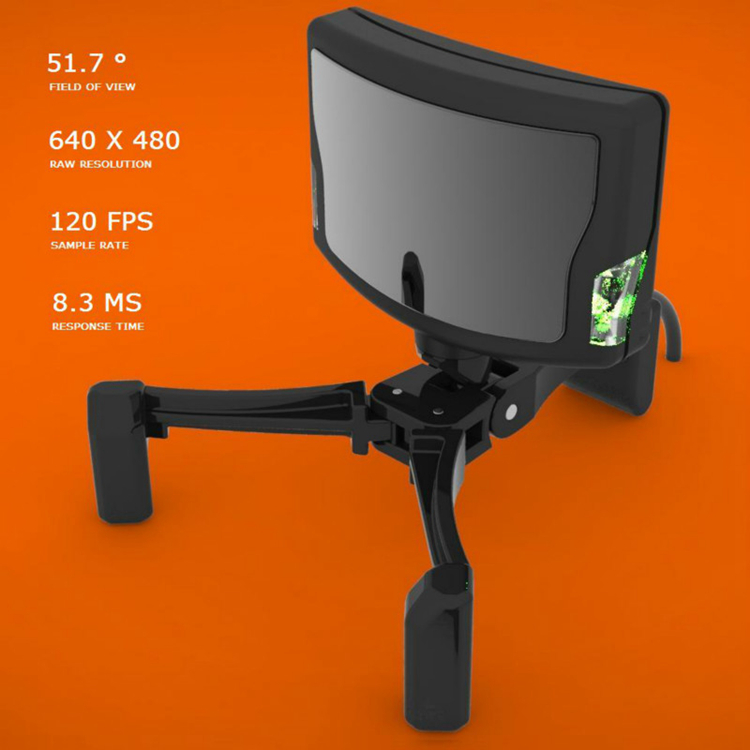

Specifications:
- Head tracking position: 6 axes (6DOF)
- Horizontal viewing angle: 51.7°
- Sampling rate: 120FPS
- Response time: 8.3ms
- Photosensitive chip native resolution: 640 x 480
- Sub-pixel resolution: 1/150th pixel
- Sensing Range: 96,000 x 72,000
- Resolution Ice Flat Viewing Angle: 1850 sub-pixels/degree
- Dimensions (without base): Thickness: 0.57"; Width: 2"; Height: 1.5"
- Connection method: USB 2.0
- Operating System: for Windows XP/Vista/7/8/8.1/10, 32-bit, 64-bit
- USB cable outer diameter: 2.8mm
- USB cable length: 1.5m/4.9ft
- Tracking frame type: active, passive
- Supported game types: flight simulation, racing car, first-person shooter

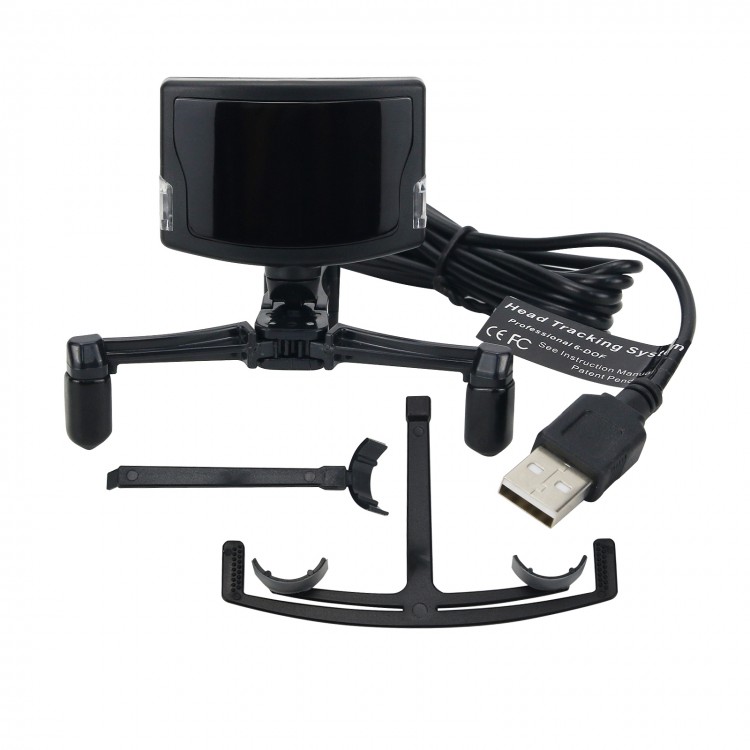

Package Included:
- 1 x Head sight tracker
- 1 x Mounting bracket (allow the device to be placed on a variety of display devices)
- 1 x Tracking bracket (passive infrared bracket, requiring no power supply)
- 1 x Quick Start Guide

Note:
- Baseball cap pictured is not included.


Description:
This is a high-precision professional head posture infrared tracking system, which has the highest performance index among all similar products. It is a professional, stable and convenient to use product, without cumbersome hardware connection. Just plug and play. There is also no need for cumbersome software settings. There are many built-in control curves. Beginners hardly need to read the manual. Just adjust the head posture and start the game. The built-in support game list is updated synchronously with the official website, eliminating any trouble of finding patches everywhere.

The professional equipment is tailored for three types of games: flight simulation, racing car, and first-person shooter. Let you no longer be bound by the PoV Hat on the joystick and the buttons on the keyboard to control the viewing angle in the game, let you feel the great improvement of the simulation degree it brings to the game, and truly bring your head to the in the game!

Advantages:
1. Highly cost-effective.

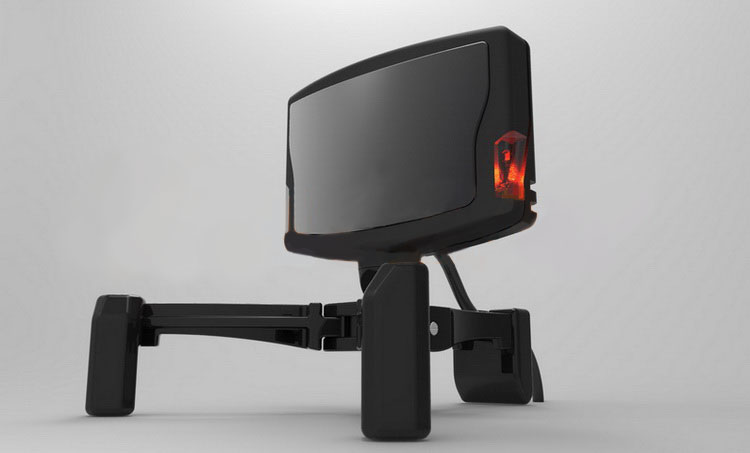

2. Professional shape design: It adopts a fully protective shape similar to a pilot's helmet. With fashionable and novel design, it can perfectly cooperate with your computer and monitor in terms of senses, bring you a professional feeling, and coordinate with your game equipment.

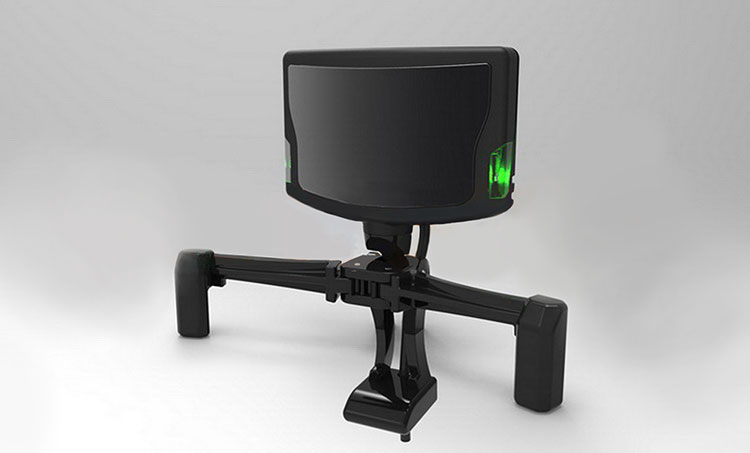

3. Adjustable fixed base: The front feet are geared, and the base can be installed on laptops, LCD monitors, all-in-one computers, LCD TVs in living rooms, projector screens, old CRT monitors, desktops, or even wall hanging hook.
4. High hardware index: using built-in dedicated high-speed graphics processing chip. The original pixel resolution is 640X480 pixels, and the sampling frequency is 120FPS, so the delay is only 8.3ms. The horizontal wide viewing angle of 51.7° expands the tracking range and it supports up to 6DOF. All parameters are currently the highest configuration in the industry.
5. Accurate tracking experience: Cooperate with the software running on the computer to provide high precision, high stability and smooth tracking experience.
6. The degree of freedom algorithm allows the device to accurately track the target using only 3 lights, and each axis is independent of each other. At the same time, a precise control mode has also been introduced, which can run smoothly even when there is interference from other light sources. (How to deal with the light interference during the day? Increase the light filter threshold in the control panel, and at the same time increase the brightness of the infrared light, and the problem will be solved. Of course, you cannot let the sun shine directly. The infrared light in the sun is much brighter than the LED light).
7. Improved thermal cooling system: Some other devices with built-in processing chip infrared light emission systems and there is a problem of high temperature damage to the devices. We adopt a new low-power image processing chip, an improved high-efficiency infrared system, and heat dissipation treatment on the internal circuit of the device, which greatly reduces the temperature of the device.
8. The official website synchronizes the game list update: currently supports more than 180 large-scale games, and the official game list is constantly updated. Open the control software, if you find a red game update sign in the upper right corner, it means that a new game is supported, click it. At the same time, some games that are not currently supported but can be controlled by the mouse can be supported by mouse simulation, which expands the number of supported games.
9. Adjustable image acquisition parameters: Through the image control in the software, the working parameters of the image processor can be modified to ensure that the quality of the collected images is smooth and can run accurately in various interference environments. Make the device more suitable for applications in various environments and more precise control.
10. Support true viewing angle: Currently, only the software of professional head sight equipment can support it. Imagine that when you turn your head a small angle, the viewing angle in the game is turned 90 degrees to the left to look straight to the left, if you want to look closely. Do you move your head toward the computer screen or move your body to the left? Of course it is more natural to move towards the screen.

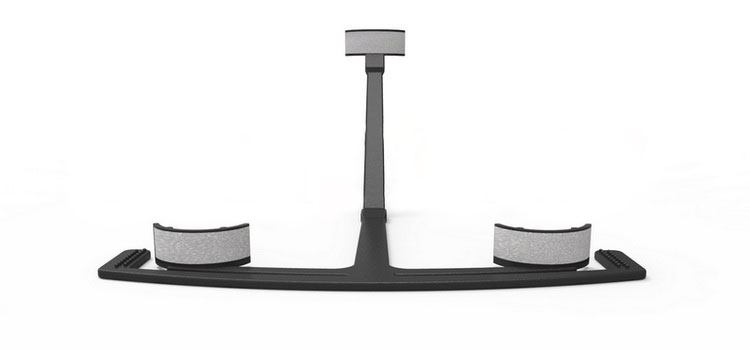

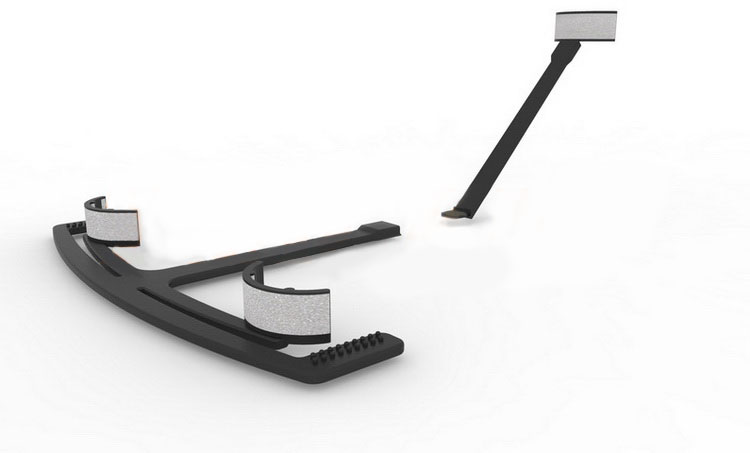

Infrared Tracking Bracket:
The professional infrared passive tracking bracket is made of directional high-infrared reflective material and high-strength, high-elasticity engineering plastics. Simply assemble the reflector and clip it to the brim of a baseball cap. No setup, power control, etc. required.
1. Directional high-infrared reflective material, the reflective property can reach 500LUX, just like a self-luminous object and no need to pull a power supply line;
2. Detachable design: High-strength, high-elasticity engineering plastics. More comfortable to wear. If you don't need to take it out, you can disassemble the bracket into two parts, reduce the size and facilitate portability, and avoid the deformation problem caused by the pressure of the large external force;
3. Anti-slip bumps are thoughtfully designed at the buckle position of the brim. When the baseball cap is buckled, these bumps play a role of anti-slip and tightening, preventing the tracking bracket from falling off during use;
4. Reasonable size design can match it with all baseball caps on the market, without any adaptation problems;
5. It can also be fixed on the earphone: first fix the reflective bracket directly on the beam above the earphone with a rubber band (both up and down), and then assemble the bracket, which is simple and effective, and cooperates well.

Fast Installation Guide:

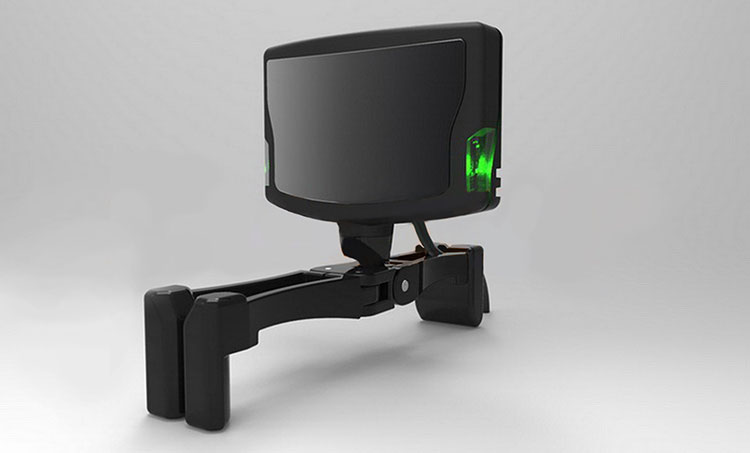

1. The left green light is on: it indicates that the device has tracked the head movement.
2. The green light on the right side is on: Indicates that the device detects that a supported game is already running.
3. All red and orange lights are on: Indicates that the device is suspended by the user (by default, press F9).

Attention:
- Buyers of the control software on the computer can download and install it on the official website (the latest version V5.42)
- After the installation is complete, please keep the computer connected to the Internet, so that once the official website has game updates, the game can be updated immediately, saving any troublesome upgrade support issues, and currently supports hundreds of games. The variety of games is still growing.
