Heal Force Prince 180D Portable ECG Monitor Handheld LCD Heart Detector Electrocardiogram for Health Care

Heal Force Prince 180D Portable ECG Monitor Handheld LCD Heart Detector Electrocardiogram for Health Care

User manual: Click here

Description:
Now introduce our bright new Prince 180D Portable ECG monitor with Advanced Measuring Technology, bring users more accurate, more informative & more efficient homecare experience. Designed for taking your electrocardiogram anytime or anywhere, cardiac events can occur irregularly and not during the doctor’s office. By having Prince 180D, the condition can be collected and saved for later analysis by a doctor. The best time to take a reading is when you are not feeling well and experienced some warning signs of heart attack.

Features:
- Portable and easy to operate

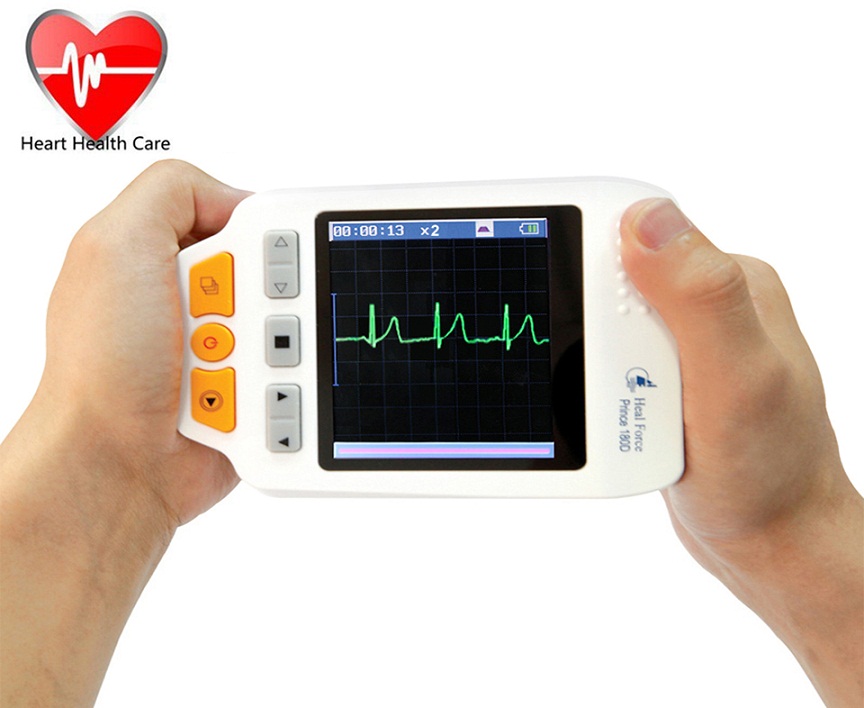

- Full-color OLED display
- Advanced measuring technology provides steady and accurate ECG waveforms
- Analysis and report 19 types of suggestive results
- PC data management software for data transmission and analysis
- 30 hours continuous monitor record

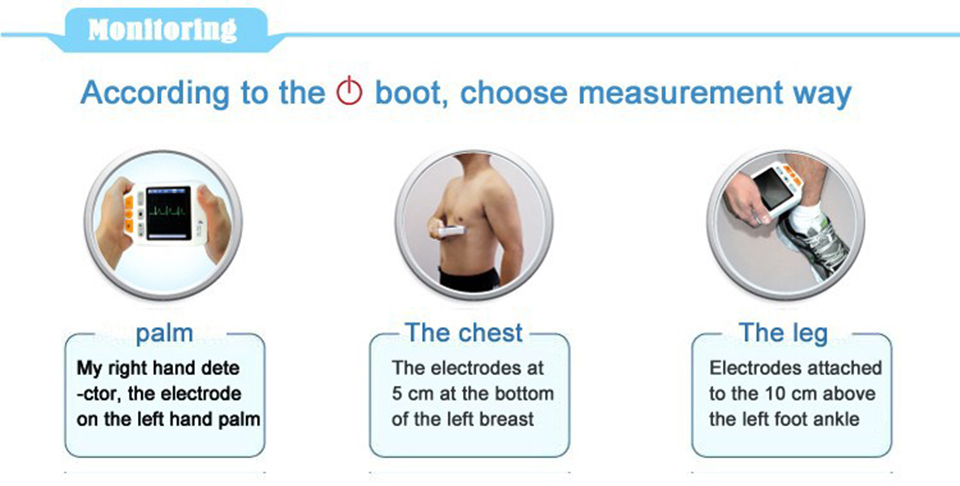

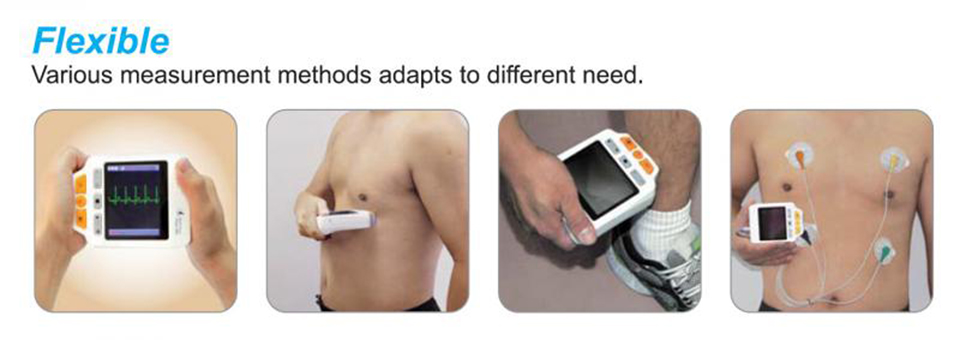

- Chest lead & limb lead measure available

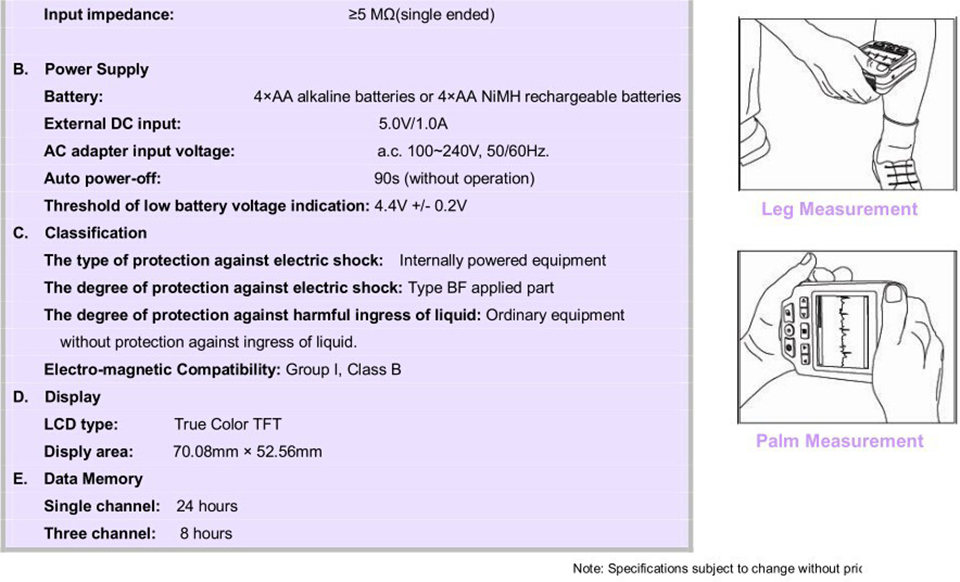

Technical Specifications
- Display Mode: Color LCD display
- Resolution:  320*240
- Screen Size (mm): 70.08*52.56
- Signal Input: 3 embedded metal electrodes or external lead wire(3/4)
- Lead Selections & Measuring Modes: Quick measurement by embedded electordes; Mea-surement by external electordes with lead wires(single channel for Lead I, II or III) or 4 lead wires(3 simultaneous channels for Lead I, II and III)
- ECG Bandwidth: 0.05-40Hz (Enhanced mode), 0.5-40HZ(Normal mode)
- Internal Noise Level: ≤30uVp-p
- Heart Rate Range: 30-240bpm
- Heart Rate Accuracy： ±2bpm or ±2%，which ever is greater
- Display Scale: 5mm/mV ±10%
- CMRR： ≥60dB
- Wave Form Sweeping Speed: 20mm/s±10%
- Measurement Time: 30 seconds per test
- Suggestive Results: 19 types of waveform
- Dimensions（mm）: L130*W98*H36
- Net Weight(without Batteries) : 400g
- Power Supply: 4*AA batteries
- Voltage: DC 5.0V/1.0A

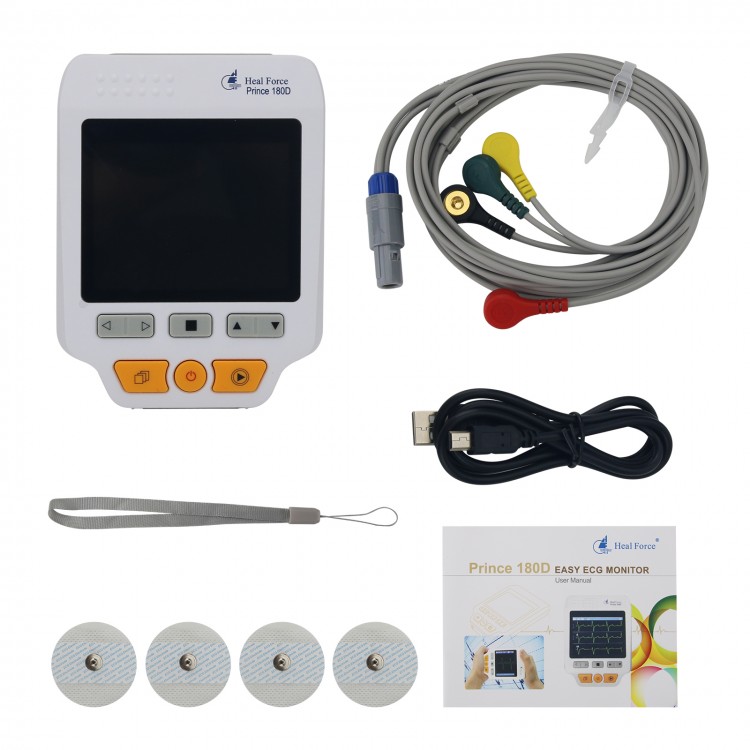

Package List:
- 1 * Machine main unit (without battery)
- 1 * English user manual
- 1 * Data cable
- 1 * ECG lead wire
- 1 * Storage Box
- 1 * Disposable ECG Electrode
