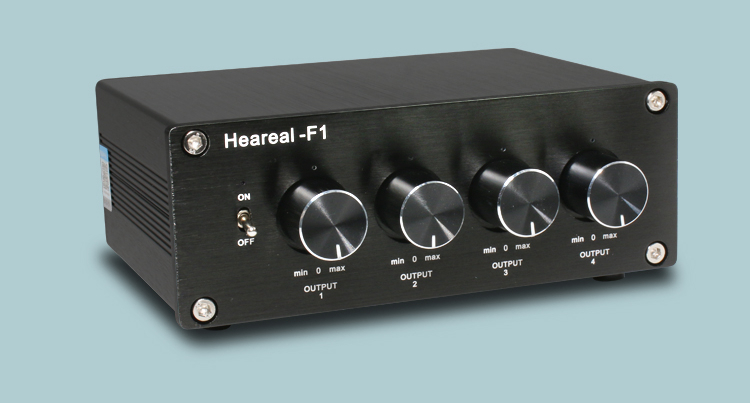

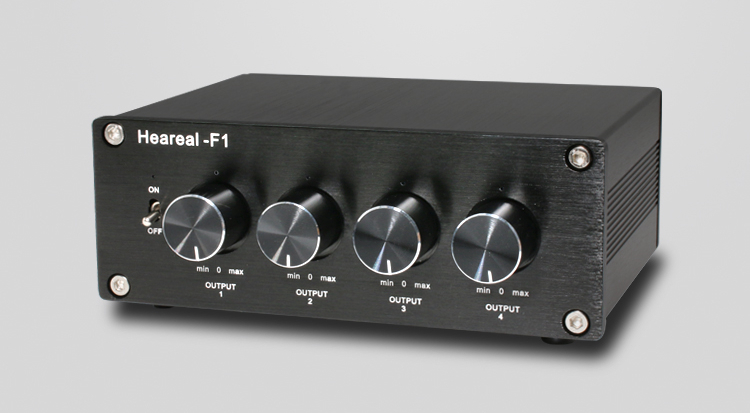

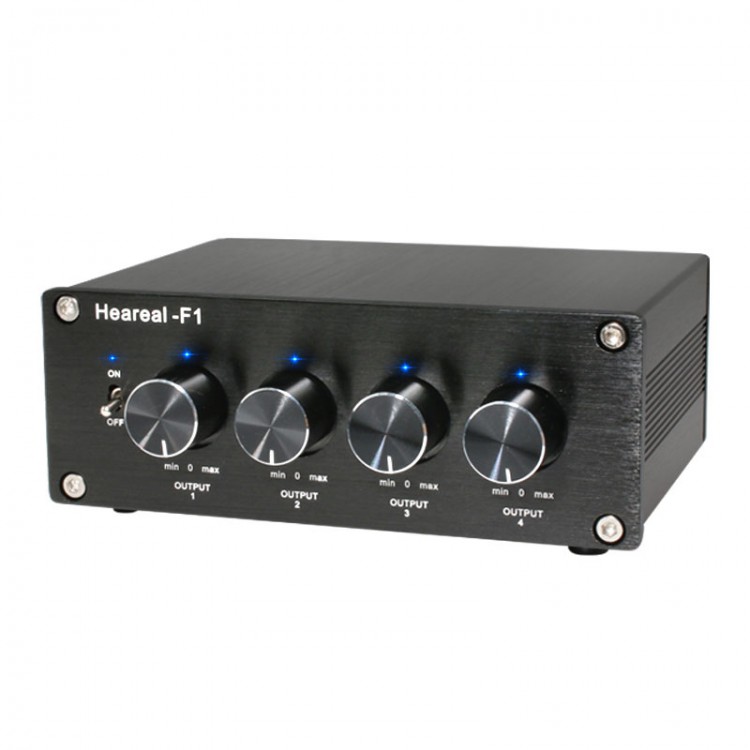

Heareal-F1 Hifi Audio Splitter Box Audio Switcher Lossless Sound 1 IN 4 OUT For Live Broadcast

Heareal-F1 Hifi Audio Splitter Box Audio Switcher Lossless Sound 1 IN 4 OUT For Live Broadcast

Features:
- Hifi audio splitter: 1CH input, 4CH simultaneous output
- Separate circuit and independent chip to achieve low distortion, highly amplified and restored output
- Easily solve problems such as insufficient output lines and noise in voice conversion
- 4CH outputs can be controlled independently, and any group of outputs can be switched at will

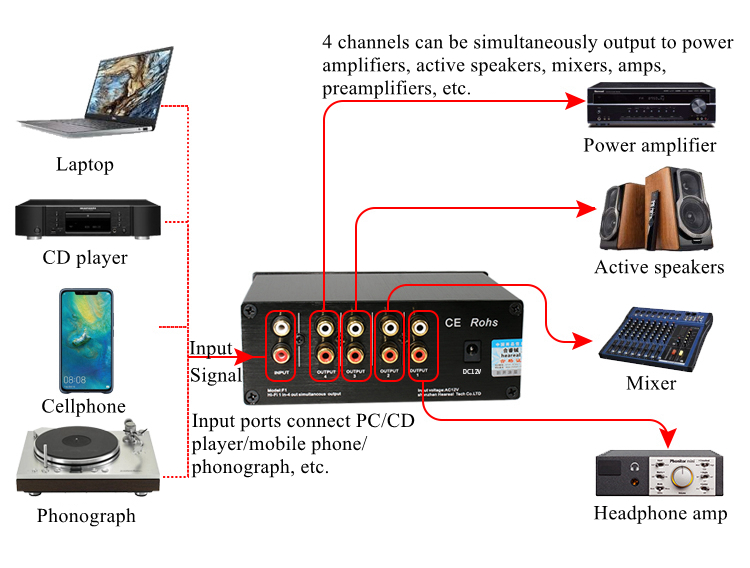

- A microphone can be connected to the input, and 4 channels are simultaneously output to different live broadcast equipment. Support mobile phones, anchor sound cards, laptops, and effectors
- Support S2 OTG digital recording converter for cellphone live broadcasting. 4CH outputs connected to S2, can output to 4 mobile phone live broadcasting at the same time
- 4CH output volume knobs can be switched on and off, and speakers can be turned off when turned to the minimum
- Highly restored output: 1Ch input ports input left and right channel signals, 4 sets of output ports output 4 channels. Simultaneously output 4ch signals, independent isolation between the 4 channels, no mutual interference, no noise, no crosstalk
- Gold-plated RCA sockets, low resistance and high conduction, sturdy and durable
- Output 4ch separation circuit, independent chip. The output is independently amplified and restored to prevent weakening and attenuation
- Stabilized constant current servo power supply system: small internal resistance, stable output voltage, low noise, effectively guaranteeing the stable operation of the splitter, ensuring the transient and high-frequency characteristics of the whole machine
- Every product has passed strict tests before delivery
- Ultra-low distortion 0.0038, input and output waveforms are exactly the same. The negligible audiophile very low distortion THD 0.0038, which is equivalent to 100 for 1ch input, and 99.62 for each of the 4ch outputs
- All aluminum shell, anodizing process, durable
- With a power adapter for Delta

Product Parameters:
- Input signal: 1Ch stereo signal
- Output signal: 4Ch stereo signals
- Input impedance: 47KΩ
- Output impedance: 600Ω
- Frequency response: 20HZ-20KHZ
- Signal to noise ratio: >100DB (20HZ-20KHZ)
- Harmonic distortion: 0.04% typically

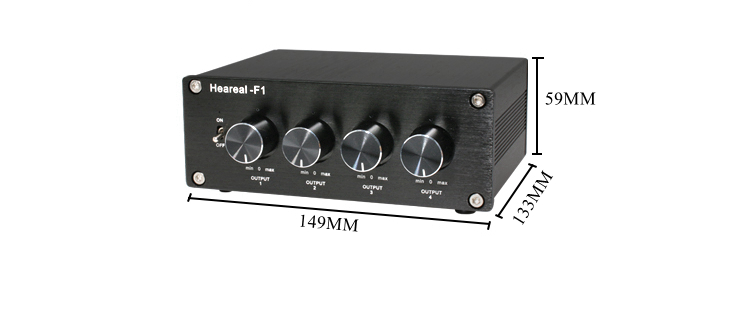

- Size: 149x133x59mm (LxWxH)
- Working voltage: Splitter DC12V
- Host net weight: 600g

Package Included:
- 1 x Set of Audio Splitter Box

Note:
- Other items pictured are not included in the package, for demonstration purposes only. Thank you for your understanding!
