Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $223.36 | $218.80 | $211.97 | $202.85 | Contact US |

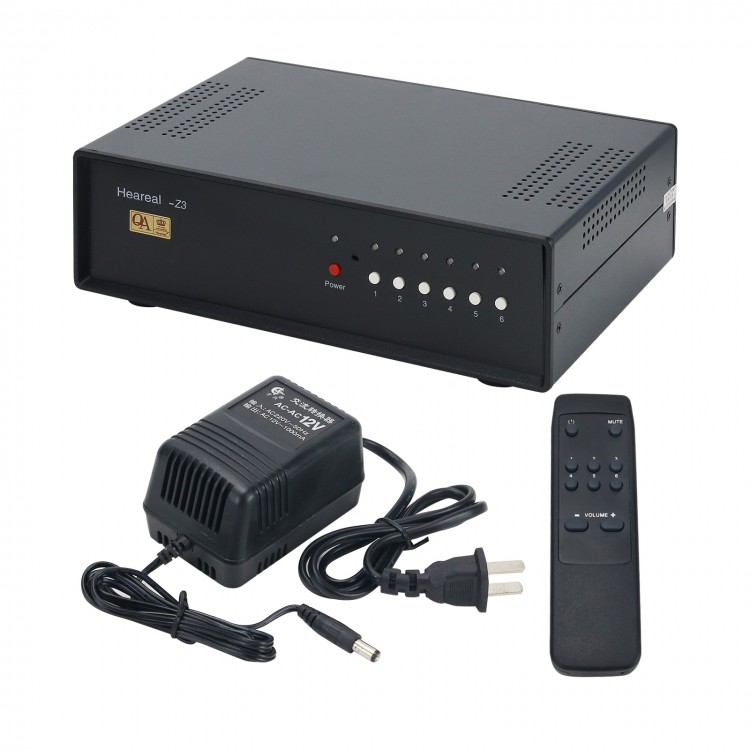

Heareal-Z3 Amplifier Speaker Switcher Selector 4 IN 2 OUT for Tube Amplifier Transistor Power Amp
Features:
- Hifi lossless power amplifier/speaker switcher
- For 4 power amplifiers to 2 speakers (with protection function for amp and speakers)

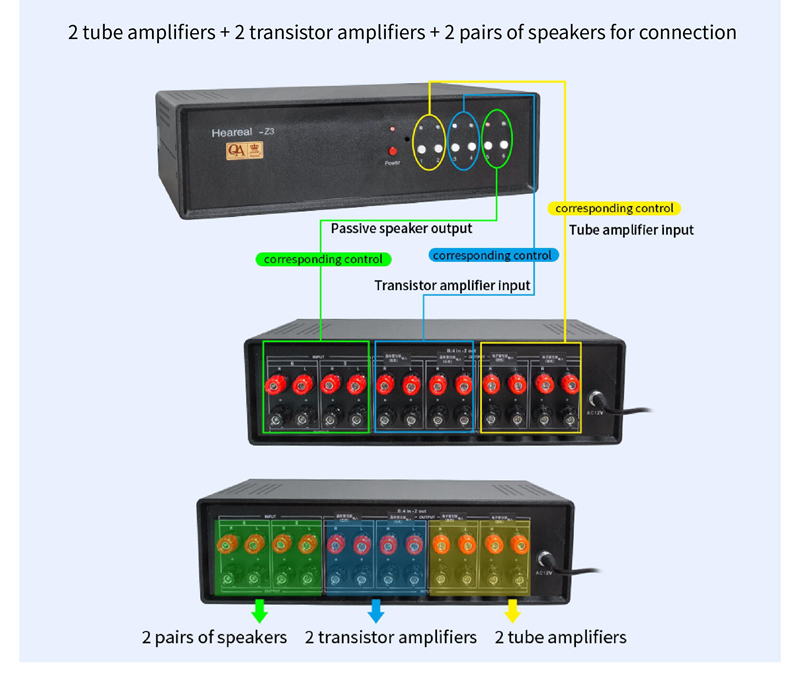

- For 2 tube amplifiers + 2 transistor power amplifiers to 2 pairs of speakers
- With an unique tube amplifier amplifier load protection circuit, it works stably
- Support operations via buttons on the front panel and on its remote control
- Independent modules enable isolation control and conduction to prevent crosstalk
- Bipolar separation circuit: both the positive and the negative are controlled by relays
- All the products have passed strict tests before delivery
- With holes to improve heat dissipation performance to protect the main unit
- Powered by a linear power supply; the energy is clean and powerful, and the response is efficient
- Buttons on the remote control: buttons 1 and 2 to control the input ports of transistor amplifiers; buttons 3 and 4 to control the input ports of tube amp; and button 5 and 6 to control the output ports of speakers
Specifications:
- Input voltage: AC220V or AC110V
- Power adapter: AC12V
- Speaker load power: < 500w (rated power)
- Size: 280 x 195 x 90mm/11 x 7.7 x 3.5" (LxWxH)
- Net weight of the switcher: 1.92kg/4.2 lb
- Net weight of power adapter: 0.4kg/0.9 lb
Package Included:
- 1 x Switcher
- 1 x Remote Control
- 1 x Power Adapter
