1. OVERVIEW

HEM4100 ENGINE CONTROLLER is used for controlling engine to realize engine auto start/stop,data measurement, alarm protection and “three remotes” (remote control, remote measuring and remote communication) functions. It fits with speed regulation function, not only with relay adjust speed output but also with CANBUS (SAE J1939) interface, which can control various kinds of J1939 or conventional engines,It can control various EFI or non-EFI engines.

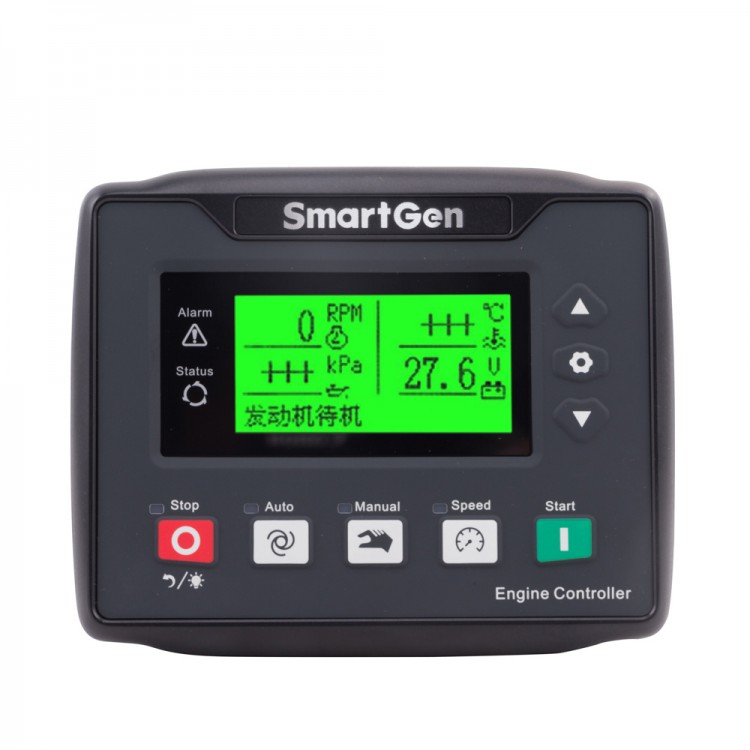

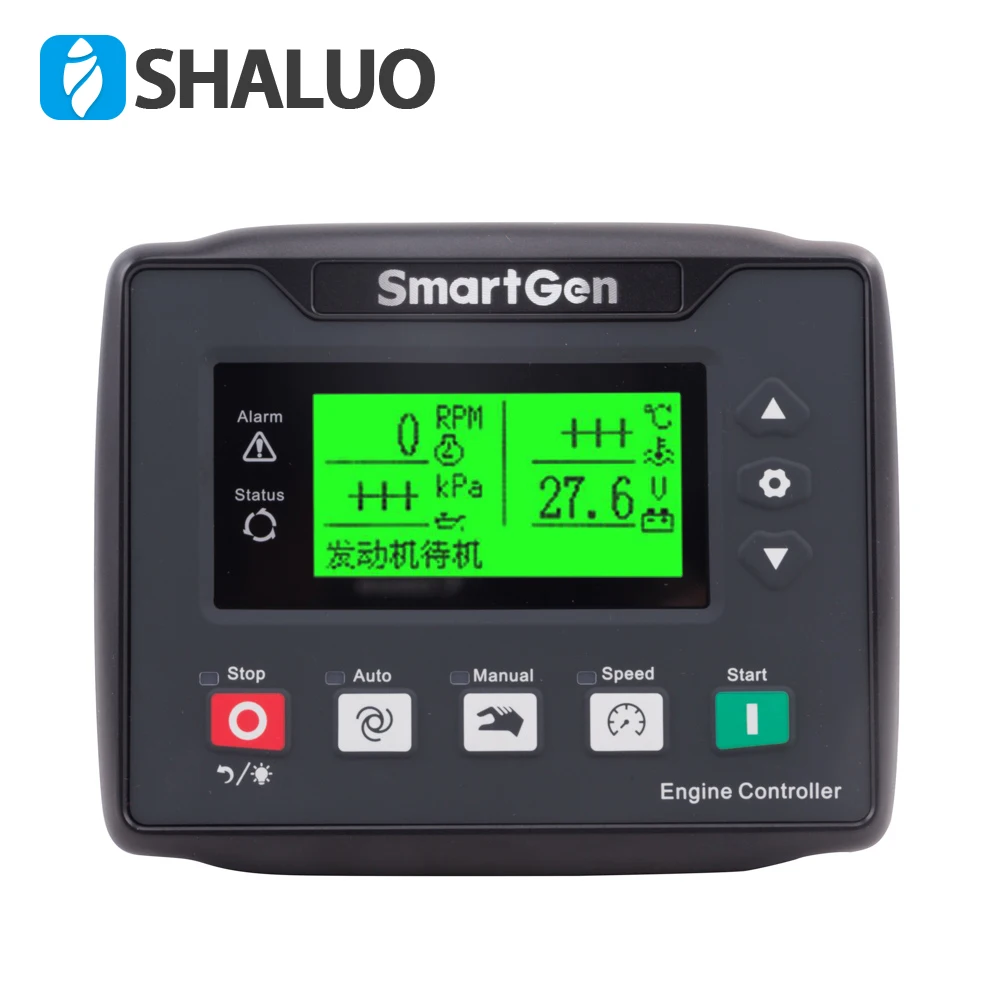

HEM4100 ENGINE CONTROLLER adopts large liquid crystal display (LCD) and selectable Chinese and English interface with easy and reliable operation. Users can read engine working parameters from

the LCD directly.

HEM4100 ENGINE CONTROLLER uses 32-bit ARM micro-processor technology with precision parameters measuring, fixed value adjustment, time setting and threshold adjusting and etc. The

majority of parameters can be set using front panel and all the parameters can be set and monitored by using PC via USB port or RS485 port. With compact structure, simple connections and high reliability, it can be widely used in a number of automatic engine control system, which including water pump system, beacon system, air compressor, engineering machinery system and so on.

2.PERFORMANCE AND CHARACTERISTICS

Key characteristics are as below,

─ 132x64 LCD with backlight, multilingual interface (including English and Chinese languages) and easy operation interface;

─ Improved LCD wear-resistance and scratch resistance due to hard screen acrylic;

─ Silicon panel and pushbuttons for better operation in high and low temperature environment;

─ RS485 communication port enabling remote control, remote measuring, remote communication via ModBus protocol;

─ Equipped with CANBUS port and can communicate with J1939 engine. Not only can you monitoring frequently-used data (such as water temperature, oil pressure, speed, fuel consumption and so on)

of ECU machine, but also control start, stop, raising speed and dropping speed via CANBUS port;

─ 6-way analog sensors, 3-way fixed resistor type sensor, and 3-way flexible sensors, which can be configured as resistor/current/voltage type sensors;

─ Multiple temperature, pressure and level sensor curves can be used and user-defined directly;

─ Precisely collect various kinds of engine parameters and with comprehensive protection functions, such as engine high water temperature/low oil pressure, over speed and under speed protection

Functions;

─ Speed regulation function, which can control engine raise/drop speed manually;

─ With Idle/high speed switchover function;

─ All outputs are relay outputs;

─ Parameter setting: parameters can be modified and stored in internal FLASH memory and cannot be lost even in case of power outage;

─ Multiple crank disconnect conditions (engine speed and oil pressure) are optional;

─ Engine speed can be obtained by speed sensor or W/L of charging generator;

─ Widely power supply range DC (8~35)V, suitable for different starting battery voltage environment;

─ Event log, real-time clock, scheduled start & stop engine (can be set as start engine once a day/week/month whether);

─ With heater, cooler and fuel pump control function;

─ With maintenance function. Actions (warning or shutdown) can be set when maintenance time due;

─ All parameters used digital adjustment, instead of conventional analog modulation with normal potentiometer, with high reliability and stability;

─ Waterproof level of front panel IP65 due to rubber seal installed between the controller enclosure and panel fascia;

─ Metal fixing clips enable perfect performance in high temperature environment;

─ Modular design, flame retardant ABS plastic enclosure, pluggable connection terminals and embedded installation way; compact structure with easy mounting.

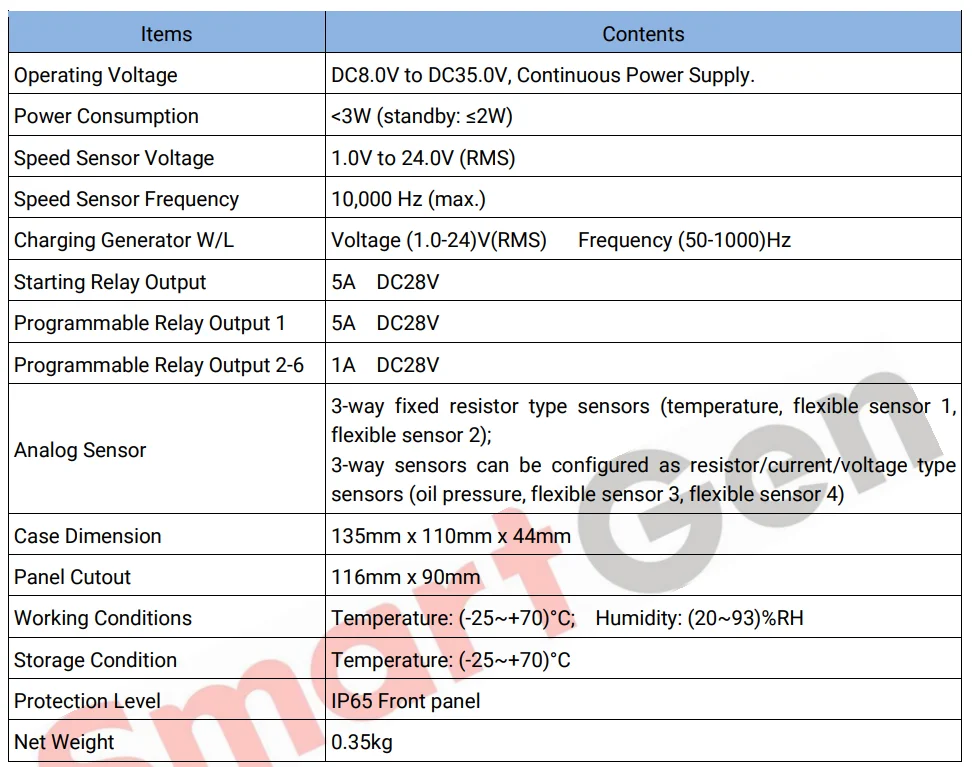

3.Technical Parameters

4 .OPERATION

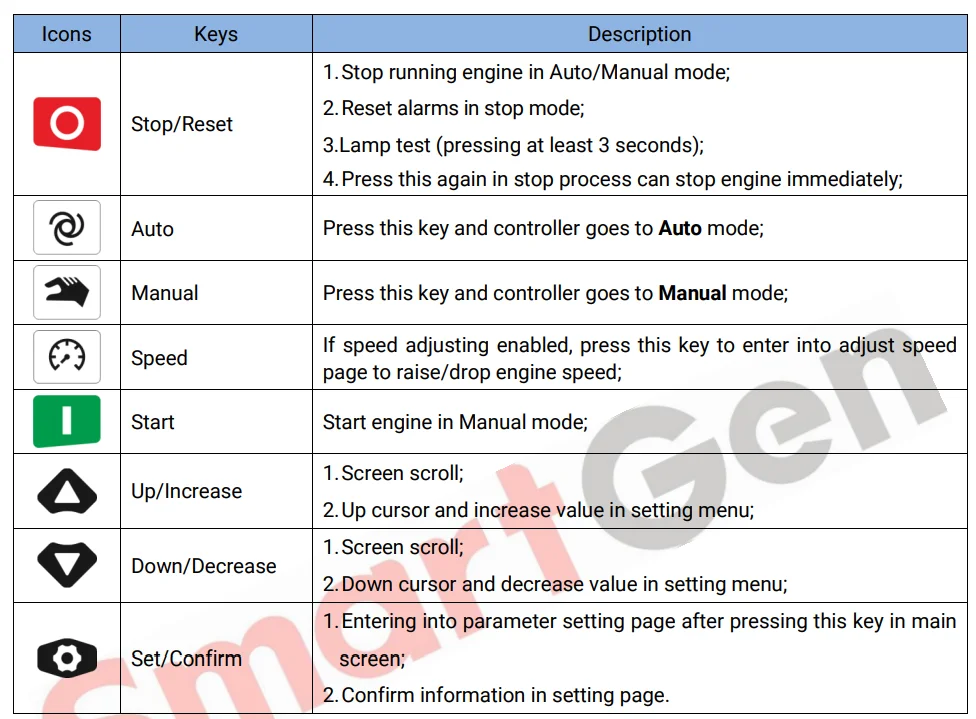

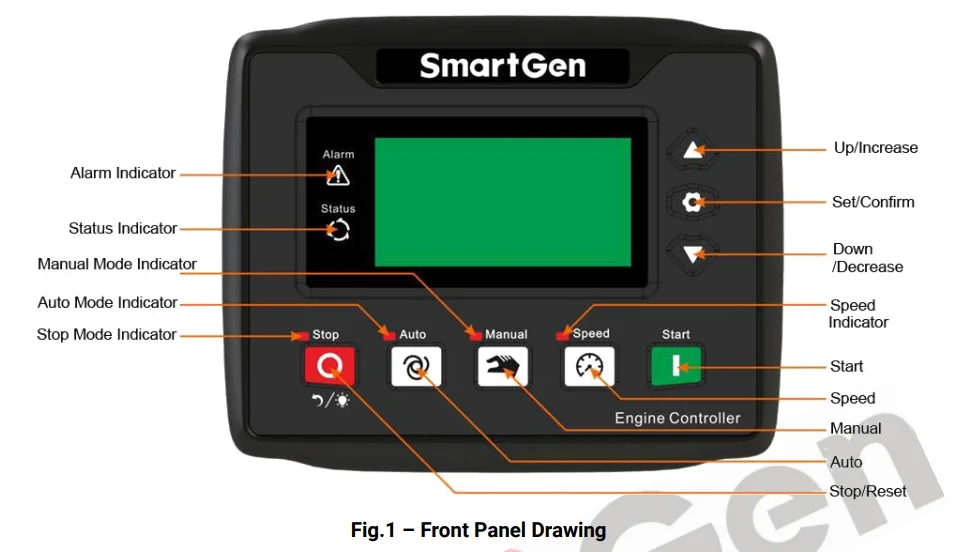

  KEY FUNCTIONS DESCRIPTION

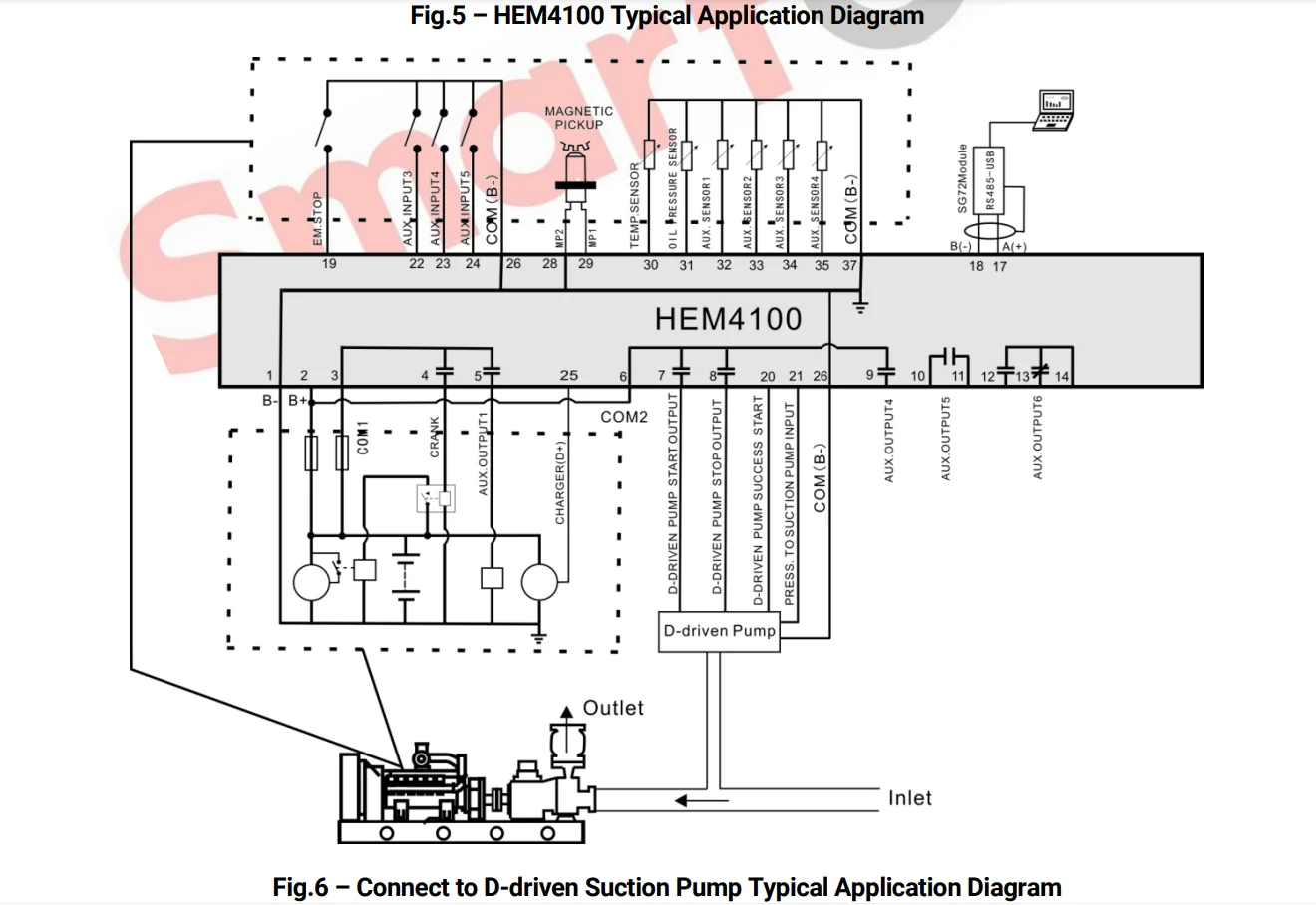

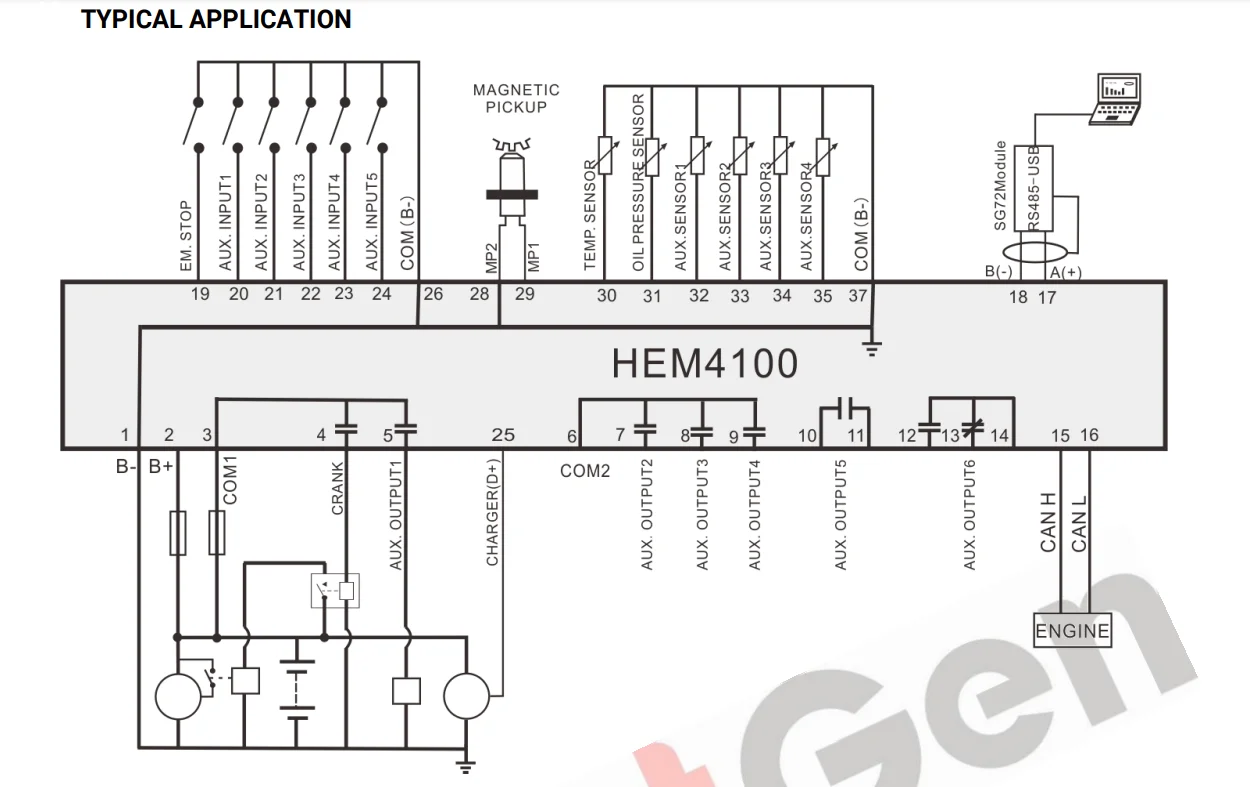

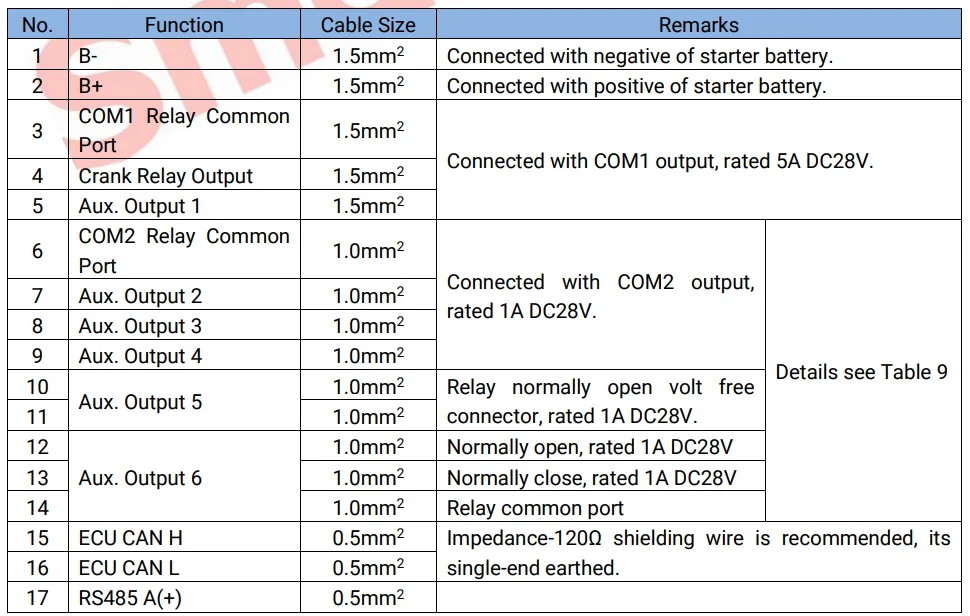

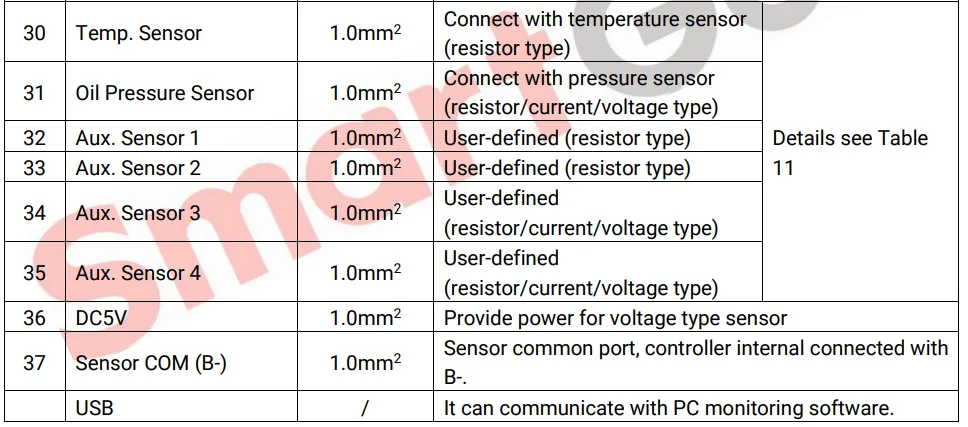

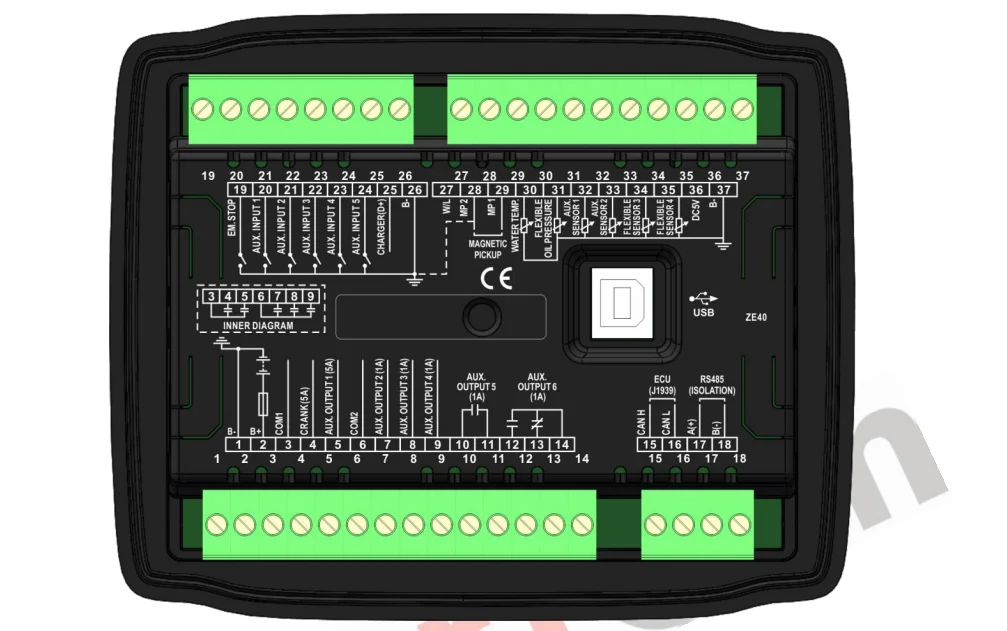

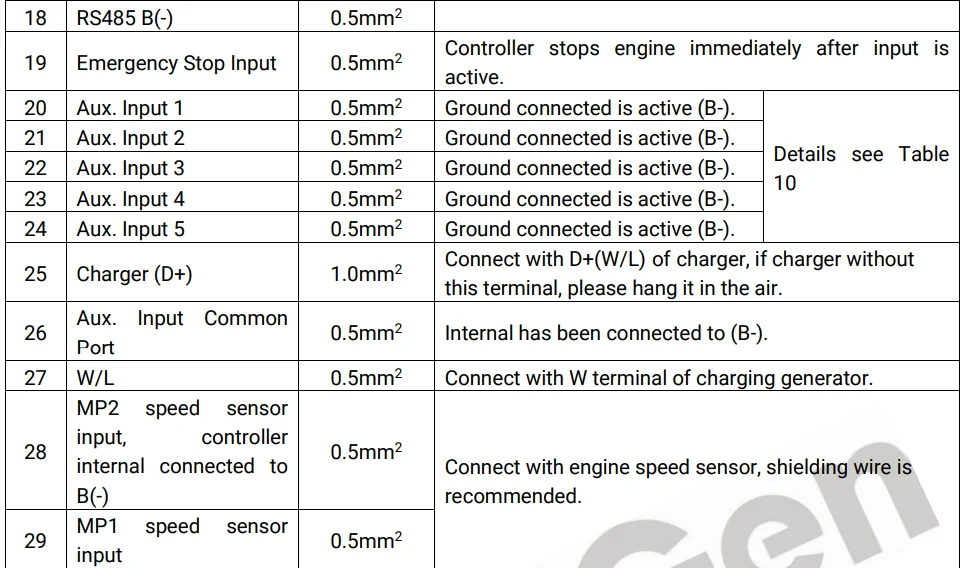

5. WIRINGS CONNECTION-Terminal Connection Description

6.COMMISSIONING

Please make the following procedures checking before commissioning,

a) Ensure all the connections are correct and wires diameter is suitable.

b) Ensure that the controller DC power has fuse, controller’s positive and negative connect to starting battery correctly.

c) Take proper action to prevent engine to crank disconnect (e. g. Remove the connection wire of fuel valve). If checking is OK, make the starting battery power on, controller will executive routine.

d) Press “start” button, engine will start. After the setting crank attempts, controller will send signal of crank failure; then press “stop” to reset controller.

e) Recover the action of stop engine start (e. g. Connect wire of fuel valve), press start button again, engine will start. If everything goes well, engine will normal run after idle running (if idle run be set).

During this time, please watch for engine’s running situations.

f) If there is any other question, please contact SmartGen’s service personnel.
