HENGE MD933 (3-Pack) +1 MD922 (1-Pack) MG Digital Metal Gear Servo for TREX 450

HENGE MD933 (3-Pack) +1 MD922 (1-Pack) MG Digital Metal Gear Servo for TREX 450


MD933 digital servo features:
- Use metal gears, especially use steel material in output gear, which has better intensity , abrasion resistance and accuracy, makes sure servo's output deviation very small after long time running
- Use high quality motors as FUTABA's, makes sure the servo's life longer, and tests prove it can continually run in high speed for 50 hours
- Use Japanese raw material to produce outer shell, which is more sturdy and durable and can bear 120 C temperature
- Rapid response control, better acceleration
- Very nice consistency, center error less than ±0.5 degree, angle ±40 degree, biggest ±60 degree, error less than ±0.5 degree
- Have overload current protection function, even if the output gear is blocked, motor and electronics component will not be damaged
- Suitable to be used in 450 dynamoelectric helicopters to control the inclined dishes and in fixed wing airplanes

Specifications:
- Operating voltage range: 4.5V—6.0V
- Operating temperature range: -20℃ to +60℃
- Operating speed: 0.10 sec/60℃ 6V, 0.12 sec/60℃ 4.8V
- Torque: 2.0kg.cm 6V, 1.8kg.cm 4.8V
- Idle current: 5mA at stopped
- Running current range: 50-150mA
- Block up to turn electric current: 600mA
- Dead band width:≤4usec
- Angle deviation: center :<±0.5°; angle ±40°, error :<±0.5°
- Bearing material: Metal
- Gear material: 4 metal gears and 1 nylon gear
- Connector wire length: 21cm
- Size: 22.5×11.5×24.6mm
- Weight: 12g

MD922 Digital Servo Features:
- Adopt metal gear, the gear accuracy is higher, Servo's output deviation is very small.
- Use Japanese raw material to produce outer shell.
- High accuracy drive plank, respond speed is less than 4 uses.
- High sensitivity and speed, make most rapid and accurate response to control signal
- Henge MD922 digital servo are especially designed for dynamoelectric helicopters to control the direction, and compatible with many gyroscopes such as Futaba 401, 601; MD922 is suitable to be used in 450 dynamoelectric helicopters to control the direction and high speed gliders.

Specifications:
- Work electric voltage: 4.5V-6.0V
- Work temperature: -20℃ to 60℃
- Speed: 0.07 sec/60° 6V, 0.09 sec/60° 4.8V
- Torque: 1.8kg.cm 6V, 1.6kg.cm 4.8V
- Work electric current: 50-180mA
- Block up to turn electric current: 600mA
- Dead band width: ≤3usec
- Ball bearing: Metal
- Wheel gear: 5 metal gears
- Signal line length: 22cm
- Size: 22.5*11.5*24.6mm
- Weight: 12g

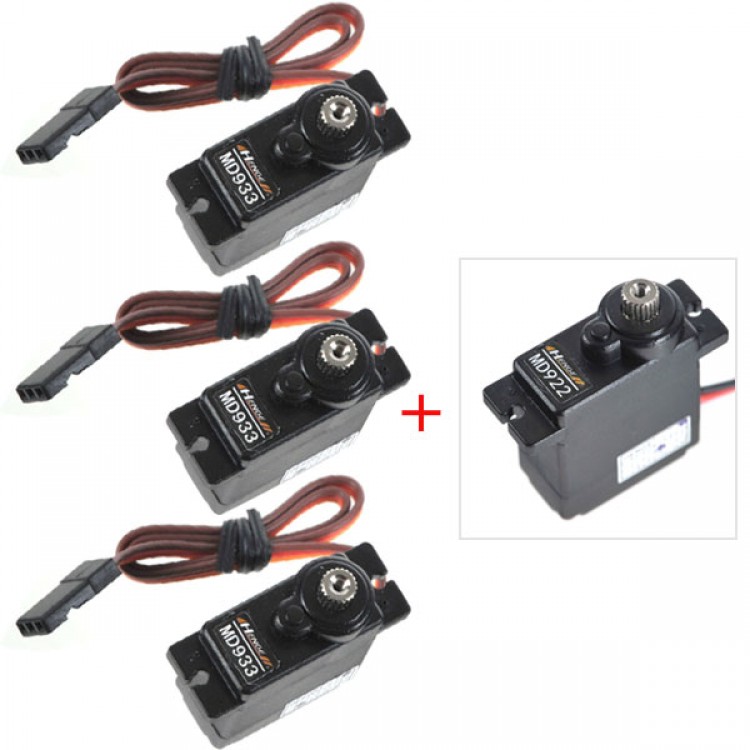

Package included:
- 3 x Digital Micro Metal Servo MD933
- 1 x Digital Metal Gear Servo MD922
