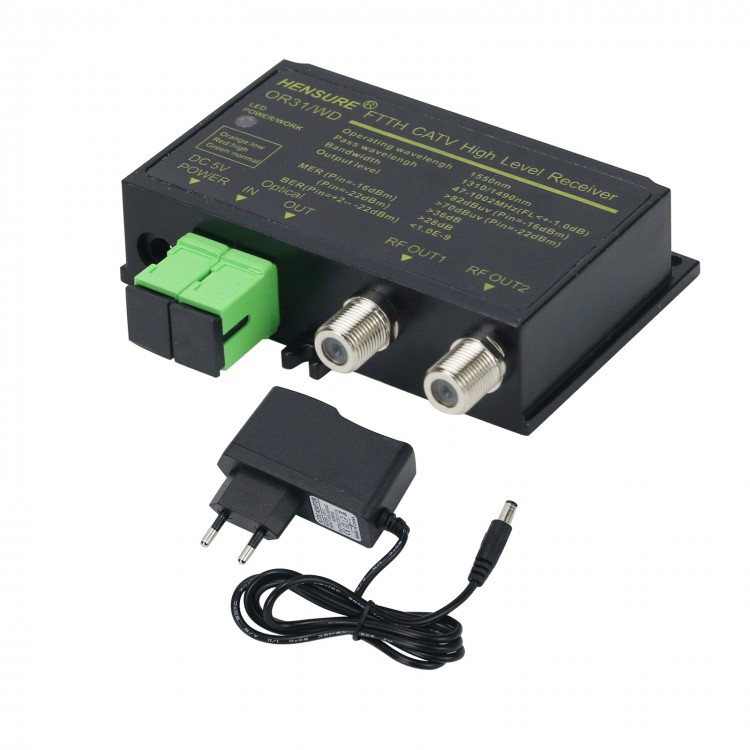

HENSURE OR31WD OR31/WD CATV Optical Receiver FTTH CATV High Level Receiver Optical Fiber WDM Device
Description:
It is a low-heat, high-reliability, high-index optical receiver developed to adapt to the diversification of FTTH. It is suitable for indoor optical receivers, buildings, building optical receivers, and indoor optical receivers for cable TV optical fiber transmission. It has a light-controlled AGC function, which can keep the OR31/WD output in the range of -15 to 0dbm in the optical input power to keep 80dBm constant, and the FTTB-031 output is not less than 102dbm.
Features:
- Integrated optical receiver module with high quality E-O photoelectric conversion and GaAs amplification is selected.
- Automatic optical AGC control, input optical power -15 to 0dBm and output level is unchanged. CTB and CSO are basically unchanged.
- All GaAs low noise amplifier in RF channel.
- Reliability: The average trouble-free working time is more than 40,000 hours.
- Low power consumption design: using high-efficiency switching power supply, it is specially designed for CATV to ensure high reliability and high stability of power supply. The power consumption of the whole device is less than 5W, which will greatly reduce power consumption when used on a large scale.
- Its parts are neat. The internal appearance is good, and the parts of OR31/WD are fixed without loosening, which meets the national standard.
- Built-in lightning protection device (TVS transient suppression diode) with strict lightning protection system to ensure the safe operation of the equipment.
- 220V power supply. Using external power supply, it is easy to maintain.
- With SC/APC interface to connect to optical fiber.
- RF interface with F-type metric and imperial types (by default).
Package Included:
- 1 x Optical Receiver
- 1 x Power Adapter
Note:
- The output port is imperial.
- The optical input port is SC/APC.
- The output port is the distribution type.
