HerelinkV1.1 Set Long-range HD FPV Digital Video Transmitter 2.4GHz Controller for FPV Racing Drones

HerelinkV1.1 Set Long-range HD FPV Digital Video Transmitter 2.4GHz Controller for FPV Racing Drones

Description:
- The Herelink HD Digital Video Transmission System V1.1 is an all-in-one solution for long-range HD video transmission.

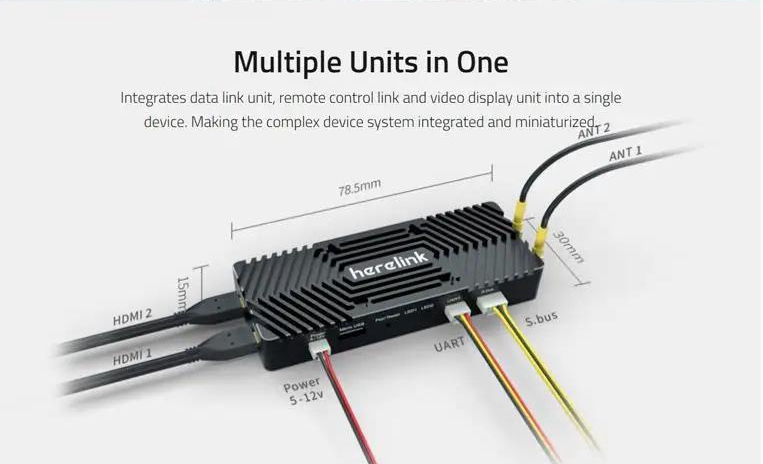

- The Herelink Air Unit 1.1 Integrates a data link unit, remote control link, and video display unit into a single device, making a complex device system integrated and miniaturized. This VTX unit features a signal transmission range up to 20KM,  minimum latency of 110ms, two HDMI inputs, and supports 720p 30fps, 1080p 30fps / 60fps video format. The Air Unit uses between 5-12v input power and has a single UART for connection to the flight controller or other Mavlink accessories. Now updated with Sd Card Slot and Ethernet port.

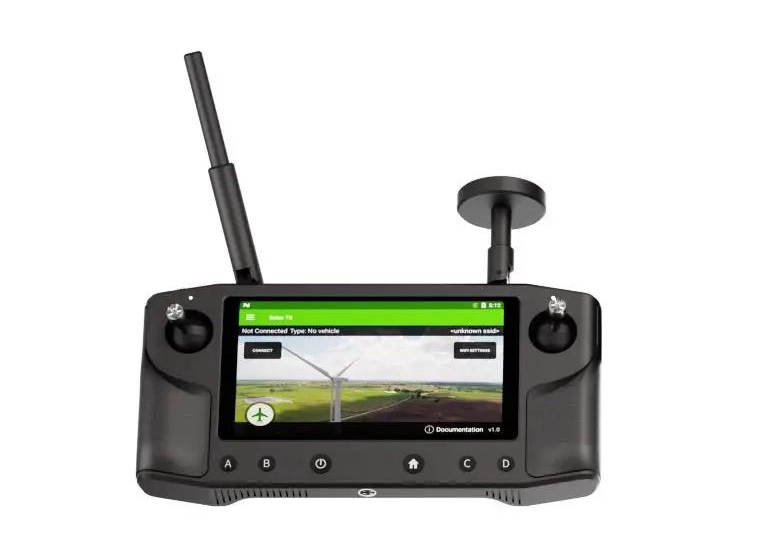

- The Herelink Controller 1.1 is a 2.4GHz radio controller with a built-in screen that allows users to get long-range HD video, telemetry, and control link up to a whopping 20km. It uses the 2.4GHz band on LTE over WIFI. This allows maximum transmission distance. Purported to have a range of 20km in FCC and 12km in CE. The large 5.5" screen displays a multitude of control options such as live images, autopilot configuration through the native QGround control, or other GCS applications based on the Mavlink system. Both the Air Unit and the Radio Controller are equipped with powerful Pinecone S1 processors with 4 cores at 2.2GHz and 4 more additional cores at 1.4GHz. This allows for tons of possibilities for app usage and future development. Now updated with a brighter screen at 1000 nit.

Features:
- Data link, remote control link, and video display
- For PineSync technology based on S1 processor
- 720p at 30fps or 1080p at 30/60fps resolution
- 1000 nit screen brightness
- For CubePilot Hex technology
- 2.4GHz frequency band
- 4W power consumption
- MMCX antenna jacks
- 110ms video delay
- 7-12V power input
- Indicator lights
- A7 + DSP SDR
- ETH interface
- Micro USB
- SD slot

Specification:
- Size: 217 x 106.5 x 31mm (not include external antennas and joy-sticks)
- Transmission distance: FCC 20km; CE / SRRC / MIC 12km
- Memory: Air unit LPDDR3 1GB; Controller LPDDR3 2GB
- SOC: 4 x Cortex A53, 2.2GHz / 4 x Cortex A53, 1.4GHz
- Storage: Air unit EMMC: 4GB; Controller EMMC: 8G
- Image resolution: 720p-30fps; 1080p-30/60fps
- Receive sensitivity: -99dBm at 20MHz BW
- Processor: for SoC – Pinecone S1
- Frequency band: 2.4GHz ISM
- GPU: 4 Core, for Mali-T860
- Video delay: 110 ms
- SDR: A7 + DSP
- Recovery: < 1s
- Weight: 536g

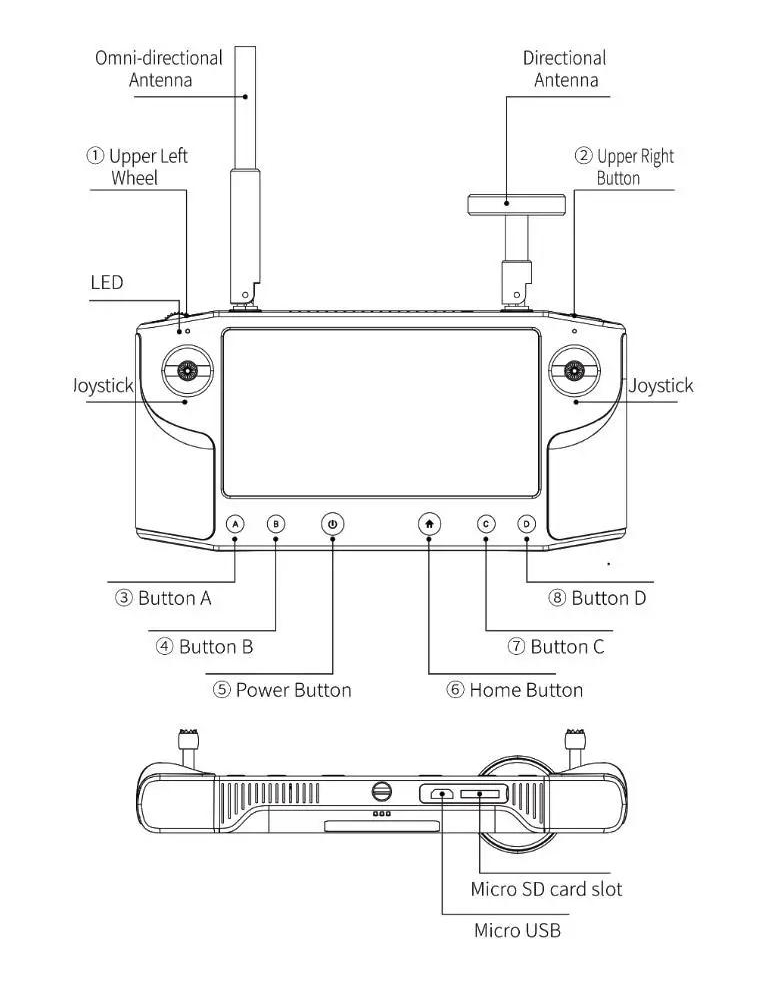

HERELINK Controller Unit:
- Power consumption: the average power consumption does not exceed 4W (only picture transmission work, medium screen brightness, WiFi off, GPS off)
- Remote: Hall effect gimbals with removable sticks x 2, scroll wheel x 1, bottom button x 6 with backlight, top button x 1 (right)
- External antenna: directional antenna (5dBi) x 1 detachable, omnidirectional antenna (2dBi) x 1 detachable
- Build-in antenna: built-in wifi antenna, built-in GPS antenna, external GPS antenna interface
- Wireless communication: Bluetooth / WIFI / GPS / 2.4G map transmission ground
- Screen: 5.46 inch, 1080P, 16 million colors, capacitive touch screen
- Interface: Micro USB x 1, Micro SD x 1 (supports maximum 64GB)
- Charging: support micro USB port 5v 2A current charging
- Indicator light: tricolor LED x 2 (upright and left corner)
- Audio: built-in speaker x 1, built-in microphone x 2
- Power: build-in 4950mAh Lipo battery
- Screen brightness: 1000nit

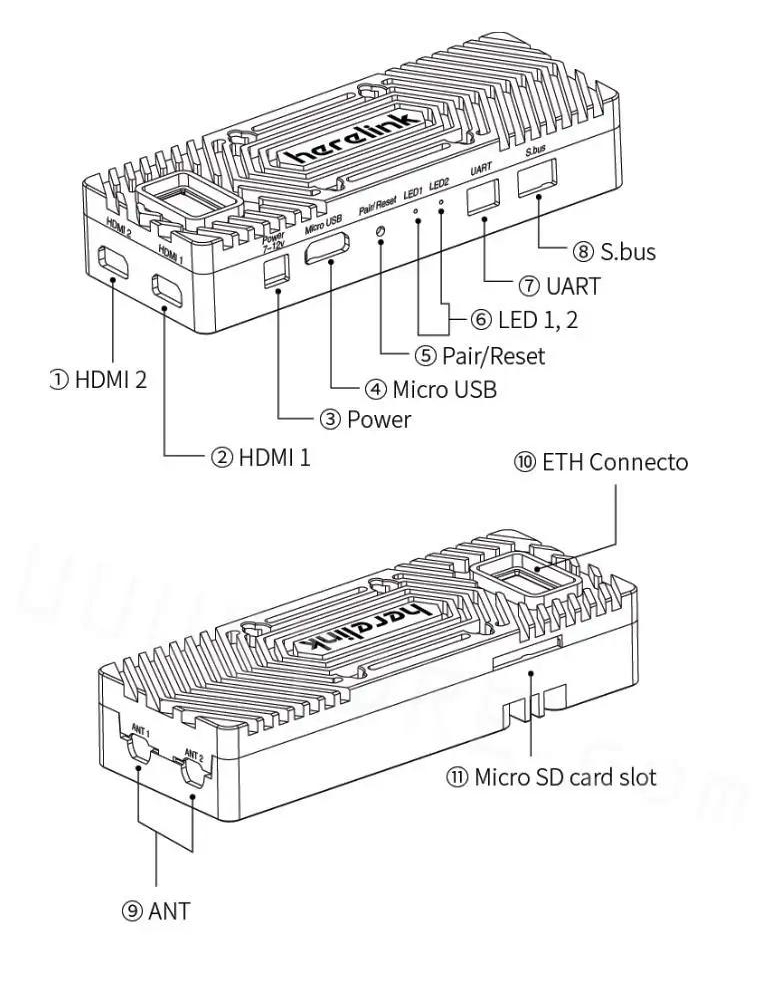

HERELINK Air Unit 1.1:
- Micro USB: used for debugging and upgrading, support OTG mode (no need for external power for USB device)
- Power Input: recommended supply voltage ~7V: minimum 6V, maximum 12V, and avoid sharing BEC with servos

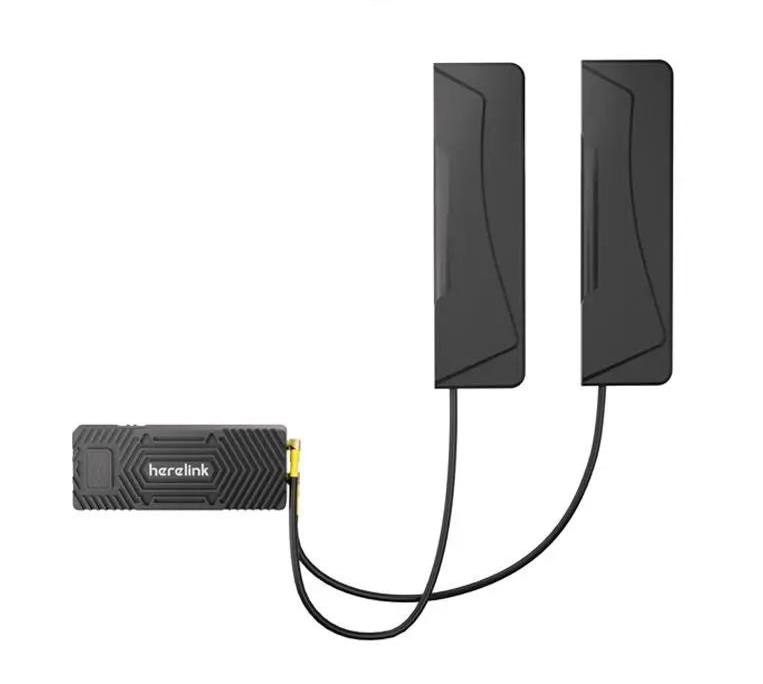

- MMCX antenna jack 1, 2: Used for signal transmission and ground communication
- ETH Interface (only supported by Air unit 1.1: Network protocol device access)
- Indicator light 1, 2: Used to indicate state for pairing and video transmission
- Power consumption: the average power consumption does not exceed 4W
- Manufacturer: HEXAERO PTE LTD. / HEX TECHNOLOGY LIMITED
- SD Slot (only supported by Air unit 1.1: For future usage)
- Micro HDMI-compatible 1: camera video signal input (recommend)
- S.bus interface: dual RC out, S.bus1, and S.bus2
- Micro HDMI-compatible 2: camera video signal input
- Button: used for pairing and state reset
- Signal bandwidth 20MHz / 10MHz
- Model: Herelink Air Unit 1.1
- UART interface: 3.3V UART
- FCC ID: 2A596-HX406210
- Size: 78.5 x 30 x 15mm
- Voltage rating: 7-12V
- IC: 28413-HX406210
- Weight: 98g

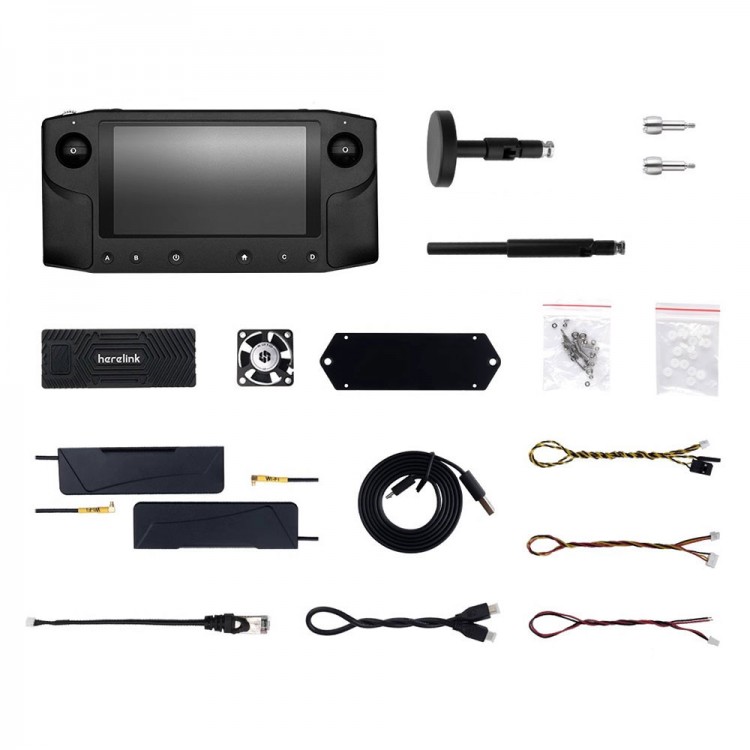

Package Included:
- 1 x Set of HerelinkV1.1
- 1 x ETH 4-Core Ethernet Cable
