HF2411 4G DTU Module RS232/485 to 4G/3G/GPRS IoT Communications Device 2411-cat1 Module
Features:
- Support LTE-TDD, LTE-FDD, WCDMA, TD-SCDMA and GPRS

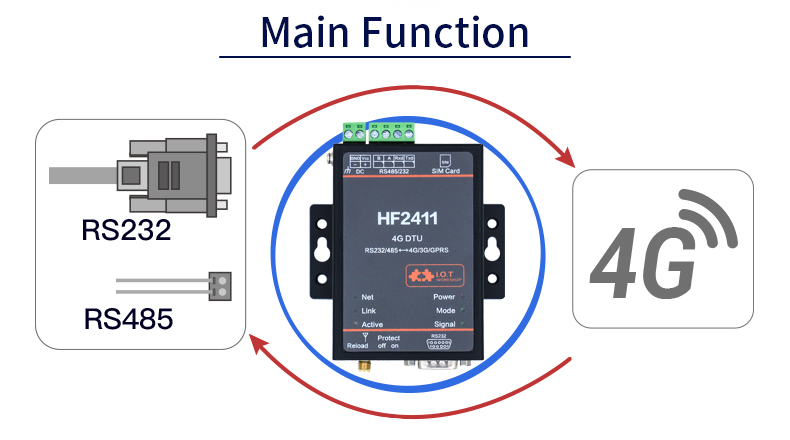

- Support RS232/RS485 to 2G/3G/4G Data Transmission, UART baud rate Up to 460800bps
- Supports Max 3 Channel TCP/UDP connections, Each Connection Supports 1400 Bytes of Data Cache
- Support Multiple Working Modes: Network Transparent Transmission Mode, HTTP Mode
- Support IOTService Tool, Remotely and Dynamically Modify Module Parameters
- Support SMS AT Command Configuration
- Supports Registration Packet, Heartbeat Packet Function, and Packet Supports Combination of ICCID, IMEI, IMSI, Software Version, GPRS Connection Status.
- Support NTP
- Support for Modbus TCP to Modbus RTU
- Support IOTBridge for Remote Control and Configuration
- Support IOTBridge Working Time Setting, For Example, Only Works From 10:00 to 10:30 to Save the Data Traffic
- Support for UART, Network OTA Upgrade Firmware
- Size: 95 x 65 x 25mm/3.7 x 2.6 x 1"
- 9 to 36VDC Wide Power Supply
Specifications:
System Information:
- Processor: for Cortex-M3
- Basic Frequency: 96MHz
- Operating System: for FreeRTOS
4G Interface:
- Transmit power: LTE-TDD: Class3 (23dBm+1/-3dB), LTE-FDD: Class3 (23dBm±2dB)
- Receiving Sensitivity: FDD B1: -99dBm (10M); FDD B3: -98dBm (10M); FDD B5: -99dBm (10M); FDD B8: -98dBm (10M); TDD B38: -98dBm (10M); TDD B39 : -98dBm (10M); TDD B40: -98dBm (10M); TDD B41: -98dBm (10M)
- LTE: LTE-TDD: Uplink and downlink ratio 2: max. 8Mbps (DL) / max. 2Mbps (UL); uplink and downlink ratio 1: max. 6Mbps (DL) / max. 4Mbps (UL). LTE-FDD: max. 10Mbps (DL ) / max 5Mbps (UL)
Serial Port:
- Number of ports: 1
- Interface standard: RS232: Immersion gold male DB9 connector, RS485: 5.08mm terminal (only one of the two serial port types of RS232/RS485 can be selected for communication)
- Data bits: 7, 8
- Stop bits: 1, 2
- Check Digit: None, Even, Odd
- Baud rate: TTL: 1200bps~460800bps
- Flow Control: No flow control, half duplex (RS485), hardware RTS/CTS, DSR/DTR (RS232)
Software:
- Configuration method: serial AT command, IOTService serial configuration software, IOTService network configuration software
- Firmware upgrade: serial or OTA upgrade
Basic Parameters:
- SIM card slot: standard larger bigger one (1.8V/3V)
- Size: 95 x 65 x 25mm/3.7 x 2.6 x 1"
- Working temperature: -40 to 70℃
- Storage environment: -45 to 105℃, 5~95%RH (no condensation)
- Input voltage: 9~36VDC
- Operating current: ~300mA at 9V
Package Included:
- 1 x HF2411 4G DTU
- 1 x 4G Suction Cup Antenna
- 1 x 12V Power Adapter

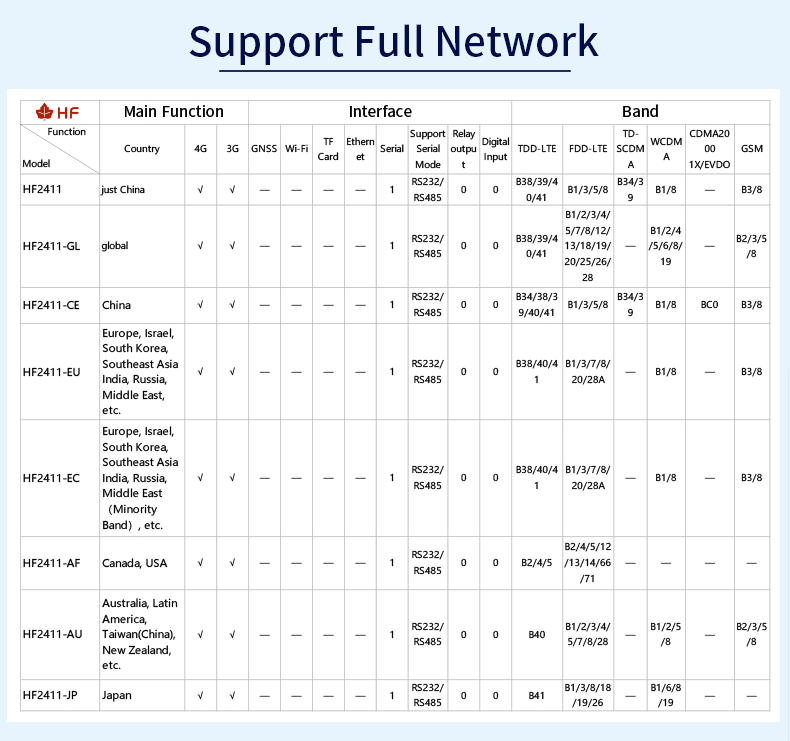

HF2411 Sub Model Specification:
For different countries, there are different 4G network, so before place order, you must check the network first. If the network is suitable, then choose of the right sub model.
