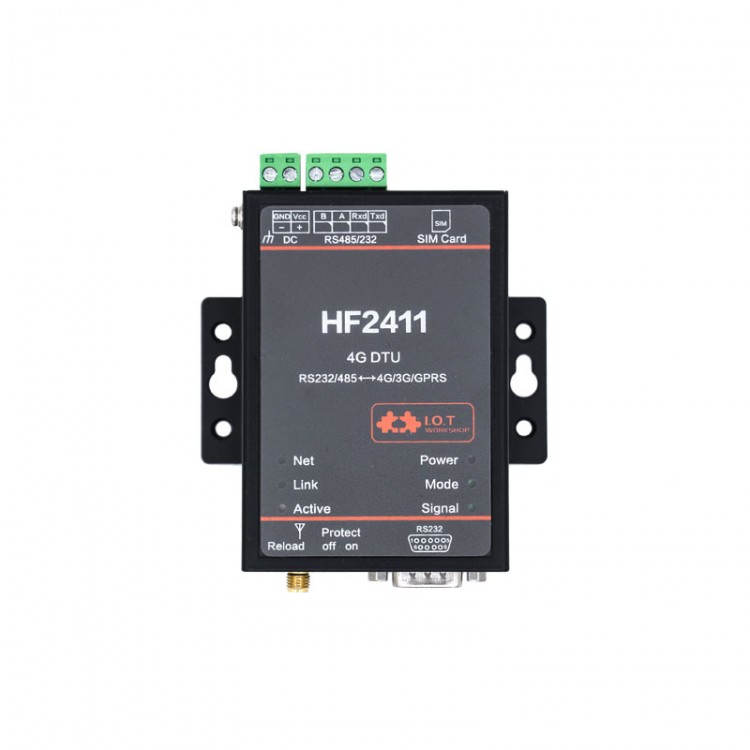

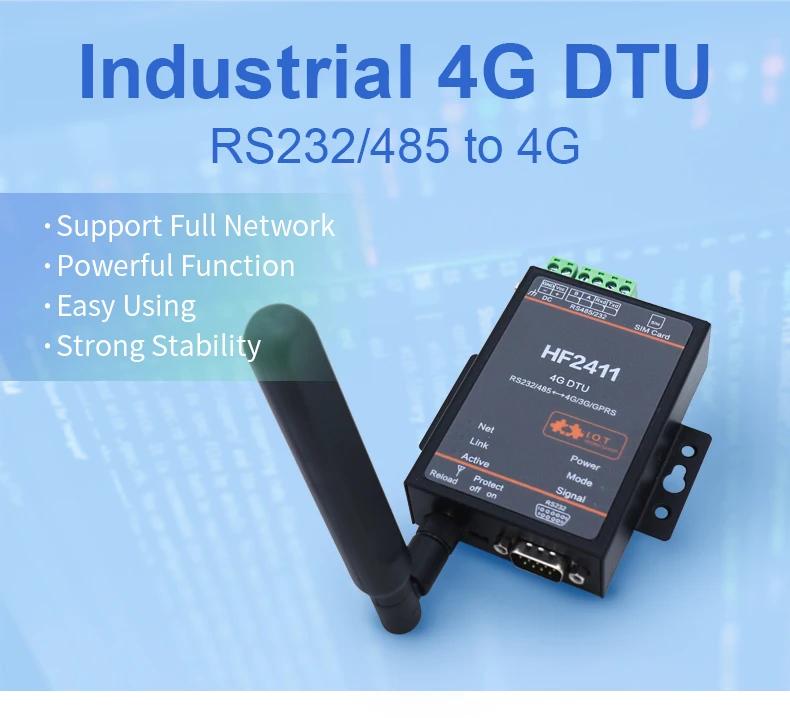

HF2411 IoT Communication DTU Module RS232/485 to 4G Data Transmission Unit with Sucker Antenna
Description:
- The HF2411 support for LTE-TDD, LTE-FDD, WCDMA, TD-SCDMA, GPRS full network. 4G network support maximum download data rate 150Mbps, upload data rate 50Mbps.

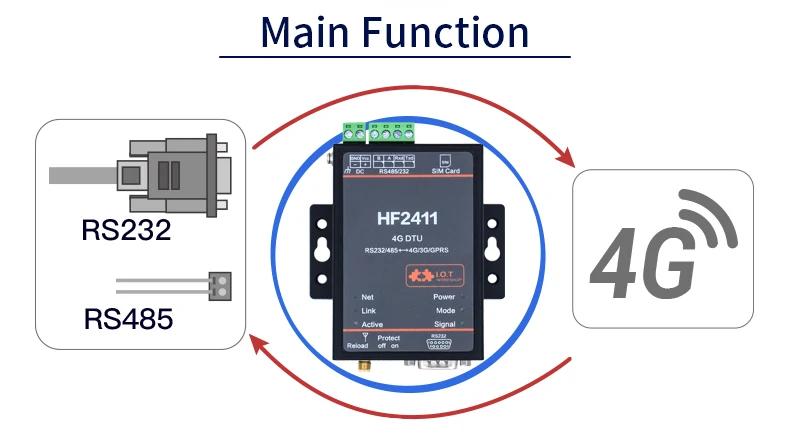

- The HF2411 support for TCPIP protocol, with its RS232/RS485 interface, it make traditional UART device easy connecting.

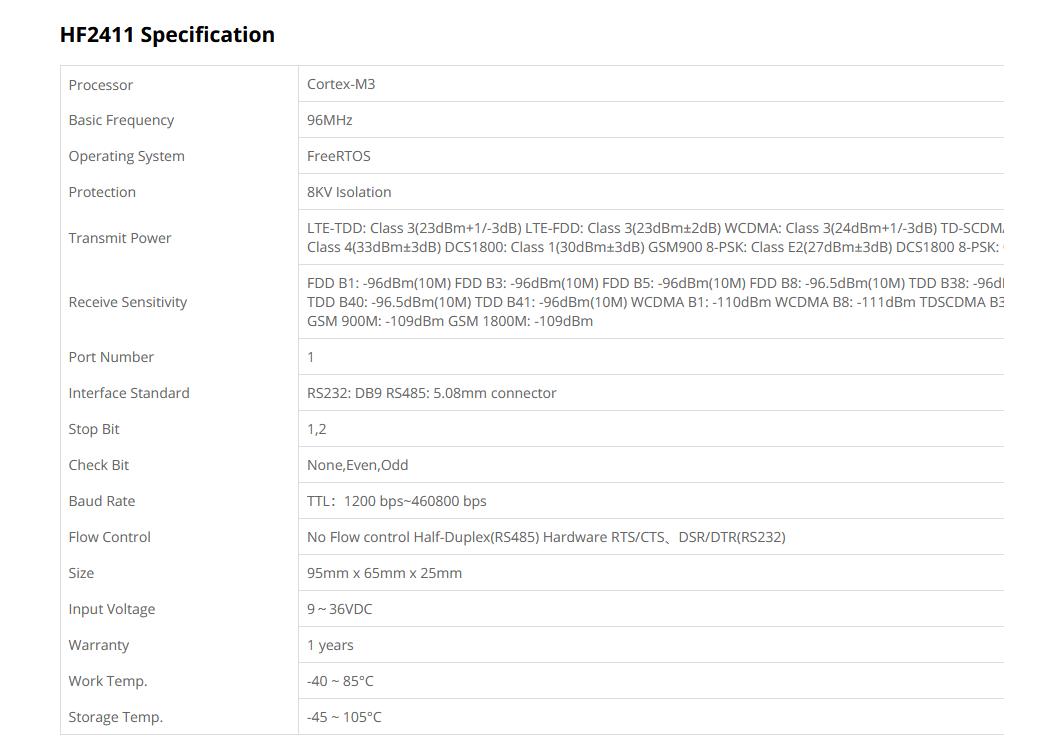

Features:
- Support for LTE-TDD, LTE-FDD, WCDMA, TD-SCDMA, GPRS.
- Support for RS232/RS485 to 2G/3G/4G data transmission, UART baud rate up to 460800bps.
- Supports up to 3 channels TCP/UDP connections, each connection supports 1400 bytes of data cache.
- Support multiple working modes: network transparent transmission mode, HTTP mode.

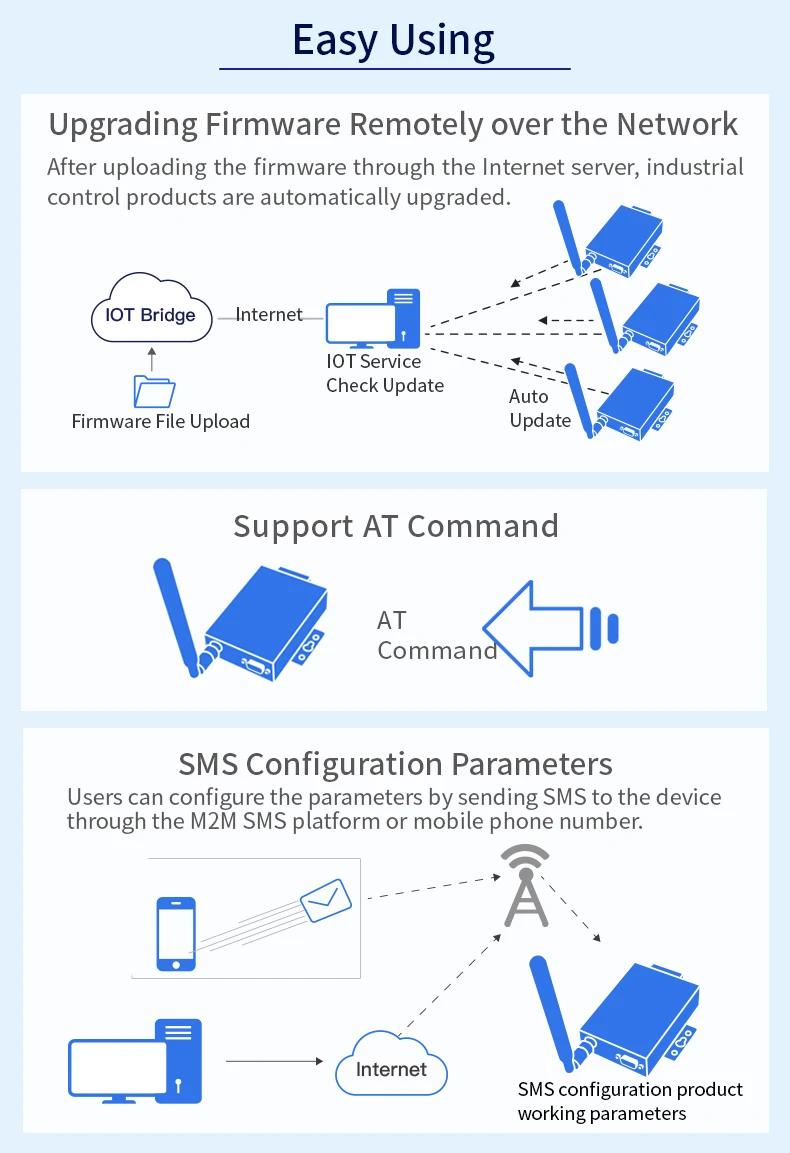

- Support for IOTService Tool, remotely and dynamically modify module parameters.
- Support SMS AT command configuration.
- Supports registration packet, heartbeat packet function, and packet supports combination of ICCID, IMEI, IMSI, software version, GPRS connection status.
- Support for NTP.
- Support for Modbus TCP to Modbus RTU.
- Support for IOTBridge for remote control and config.
- Support for IOTBridge working time setting, for example, only works from 10:00 to 10:30 to save the data traffic.
- Support for UART, network OTA upgrade firmware.

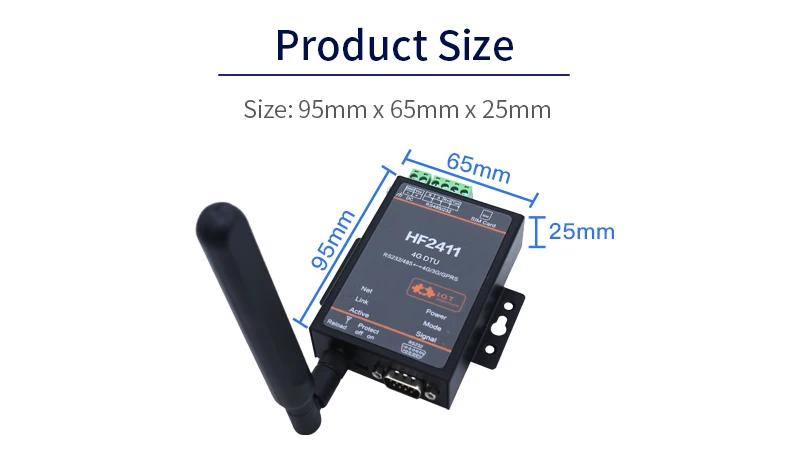

- Size: 95 x 65 x 25mm.
- 9~36VDC wide power supply.
Package Included:
- 1 x DTU Module
- 1 x Sucker Antenna
