HF6508 8-Ports Remote I/O Controller 8DI 8DO IoT Communication Device RS485 Serial Server to Ethernet DTU Module

Availability: In stock, usually dispatched in 1 business day

  • Price:$95.38
  • Price in reward points: 954 Reward Points: 10
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $93.47 $91.56 $88.70 $84.89 Contact US
Quantity:

HF6508 8-Ports Remote I/O Controller 8DI 8DO IoT Communication Device RS485 Serial Server to Ethernet DTU Module

Description:

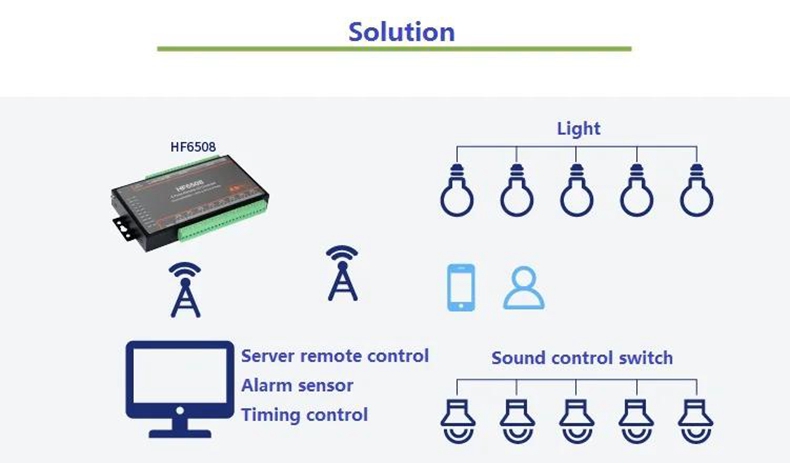

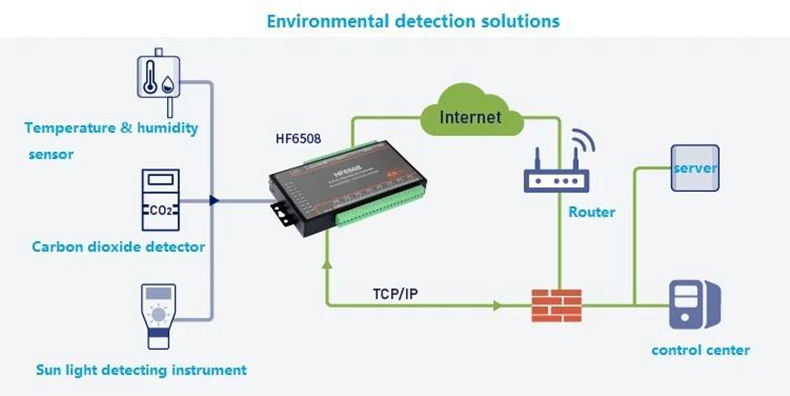

- HF6508 is a controller that uses Ethernet for remote input (DI), output (DO) control, and analog input (AI) acquisition. This product has added P2P functionality, allowing remote relay control, switch quantity collection, and analog quantity collection to be achieved anywhere through PC or mobile P2P software.

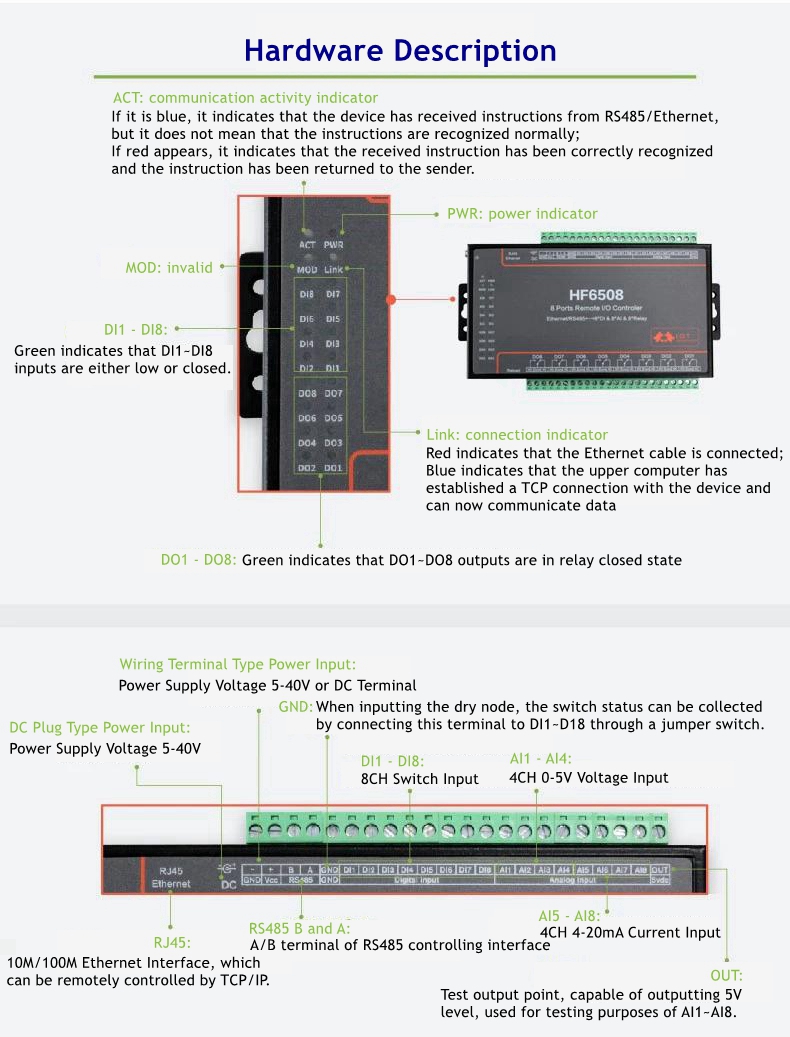

- Contains 8 DI, 8 DO, and 8 AI inputs. Among them, DI supports dry nodes (switch quantity) and wet nodes (voltage quantity), with optocoupler isolation; DO is a relay output with control capability of 10A 250V or 10A 30V; AI analog signals can be voltage, such as 0-5V, 0-10V, etc., or current, such as 4-20mA, or resistive sensors, such as temperature sensors, etc.

Features:
- Support TCP/IP/Telnet /Modbus TCP protocol.
- Support RS485 transmission use Modbus protocol to control 8 DIs, 8 AI interfaces and control 8 DOs support STA/AP/AP+STA mode.
- Support Modbus RTU and Modbus TCP protocol.
- Support 10 / 100M Ethernet adaptation.
- Support web page, IOT Service PC software easy configuration.
- Support industrial operating temperature support industrial operating temperature: -40 to +85℃.
- Support web page, PC software IOT Service configuration
- Support web OTA wireless upgrade
- DI input voltage range 3 ~ 30V, AI input voltage range 0 ~ 5V, input current range 0 ~ 25mA
- 8 channels analog quantity input: in default the first 4 channels are 0~5V voltage input, the after 4 channels are 0 ~ 25mA.

Specification:

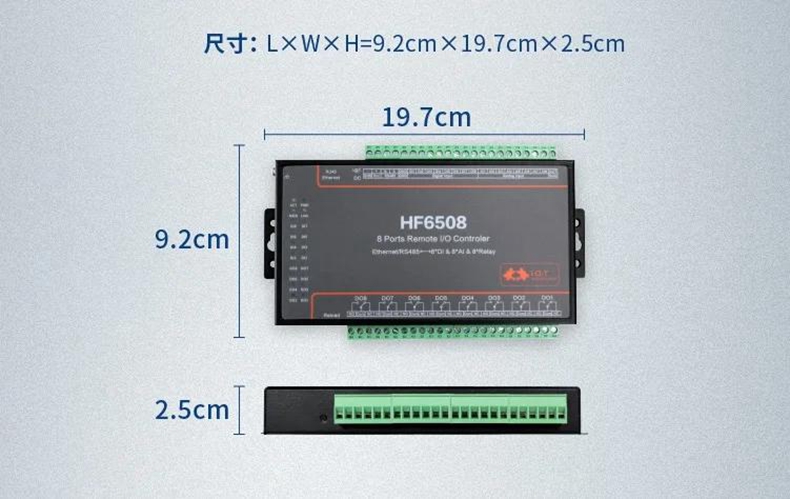

- Product size: 9.2 x 19.7 x 2.5cm
- Software:
  Upper layer protocol: for Modbus TCP/Modbus RTU
  Bottom communication: Ethernet, RS485
- Relay transmission speed (that is response time): <30ms
- AI input form:
  Current input: 4 - 20mA
  Voltage input: 0 - 5V, 0 - 10V
  Resistor input: 0 - 10K, resistor-type temperature and humidity sensor, etc.
- Power consumption: < 124mA at 24V (relay in non-engaged state)
- Operating temperature: -40 ~ 85℃
- Storage temperature: -45 ~ 165℃
- Humidity range: 5 - 95% RH

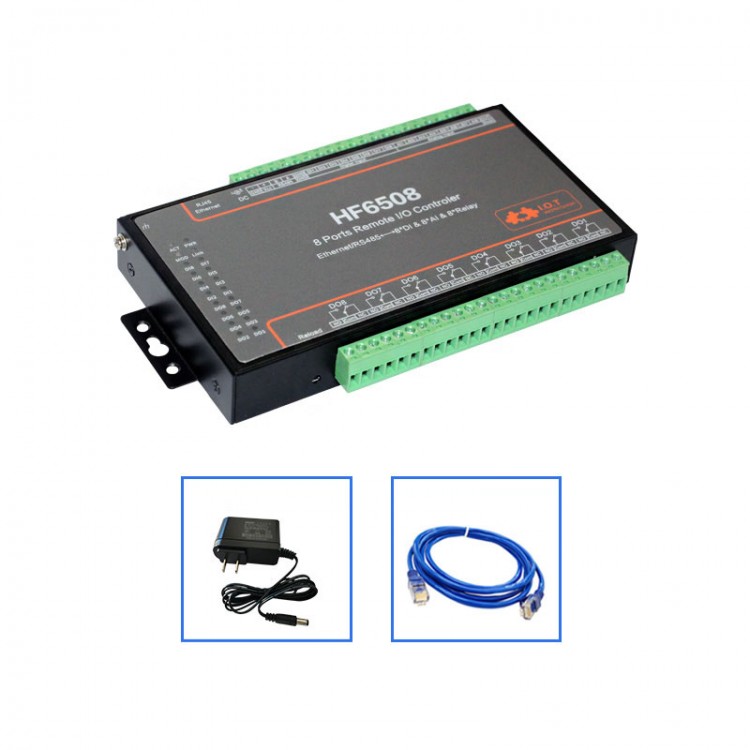

Package Included:
- 1 x Remote I/O Controller
- 1 x 12V Power Adapter
- 1 x Network Cable
