HG-688X 5.1CH Audio System All Digital Audio Decoder USB Sound Card HDMI Optical Coaxial For DTS/AC3/WAV
Description:
HG-688X is a digital audio decoder specially developed for 5.1-channel surround system for HIFI audio system and home theater system. It supports for Dolby Digital AC3, DTS, HDCD, PCM, Dolby digital, Dolby Prologic II and other digital audio format decoding. It supports U disk WAV, DTS, AC3, APE, FLAC and other lossless music. Support computer USB sound card function, support panel operation and infrared remote control operation. All inputs can output sound through the 5.1 interface, which can be connected to power amplifiers and active speakers.
Features:
- High-speed USB interface. Takes three seconds to turn it on and play
- Support lossless playing for U disk. Support FAT32 system format, and U disk up to 128G. Multiple folders can be built in the root directory of the U disk, and music files can be placed under the folders
- It becomes a computer USB-PC sound card through the USB interface. Connect your computer with the 5.1 audio decoder through a data cable, and turn the decoder into a USB sound card. Please switch the decoder input to PC state, then the indicator light will be on. Then the computer installs the CM108 driver. After the installation is complete, other settings of the sound card do not need to be modified. Just turn on the light in front of the SPDIF output
- High-fidelity wireless Bluetooth transmission
- Both hard decoding and soft decoding are supported. Suitable for source devices such as Blu-ray players, PS, computers, set-top boxes, network players, etc.
- Applicable to all kinds of power amplifiers, set-top boxes, TV connection audio, used to set up 2.0/5.1 surround sound cinema system
- Free selection/switching of multiple signals. Selectable Bluetooth input signal, ARC input signal, HDMI input signal, coaxial input signal, optical input signal, and U disk input signal
- Super decoding, automatic signal identification. Automatic detection and decoding, high-quality sound quality and low noise. Support multiple source input (optical, coaxial, HDMI, PC)
- With USB interface. Audio formats supported by U disk include DTS, AC3, WAV, APE, FLAC and MP3. Can provide charging for mobile devices
- USB-PC computer system supports for Windows Vista, Windows XP, Win7, Win8 and Win10
- Support infrared remote control, visual menu setting interface. Power-off memory function. After restarting, it will automatically switch to the last used signal channel, and the USB will play the files before the power failure
- Multi-channel professional digital audio processing chip
- CPU works at a high speed
Applications:
- This product can be connected with the optical fiber and coaxial digital audio output interface of DVD players, Blu-ray players, power amplifiers, network players, set-top boxes, for PS2, for XBOX360, PC, TV and many other entertainment equipment 2.0/5.1 audio equipment. And then realize the creation of a home 5.1 surround theater system.
- This product supports U disk WAV, DTS, AC3, APE, FLAC and other lossless music. Support computer USB external digital 5.1 sound card; support Bluetooth 5.0 wireless connection; can connect electronic devices with Bluetooth transmission. Support TV ARC funciton (requires TV to support ARC)
Specifications:
- Panel material: black metal (powdered oxidation)
- Product attributes: Bluetooth version (pre-player decoder)
- Volume control: button, infrared remote control

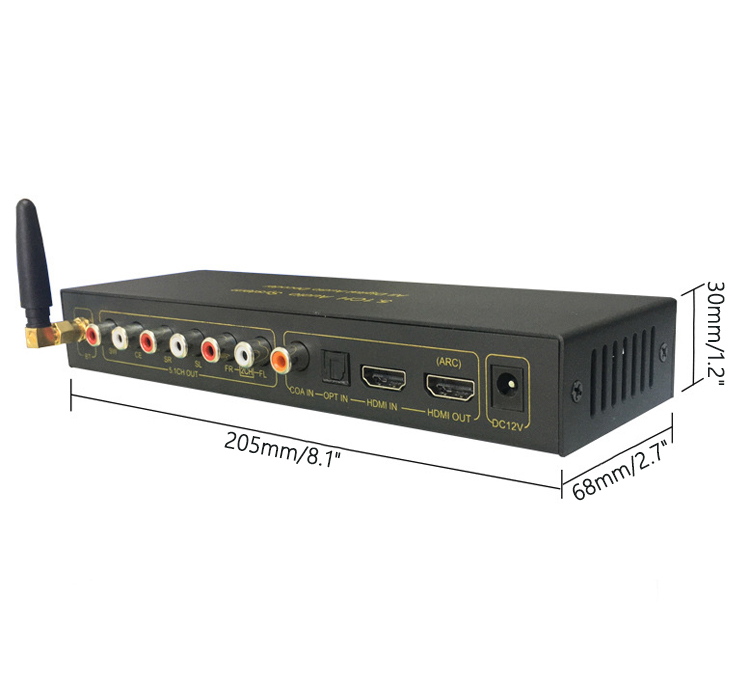

- Dimensions: 205 x 30 x 68mm/8.1 x 1.2 x 2.7"
- Input interface: usb, optical, coaxial, bluetooth, HDMI, ARC
- Output interface: 5.1 RCA socket, HDMI
- HDMI processing: For Lontium LT8641SXE HDMI audio separation chip
- Optical fiber coaxial: Crystal CS8416 supports 32bit/192KHz
- U disk decoding: support 24b/44.1K, 48K and 96K
- Sound card chip: CM108 digital sound card
- Audio return: support TV HDMI ARC audio return transmission out
- Sampling rate: up to 192KHz/24bit
- Distortion: <0.001%
- Output level: 2V
- Bluetooth version: V5.0
- Power management: DC-DC with wide power supply (LM2596-5.0V)

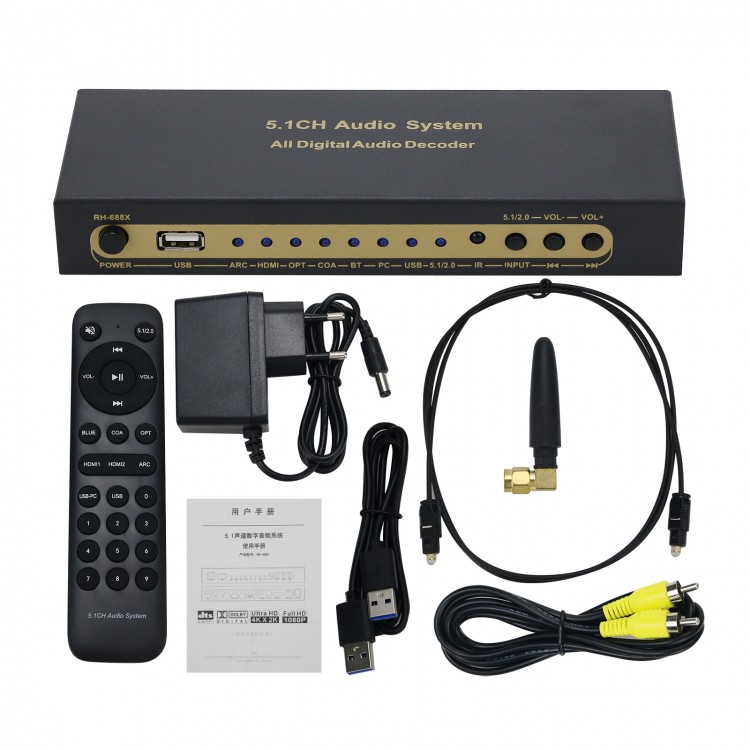

Package Included:
- 1 x DAC Host
- 1 x Power Adapter
- 1 x Fiber Optic Cable
- 1 x IR Remote Control
- 1 x Coaxial Cable
- 1 x USB Cable
- 1 x Bluetooth Antenna
- 1 x User Manual
