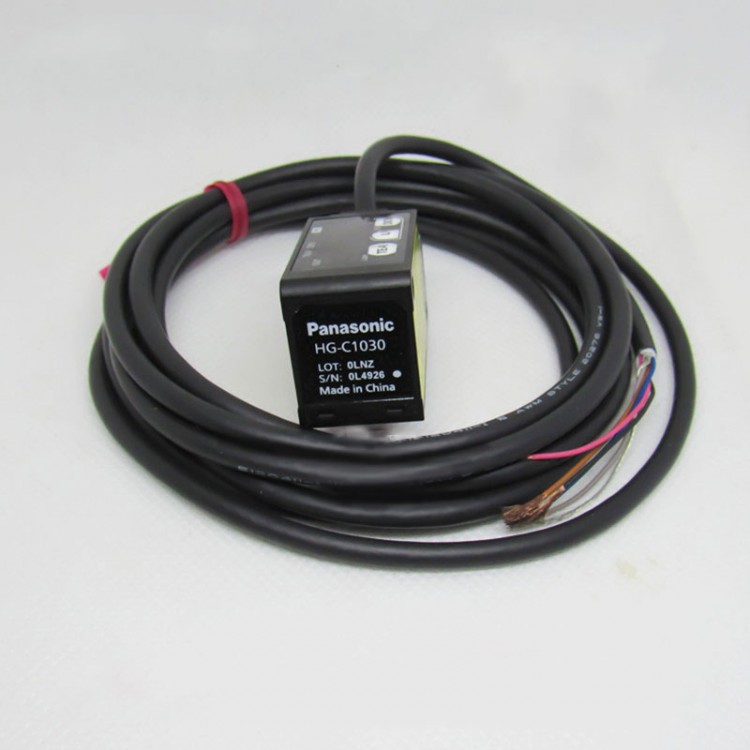

HG-C1030 NPN Micro Laser Measurement Sensor Displacement Sensor for Pansonic

Availability: In stock, usually dispatched in 1 business day

  • Price:$193.75
  • Price in reward points: 1938 Reward Points: 19
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $189.88 $186.00 $180.19 $172.44 Contact US
Quantity:

HG-C1030 NPN Micro Laser Measurement Sensor Displacement Sensor for Pansonic



ItemPerformance characteristics


Measurement Center Distance 30mm 1.181 in
Measuring Range±5mm 0.197 in
Repeatability10 μm 0.394 mil
Linearity±0.1%F.S.
Temperature Characteristics 0.03% F.S. /℃
Light SourceRed semiconductor laser Class 2 (JIS / IEC / GB) / Class II (FDA)(Note)
Max. output: 1mW
emission peak wavelength: 655nm 0.026 mil
(Note) This product complies with 21 CFR 1040.10 and 1040.11 Laser Notice No. 50, dated June 24, 2007, issued by CDRH (Center for Devices and Radiological Health) under the FDA (Food and Drug Administration).
Beam Diameterø50 μm 1.969 mil approx.
(Note) This is the size in the measurement center distance. These values were defined by using 1 / e2 (13.5% approx.) of the center light intensity. Due to leak light outside the specified area, the reflectance around the detecting point may be higher than at the point and this may affect the measurement value.
Supply Voltage 12 to 24V DCplus or minus 10% Ripple P-P 10%
Current Consumption40 mA or less (at 24V DC supply voltage)
65 mA or less (at 12V DC supply voltage)
Note : Specifications have been changed from shipment in August, 2016. For shipment before July 2016 : 40 mA or less (at 24 V DC supply voltage), 60 mA or less (at 12 V DC supply voltage)
Control OutputNPN open-collector transistor
- Maximum sink current: 50mA
- Applied voltage: 30V DC or less (Between control output to 0V)
- Residual voltage: 1.5V or less (At 50mA sink current)
- Leakage current: 0.1 mA or less
Control Output: Output OperationEither Light-ON or Dark-ON
Control Output: Short-Circuit ProtectionIncorporated (Auto reset type)
Analogue Output: Analog Voltage Output• Output range: 0 to 5 V (at alarm: +5.2 V)
• Output impedance: 100Ω
Analogue Output: Analog Current Output• Output range: 4 to 20mA (at alarm: 0mA)
• Output impedance: 300Ω or less
Note : Analog current output has been added from shipment in August 2016.
Response TimeSwitchable between 1.5 ms / 5 ms / 10 ms
External InputNPN non-contact input
- Input conditions
Invalid: +8 to +V DC or Open
Valid: 0 to +1.2V DC
- Input impedance: 10kΩ approx.
Pollution Degree 2
Operating Altitude2,000 m 6561.680 ft or less
ProtectionIP67 (IEC)
Ambient Temperature-10 to +45 ℃ -14 to 113 ℉ (No dew condensation or icing allowed), Storage: -20 to +60 ℃ -4 to 140 ℉
Ambient Humidity35 to 85% RH, Storage: 35 to 85% RH
Ambient IlluminanceIncandescent light: 3,000 ℓx or less at the light-receiving face
Vibration Resistance10 to 55 Hz (period: 1 min.) frequency, 1.5 mm 0.059 in double amplitude in X, Y and Z directions for two hours each
Shock Resistance500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each
Cable5-core composite cable, 2 m 6.5617 ft long
Cable ExtensionExtension up to total 10 m 393.701 ft is possible with 0.3 mm2, or more, cable.
MaterialEnclosure: Aluminum die-cast
Front cover: Acrylic
Weight (Typ.)

Net weight: 35 g approx. (without cable), 85 g approx. (including cable)
