Description:

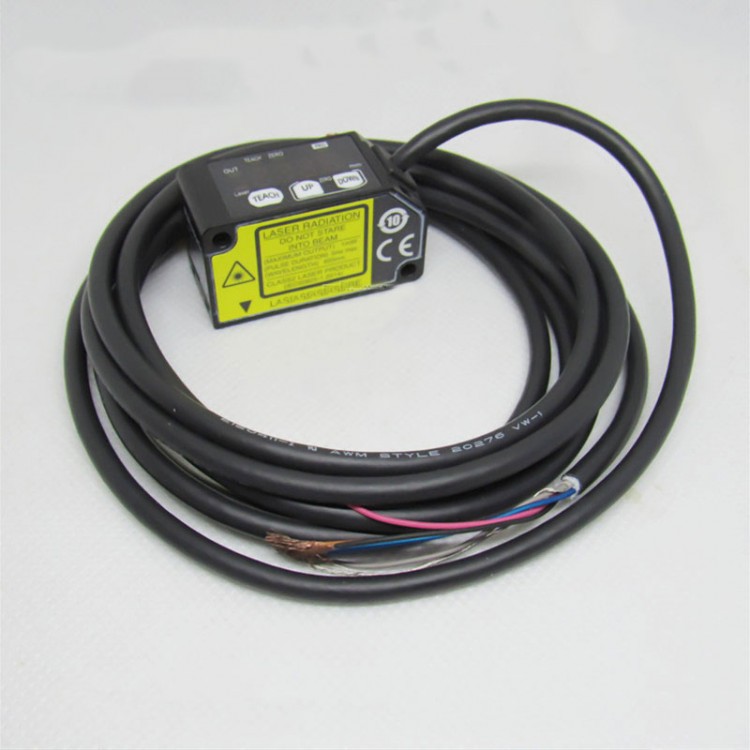

- HG-C series micro laser distance sensors provides high-end performance in a small lightweight package. This sensor not only indicates measured values in mm, but also outputs analog voltage. The data can be used for various calculations and storage when the output is sento to a PLC + analog unit. Also, the external input can be configured to perform one of four functions: zero adjustment, teaching, laser ON/OFF or trigger function selection.
| Item | Specifications |
|---|---|
| Product Number | HG-C1050 |
| Part Number | HG-C1050 |
| Applicable standard | EMC Directive Compliance, FDA Standard |
| Measurement center distance | 50mm 1.969 in |
| Measuring range | ±15mm 0.591 in |
| Repeatability | 30 μm 1.181 mil |
| Linearity | ±0.1%F.S. |
| Temprerature characteristics | 0.03% F.S. /℃ |
| Light source | Red semiconductor laser Class 2 (JIS / IEC / GB) / Class II (FDA)(Note) Max. output: 1mW emission peak wavelength: 655nm 0.026 mil (Note) This product complies with 21 CFR 1040.10 and 1040.11 Laser Notice No. 50, dated June 24, 2007, issued by CDRH (Center for Devices and Radiological Health) under the FDA (Food and Drug Administration). |
| Beam diameter | ø70 μm 1.1811 mil approx. (Note) This is the size in the measurement center distance. These values were defined by using 1 / e2 (13.5% approx.) of the center light intensity. Due to leak light outside the specified area, the reflectance around the detecting point may be higher than at the point and this may affect the measurement value. |
| Supply voltage | 12 to 24V DCplus or minus 10% Ripple P-P 10% |
| Current consumption | 40 mA or less (at 24V DC supply voltage) 65 mA or less (at 12V DC supply voltage) Note : Specifications have been changed from shipment in August, 2016. For shipment before July 2016 ： 40 mA or less (at 24 V DC supply voltage), 60 mA or less (at 12 V DC supply voltage) |
| Control output | NPN open-collector transistor - Maximum sink current: 50mA - Applied voltage: 30V DC or less (Between control output to 0V) - Residual voltage: 1.5V or less (At 50mA sink current) - Leakage current: 0.1 mA or less |
| Control output:Output operation | Either Light-ON or Dark-ON |
| Control output:Short-circuit protection | Incorporated (Auto reset type) |
| Analogue output : Analog voltage output | • Output range: 0 to 5 V (at alarm: +5.2 V) • Output impedance: 100Ω |
| Analogue output : Analog current output | • Output range: 4 to 20mA (at alarm: 0mA) • Output impedance: 300Ω or less Note : Analog current output has been added from shipment in August 2016. |
| Response time | Switchable between 1.5 ms / 5 ms / 10 ms |
| External input | NPN non-contact input - Input conditions Invalid: +8 to +V DC or Open Valid: 0 to +1.2V DC - Input impedance: 10kΩ approx. |
| Pollution degree | 2 |
| Operating altitude | 2,000 m 6561.680 ft or less |
| Protection | IP67 (IEC) |
| Ambient temperature | -10 to +45 ℃ -14 to 113 ℉ (No dew condensation or icing allowed), Storage: -20 to +60 ℃ -4 to 140 ℉ |
| Ambient humidity | 35 to 85% RH, Storage: 35 to 85% RH |
| Ambient illuminance | Incandescent light: 3,000 ℓx or less at the light-receiving face |
| Vibration resistance | 10 to 55 Hz (period: 1 min.) frequency, 1.5 mm 0.059 in double amplitude in X, Y and Z directions for two hours each |
| Shock resistance | 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each |
| Cable | 5-core composite cable, 2 m 6.5617 ft long |
| Cable extension | Extension up to total 10 m 393.701 ft is possible with 0.3 mm2, or more, cable. |
| Material | Enclosure: Aluminum die-cast Front cover: Acrylic |
| Weight | Net weight: 35 g approx. (without cable), 85 g approx. (including cable) |
