Tags: HG-S309 Signal Generator
Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $102.99 | $100.89 | $97.73 | $93.53 | Contact US |
- HG-S309 is updated LB02.This instrument has all the basic functions of the corresponding key, enter directly. Two connector terminals no longer have to rush to change jack excludewrong jack plug lead instrument burned troubles.
- Output,test the following signal:current signal,voltage signal,mV signal,8 kinds thermocouple (E,K,B,S,T,R,J,N) signal,resistance signal,thermal resistance (Pt100,Cu50) frequency signal,including 17 input,20 output function.V,mV,mA,Ω,Hz input output have the corresponding keys.
Specification:
- Output signal:
1.Voltage signal:0-11V
2.mV signal:0-110mV
3.Current signal:0-24mA
4.Resistance signal:20-400ohm
5.Frequency signal:100-10khz
6.Thermocouple (EKBRSTJN)
thermal resistance (Pt100 Cu50)
- Testing signal:
1.Voltage signal:0-+-30V
2.mV signal:0-+-150mV
3.Current signal:0-30mA
4.Resistance signal:0-999ohm
5.Frequency signal:0-10khz
6.Thermocouple (EKBRSTJN)
thermal resistance (Pt100 Cu50)
- Dimension:162x80x32
- Weight:500g
- Battery capacity:3300mAh
Cautions:
1.This instrument uses multiple internal self-recovery insurance and a quick one-time fuse blows.but any protective measures can not guarantee 100% complete reliable and we try our best to protect the safety of users and instrument.Any gear of the instrument can withstand 30V DC or AC voltage below 20V for 5 seconds at an error operation.Any gear can not be accessed to 220V AC mains.The violation of the above may cause personal injury,instrument damage
2.When the instrument works, the internal will produce a certain quantity of heat,which affect the measurement accuracy of the internal temperature measurement element to a certain extent.The size of the error is related to the level of ambient temperature,The current size of the source output,the size of the load resistance and temperature of the operators hand.Any internal integrated temperature measurement instruments can not avoid such errors.To overcome this error, we recommend using an external Pt100 temperature probe.
3.The precision of resistance output has a certain relationship with the external resistor output excitation source in the resistance output gear.Too small current will cause a certain degree of error to the output resistance, so it will may cause a little error to check the output resistance with ordinary multimeter
4. HG-S309-1 has no resistance, temperature resistance output functions.Other functions is same as HG-S309-2.
The multifunction process calibrator include the functions required to maintain PLC,DCS,ESD,field instrumentation,valves and frequency converter.It has high precision,long-term stability,full security protection,clear display with backlight and shell with a new ABS material to resistance Scratch.Its resistance of copper connector contact is minimal and compatible with the traditional security type Multimeters.This calibrator is compact and portable and reasonable panel layout.The measurement/output of V,mV,mA,resistive,frequency have the corresponding buttons. you can use these function without any Combined- buttons.In general,the operation of calibrator is very simple.
Package List:

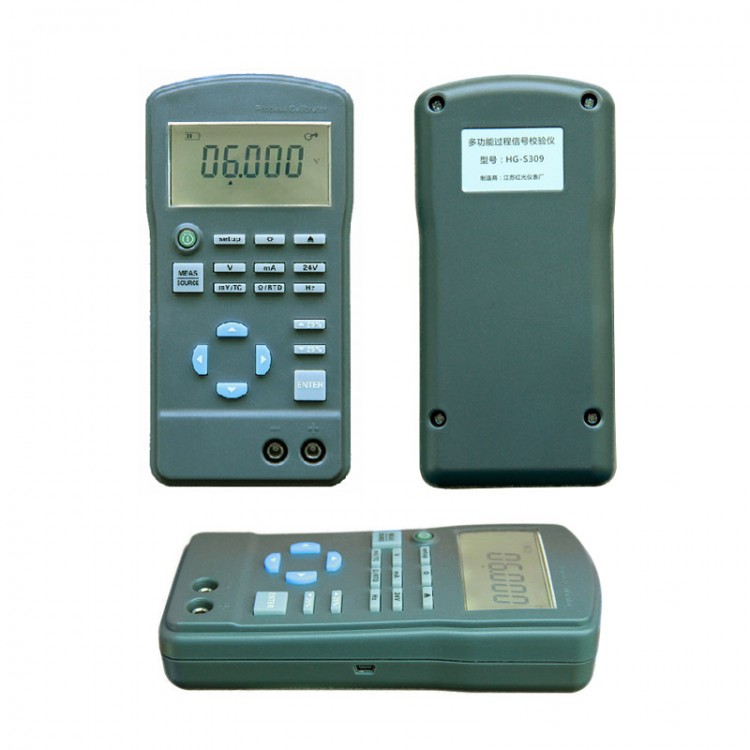

- 1 x HG-S309 Signal Generator
- 1 x Cable
- 1 x USB cable
- 1 x Paper box
- 1 x Bag
- 1 x User manual
