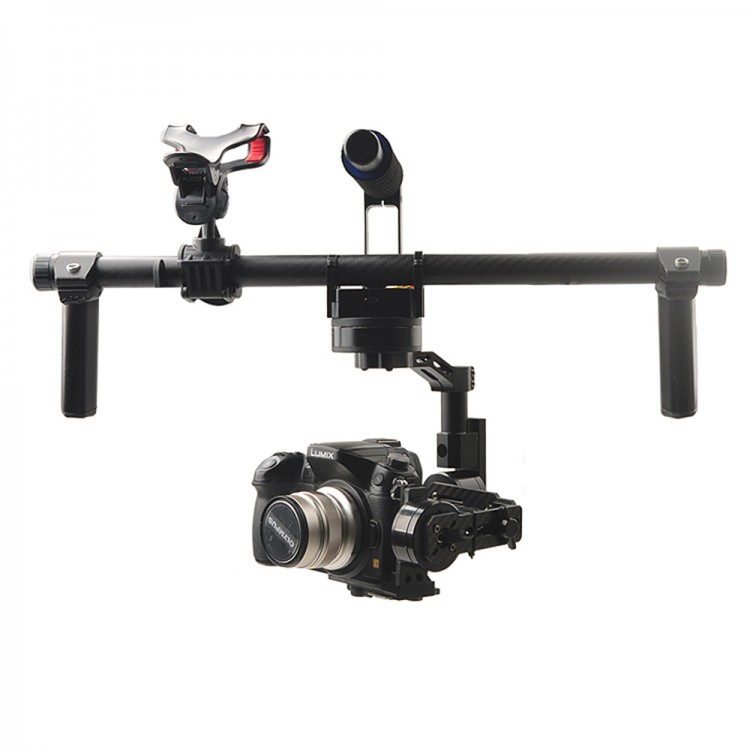

HG3D Handheld Mini DSLR 3-Axis Brushless Gimbal Camera Mount PTZ for GH3 GH4 NEX5 A5000 6000 A7 FPV Multicopter

HG3D Handheld Mini DSLR 3-Axis Brushless Gimbal Camera Mount PTZ for GH3 GH4 NEX5 A5000 6000 A7 FPV Multicopter


Description:
HG3D Universal handheld 3-axis brushless gimbal for Mini SLR, such as Panasonic GH3/GH4,Sony Nex 5N/5T/5R A5000/A6000/A7, it based Storm32 open source solutions, and we carried out a proper optimization, it can lead to better results.

It is a handheld gimbal, and also can be used to install additional damping suspension assembly aerial photography, high-efficiency direct-drive brushless motor, through advanced algorithms and 32-bit processors operational advantages make the camera in the air holding steady as possible, be able to bring the ultimate picture experience.

Specifications:
- Storm32 hardware platform V1.3 with F103RC , Firmware version V082E
- WeightL: About 1050g (exclude battery and camera)
- Size: 520*300*200 mm
- Aerial work mode: Default mode is Yaw Follow, could change to orientation-locked mode or Yaw&Tilt Follow mode by Radio transmitter
- Power supply: 12-15V(handheld mode); -360~360 deg C(FPV mode);Tilt control -90~ +30°; Yaw control -25°~+25°(Handheld work mode)
- Brushless controller hardware version V1.3 with F103RC; program version V082E

Note: User can DIY or add the shockproof hanger kit to upgrade it into the FPV version.

Package included:
- 1 x Gimbal frame
- 3 x Brushless motor
- 1 x Storm32 32bit open-source gimbal control plate
- 1 x Bracket
