HGLRC PBF3 EVO Flight Controller + 4 IN 1 ESC XR25A 396 for FPV Racing Drone Quadcopter

HGLRC PBF3 EVO Flight Controller + 4 IN 1 ESC XR25A 396 for FPV Racing Drone Quadcopter

Specifications:
- Weight: 6.5g
- Support quadcopter: <280mm,especially within 130mm
- Continuous current: 25A*4 (Max. current 35A*4 15S)
- PBf3 evo flight controller with MPU6000 , faster response
- PBF3 EVO integrated 5C 3A BEC, PDB (6DOF, no barometer or electronic compass )
- Size: 23*23mm, fixed hole 20mm (M2 hole)
- For quadcopter, built in RC/LC filter,support CF, BF firmware (PIKOBLX)
- STM32F3CCT6 microcontroller 256K flash memory, MPU6000 sensor SPI interface connection, faster computing speed;
- Support 2-6S power input;
- Built in 3A 5V output BEC;
- Support SBUS/PPM/DSMX and other mainstream receiver;
- Buzzer / programming LED/ voltage monitor /BLHELI electrical programming

4 IN 1 XR25A 396  ESC supports MultiShot Onestot42/125 BLheli:

Technical parameter:
- Input voltage: 2-6S LiPo/2-6S HV LiPo
- BEC output: no
- Single electric current: 25A (maximum current: 35A 15 seconds)
- 4 in1 ESC size: 27 *27mm (motherboard size) /31*3.15mm (including the maximum size of the pad and highlight)
- Weight: 4.2g
- Firmware: BLHELI
- Support Damped mode, Oneshot125/42,CW CCW
- Processor: SILABS C8051F396 50MHZ
- MOS tube: TPN2R703NL
- Driver: 3 in 1 MOS drive

Tips:
- 130mm rack above the power, please use the 2 *electrolytic capacitors.
- The flight control andESC installation to make sure both panel, the arrow on the same point of connection, otherwise it will cause damage

Package Contents:

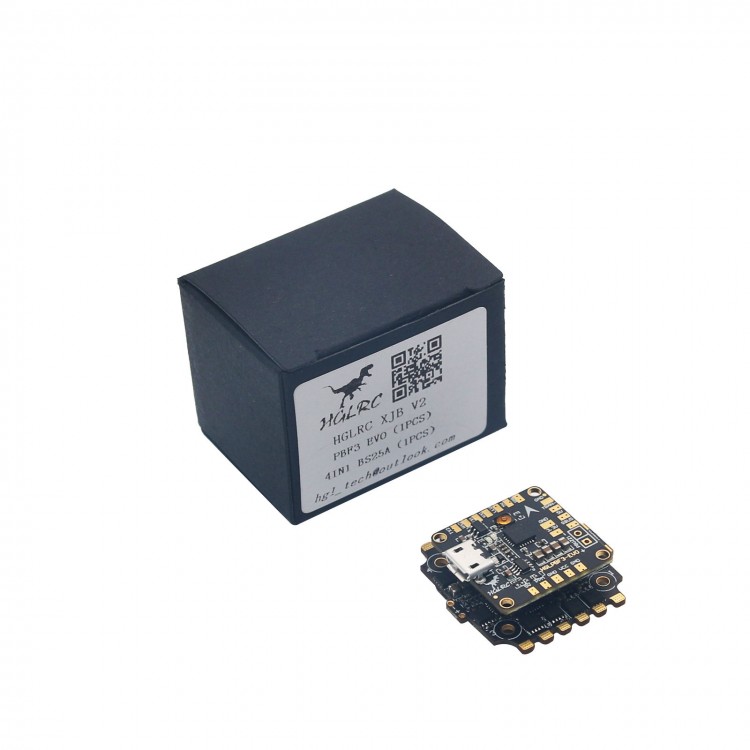

- 1 x HGLRC PBF3 EVO Flight Controller + 4 IN 1 ESC
