HGLRC XJB75 FPV Racing Drone 4 Axis Quadcopter with Camera Flight Control Propeller Unassembled

HGLRC XJB75 FPV Racing Drone 4 Axis Quadcopter with Camera Flight Control Propeller Unassembled

TIPS:
- Spare parts, assemble it yourself
- Please choose express delivery because the product includes battery.

Description:
- Brand name: HGLRC
- Item name: XJB-75 Mini FPV Racing Drone
- Wheelbase: 75mm
- Size: 110mm*110mm*70mm
- Weight: 66g( battery not include)
- Motor: HGLRC FLAME 1104 7500KV brushless motor(2S pull 120g,3S pull 200g)
- ESC: HGLRC XR396-25A BLHELI 2-4S 4 in 1 ESC
- Propeller: R2030 3-blades propeller
- Camera: 600TVL HD CMOS 1/4 inch
- VTX: 5.8g 0/25/50/200MW 40CH NTSC/PAL video transmitter
- Flight controller: HGLRC PBF3-EVO Betaflight F3
- Firmware of flight controller: Betaflight 3.01
- Flight time : 5minutes
- Rear LED Ready (LED_Strip function)
- Buzzer Ready
- Battery: HGLRC 7.4V 550mah 35C lipo battery

HGLRC PBF3-EVO Betaflight F3:
- Size: 23mm*23mm
- Mount hole: 20mm*20mm
- 2OZ*4 Layer Board
- Processor: STM32 F303 MCU
- Sensor: SPI Sensor MPU6000
- Firmware version: Betaflight 3.01
- Target: PIKOBLXF3
- Receive:SBUS/DSMX/PPM ETC.
- Telemetry Support
- Transponder Support

HGLRC XR396 25A BLHELI 4 in 1 ESC:
- Size: 27mm*27mm
- Mount hole: 20mm*20mm
- 2OZ*6 Layer Board
- F396 Chip
- Lipo Battery: 2-4S
- Con. Current: 25A
- Peak Current: 35A (20S)
- Programming: YES
- Betaflight passtrough ready
- Support oneshot42 oneshot125 Multishot
- Damped light on

Features:
- Extremely light and more powerful
- STM32 F303MCU(MPU-6000SPI) + 4in1BLHELI ESC make your Operating feel more stabilly and silky
- 30' Angle of camera
- Jaw-dropping flight performance
- Cleanflight/Betaflight support
- Acro mode / Air mode /Angle mode support
- Radio Stick to control PID Tunes
- BLHELI pass-through ready
- Telemetry RSSI Output ready
- Weight Only 99g(include battery)
- XR396 4IN1 ESC Supermin Size 27*27,Max Current 140A, Conjunction with PBF3 EVO Use 160-250MM drone.

Receiver  :
- Compatible Frsky SBUS receiver
- Compatible Flysky 8CH AFHDS2A receiver
- Compatible Specktrum DSM2/DSMX receiver

Compatible:
- Frsky Receiver compatible with FRSKY ACCST, X9D(Plus)DJT/DFT/DHT
- Flysky Receiver compatible with FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F.
- DSM2/DSMX Receiver compatible wiht Satellite receiver.

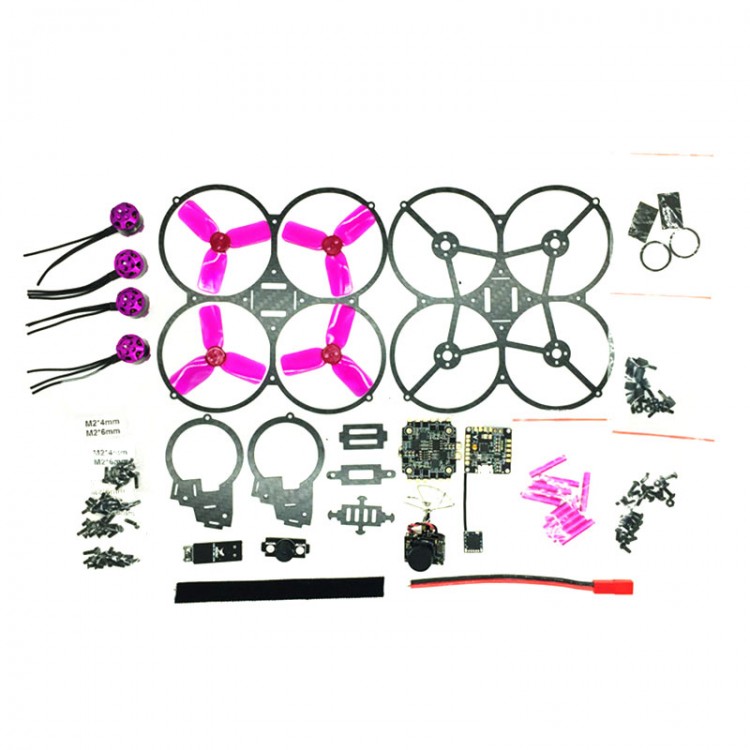

Package included:
- 1 x HGLRC XJB-75 quadcopter Frame kit
- 1 x HGLRC PBF3-EVO Betaflight F3
- 1 x DSMX2 receiver
- 4 x HGLRC FLAME 1104 7500KV brushless motor
- 1 x HGLRC XR396 25A BLHELI 4 in 1 ESC
- 4 x R2030 4-blades propeller
- 1 x 600TVL HD CMOS 1/4 inch  camera
- 1 x 5.8g 0/25/50/200MW 40CH NTSC/PAL video transmitter
- 1 x HGLRC 11.1V 550mah 35C lipo battery
