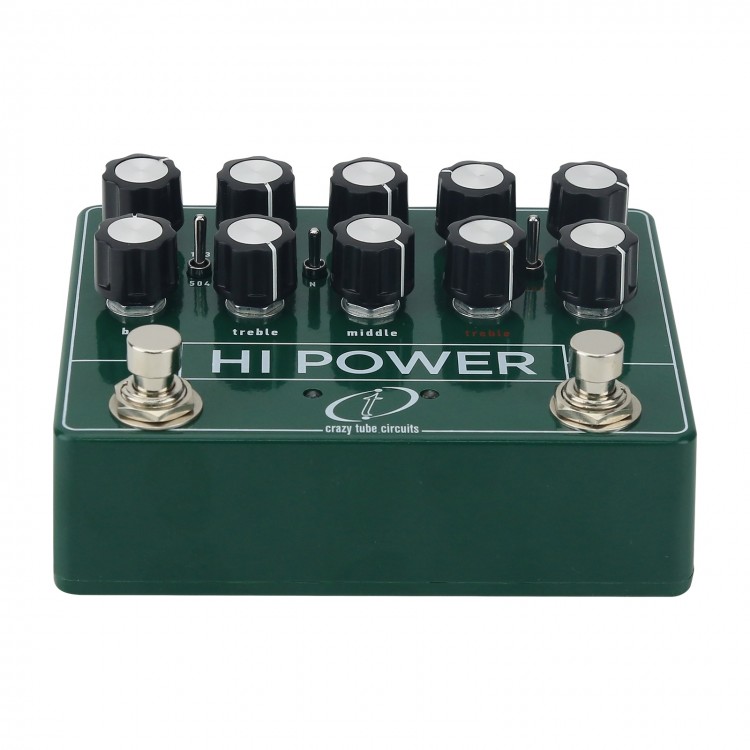

HI POWER Guitar Effects Pedal Rock Overdrive Distortion Effects Pedal Pink Floyd Timbre Replica Version

HI POWER Guitar Effects Pedal Rock Overdrive Distortion Effects Pedal Pink Floyd Timbre Replica Version

Description:
- Hi Power is a dual overdrive/amplifier integrated product, with an electronic tube amplifier on one side and a colorsound power amplifier on the other side. Its inspiration comes from the sound combination of two British mixing machines. Although the combination of these two units directly implies the gear setting used by David Gilmore in Pink Floyd's album: 'Hope You're Here', the sonic options are endless.

- The orange Colorsound Power Boost provides a transparent and clean enhancement effect for fine hairs that go all out, thereby elevating the tube amplifier to the speed of sound. The crazy electronic tube circuit is starting to clone the original unit, and the ultra flexible 2-band Baxandal1 equalizer circuit can add bite and low-end rumble to any setting. Although early units did not have a master volume, this pedal included one. The newer version of the power boost (gray) has a lower clearance height and combines a trigger flip.

- On the left side, you will find a fully analog circuit used to simulate the sound and sensation of a high-power amplifier. From bold high clearance clean sounds to crisp tones that melt the face. Including a complete equalizer section and a presence control. There are four clear space switches available. Choose between a 100W high clearance (Hiwat DR103) with 134 or a 50W low clearance and compression (think DR504) with 2 E134. An additional switch has been added to select the input channel of the amplifier: the options for normal or bright channels are available.

- It also includes a passive effects loop, where when using an external bypass switch/loop, you can choose to connect pedals between the amplifier/overdrive driver and amplifier in one box, or use these two parts as separate and independent effects. Gilmore enthusiasts will enjoy inserting their large sleeves, tube drivers, and stage 90 there. Please note that when either or both parts are in a bypass state, all pedals inserted into the passive effect loop are still in the signal chain.

- Power supply (This information is very important): It is best to use a linear power supply with 9V internal negative and external positive DC, and the maximum voltage should not exceed 9.7V. Do not attempt to supply power to the device with a voltage exceeding 9.7V or higher, as it may burn out the device.

Orange control section (COLORSOUND POWERBOOST section):
- VOL: control the gain of the thruster/overload. When you rotate GAIN clockwise, the sound will transition from clear to gradually blurred Faz. CTC uses a reverse potentiometer, which can more accurately adjust the gain of excitation/overload compared to conventional linear potentiometers.
- PWR: simulate the 18V version
- BASS: control low frequency
- TREBLE: control high frequency
- MASTER: control the overall input signal
- DDR: simulate the 9V version

White control part (HIWATT part):
- VOLUME: control the amount of gain, from large dynamic voice over to wild British distortion
- BASS: control low frequency
- TREBLE: control high frequency
- MIDDLE: control intermediate frequency
- MASTER: control the overall input signal
- PRES: control of on-site presence
- B/L/N gear shift: abbreviation for BRIGHT/NORMAL/LINK (bright, normal, two channels in series, three modes optional)
- 103/504 gear shift: equivalent to switching gears between 100W and 50W

Note:
- The product is handmade and inevitably has flaws. For perfectionists, please do not purchase.

Package Included:
- 1 x Guitar Effects Pedal
