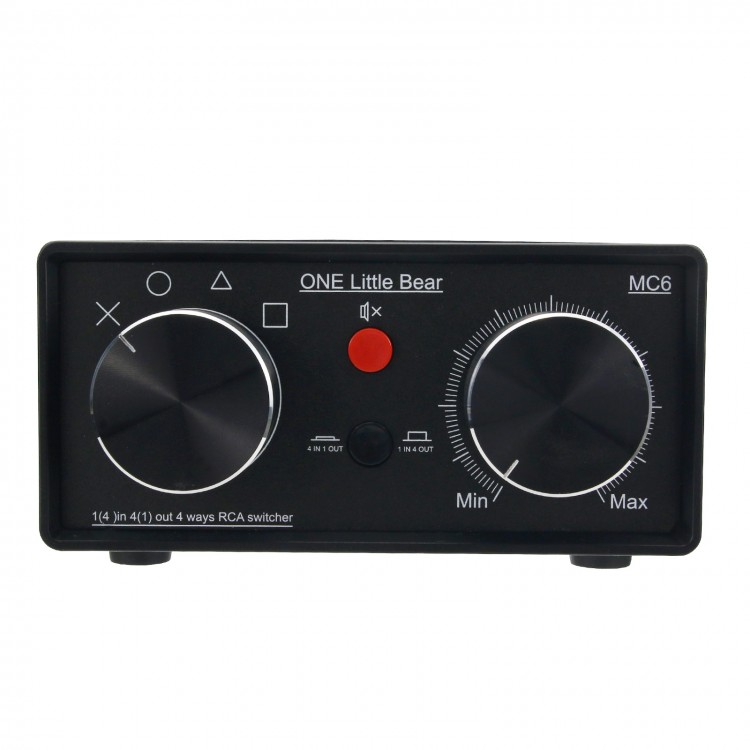

HiFi 4 Channel Audio Switcher RCA 4 in 1 out 1 in 4 Out Converter MC6 for Active Speaker ALPS

HiFi 4 Channel Audio Switcher RCA 4 in 1 out  1 in 4 Out Converter MC6 for Active Speaker ALPS

Description
- This converter adopts high grade materials, 10 original USA gold-plated RCA sockets; for Japan ALPS 27 potentiometers; silver-plated rotary switches to ensure the lossless transmission of signals. Each group of signals is fully isolated and there is no common ground,which without nosie. The audio cable of each stage is also connected with a fully shielded cable. It eliminates external interference. Ensures that the signal is pure .In addition, it can be set to 1 in 4 out or 4 in 1 out mode by the switch. Easy to debug your machine!


Function introduction:
1, two options to meet different needs: 4-IN-1-OUT is suitable for single-channel input power amplifier and active speaker, or 1-IN-4-OUT is used for debugging equipment and audio source comparison .
2, choose high-end components, such as Original USA CMC gold-plated RCA socket; Japan ALPS 27 potentiometer; silver-plated switch; low contact resistance to ensure that no noise or interference is generated, to avoid affecting your listening experience.
3. Passive audio switcher is very easy to use, no need to worry about sound effects.
4, pure manual DIY welding, with HI-Fl sound quality, mini size, easy to carry.

Specifications:
 - connector jack: gold RCA jack * 5 groups
-  mute function: yes
- Volume control: Yes.
- impedance: 100K
- working mode: 1 in 4 out or 4 in 1 out. Switch by push button switch.
- Size: (L) 150mm * (W) 106mm * (H) 69mm (excluding knobs)
-  Net weight: 600 grams
- Package weight: 700 grams


Packing list:
1 * audio switcher
1 * Instructions
