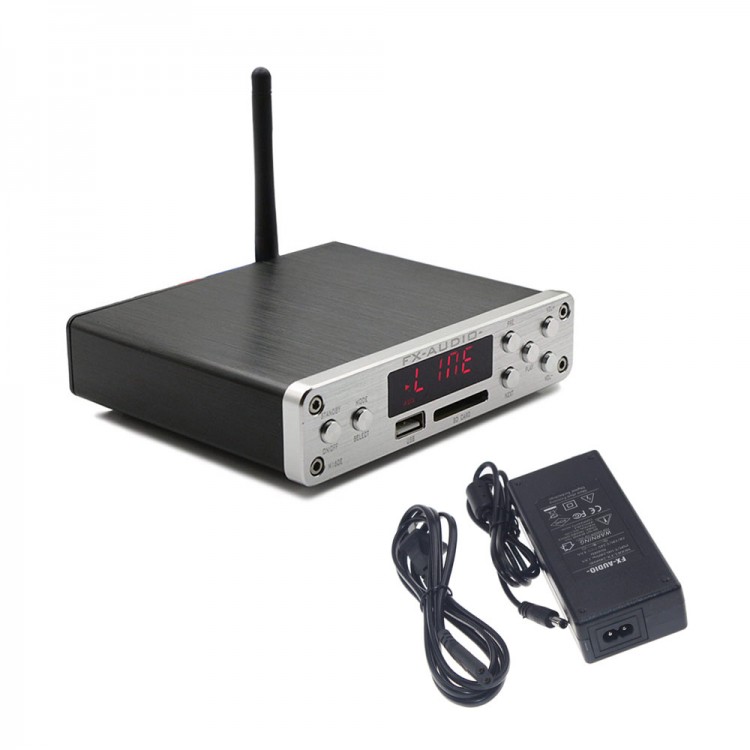

HIFI Amplifier Digital Bluetooth 4.0 Audio AMP 160W+160W Support U-Disk SD APE w/Power Supply FX M-160E-White
Specification:
- Model: FX M-160E Bluetooth 4.0 HIFI Audio Amplifier
- Color: White
- Input interface: U-Disk/SD card/bluetooth4.0/analog AUX RCA/PC computer USB
- AUX input: 300mV-2000mV
- Output interface: Stereo power output
- Output power: 160W+160W (4R) 80W+80W (8R)
- THD+N: 0.03%
- SNR: 86DB
- For impedance: 4, 6 , 8Ohm
- Frequency response: 20Hz-20KHz
- USB sound card sampling: 44.1-48K
- U-Disk capacity: Maximum 32Gb
- SD card capacity: Maximum 32Gb
- Document system support: FAT16, FAT32, ExFAT/Fat64
- Music format: MP3,WMA,APE,FLAC,WAV (no licence)
- Support catalog: 8 sub catalogs
- Support NO. of file: Total 9,999
- Bluetooth : Bluetooth 4.0, compatible with 3.0 and below 3Mbit/s
- Power consumption: Mximum 320W
- Power supply: 110V /220V 50/60Hz DC32V
- Dimension: 135*110*30mm L*W*H
- Weight: 1kg
Features:
- ELNA filter capacitor
- PCM2704 sound card
- TDA7498E audio amplifier
- WIMA coupling capacitance
- LC filter
Suppport audio format:
| Audio format | Support version | Rate | Bit rate/sampling frequency |
| MP3 | MPEG1/2/2.5Layer1/2/3 | 8--320Kbps | - |
| WMA | WMA7.0/8.0/9.0 | 8--384Kbps | - |
| APE | 3.95 and above version(C1000-C3000) | <1000Kbps | 16bit/44.1Khz - 24bit/48Khz |
| FLAC | - | <1000Kbps | 16bit/44.1Khz - 24bit/48Khz |
| WAV(WAVE) | - | 1411Kbps-4608Kbps | 16bit/44.1Khz - 24bit/96Khz |
Package List:
- 1 x HIFI Digital Amplifier
- 1 x 3DB antenna
- 1 x Remote controller
- 1 x 32V 5A power supply
