HIFI Audio Power Amplifier USB 100W+100W Dual Channel Bluetooth4.0 Optical Coaxial AMP
Specifications:
- Output power: 2x300W , RMS100W (8Ohm)
- Freuqency response: 20Hz-20Khz
- THD: <0.01%
- SNR: >=80Db
- Ouptut level: 13V balance, 6.5V imbalance
- Input impedance: 20Kom RCA or 40KOhm balance
- Linear output impedance: 75Ohm
- Voltage gain: 26db
- Suggest speaker load: 4-16Ohm

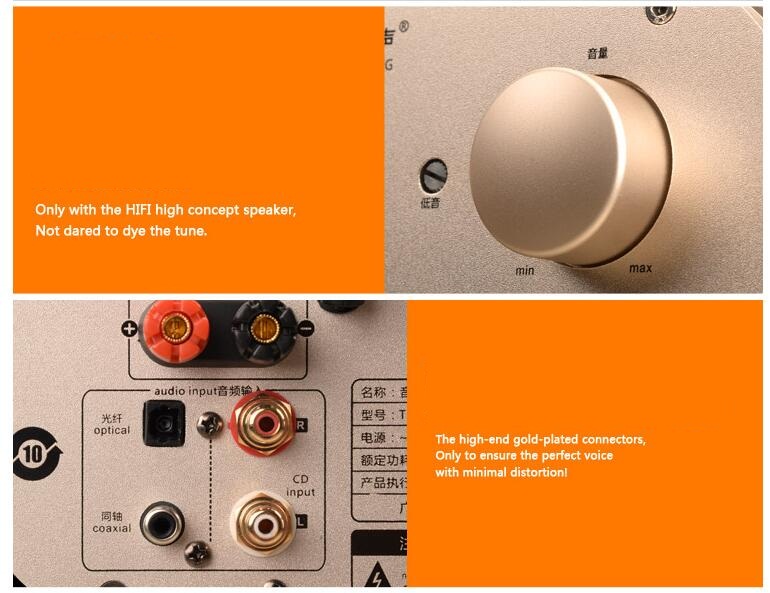

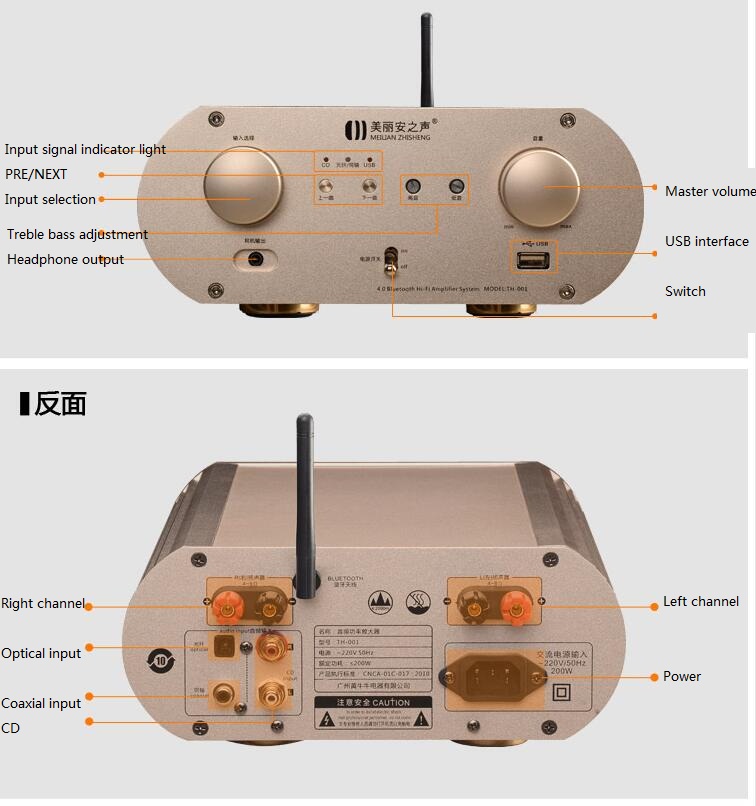

- Balance analog input: 1 pair gold-plated XLR interface
- Imbalance analog input: 2 pairs gold-plated RCA interface
- Digital input: 1*USB, 1*optical fiber input interface, 1*RCA
- Imbalance analog output: 2 pairs gold-plated banana interface
- Rated voltage: 220V -+10%
- Power consumption: <1W/23/1000W
- Dimension: 230*100*340mm
- Weight: 7kg
Parameters:
- Power: 300W+300W
- RMS: 100+100W (8Ohm)
- Rated load impedance: 4-16Ohm
- Input sensitivity: 500mV-+10mV
- Frequency response: 20Hz-20Khz
- SNR: >=80dB
- Rated voltage: 220V -+10%
- N.W: 7kg
Features:
- HIFI sound
- USB supports lossless format WAV/APE/FLAC
- Bluetooth 4.0
- Support analog/digital signal, optical and coaxial

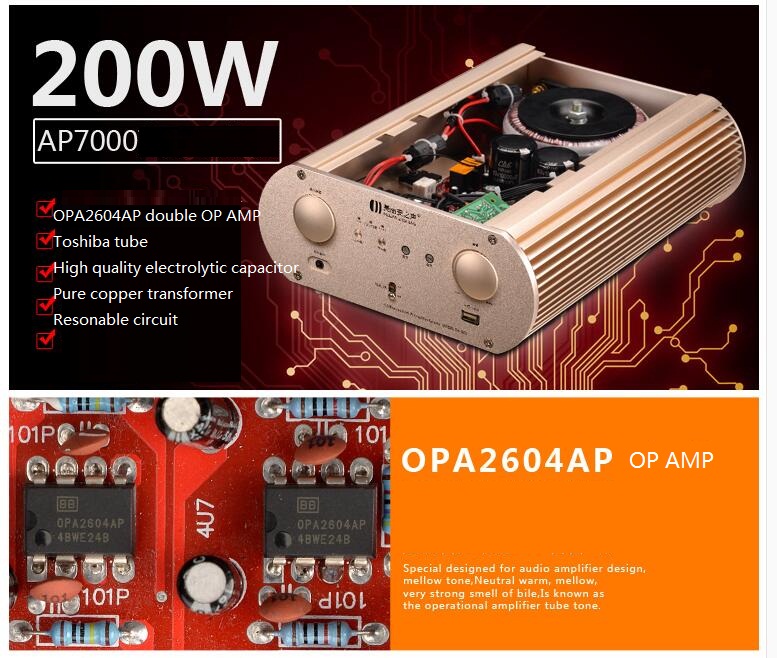

- OPA2604AP double OP AMP

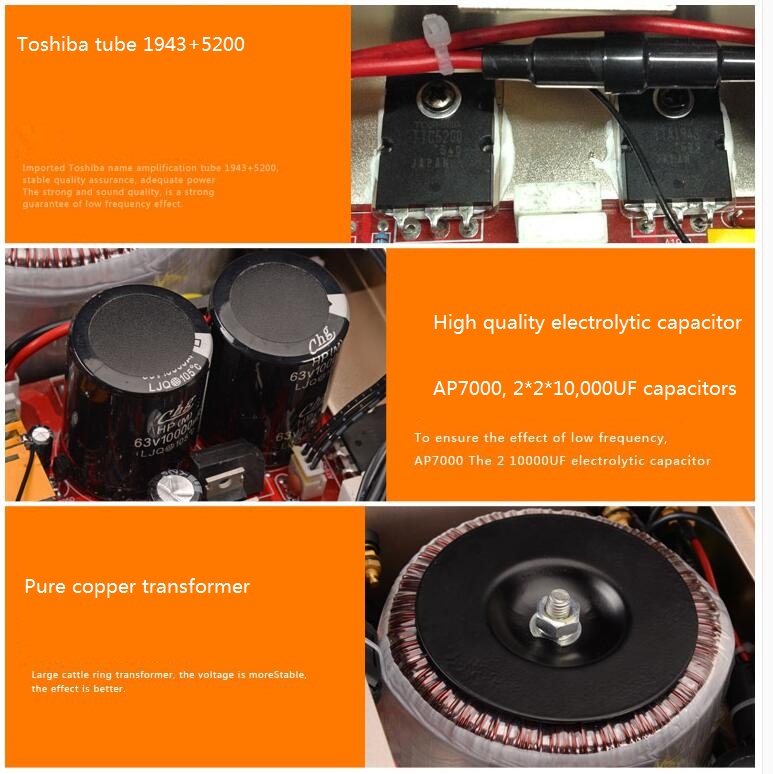

- Toshiba tube, 1943+5200
- High quality electrolytic capacitor, 2*10,000UF
- Pure copper transformer

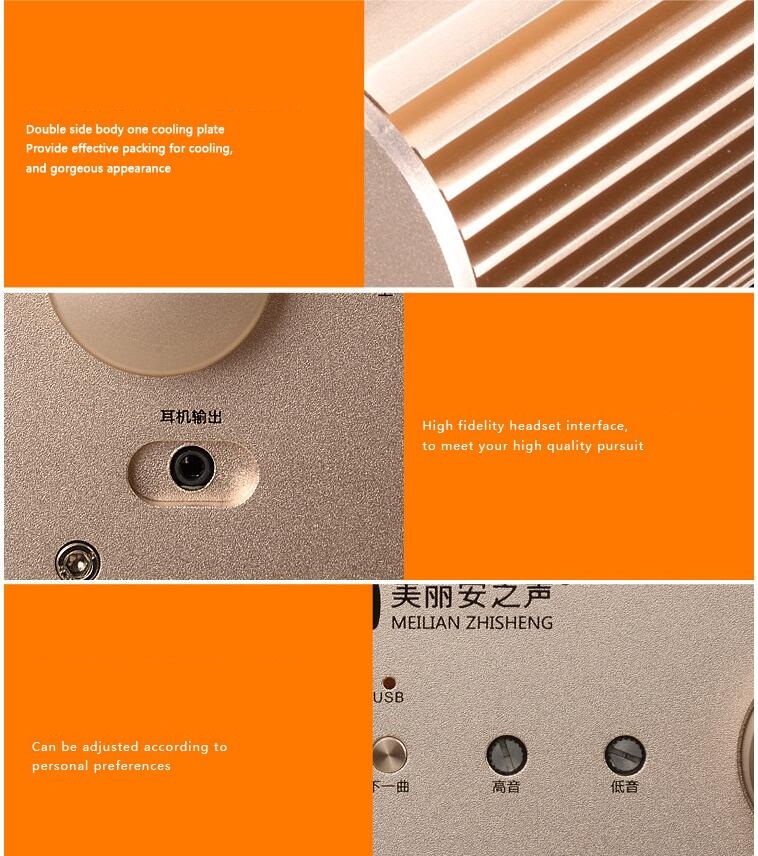

- Aluminum alloy shell with cooling fin
Package Contents:
- 1 x Power Amplifier
