HIFI Aune S10 24BIT/192K DAC AKM4390 Chip HIFI DAC Audio Codec - Silver

HIFI Aune S10 24BIT/192K DAC AKM4390 Chip HIFI DAC  Audio Codec - Silver

Description:
- S10 DAC is designed for AUNE brand high-performance audio codec. The sense of hearing requirements designed for advanced enthusiasts, thick and strong
- Sense of low-frequency and with a viscous, sticky sense extends to the IF, vocals slightly forward, high-frequency response - both to ensure listen to the extreme edge of
- More details and does not feel harsh. Sound auditory moderate speed, the machine can be more faithfully restore the recording.
- The subjective sense of design and with a thick solid viscosity sense of the low-frequency, full and thick midrange and clear high frequency. Sound Hearing speed
- Moderate, the machine can be more faithfully restore the recording.
- Objective design includes many advanced design that is conducive to the sense of hearing. Digital to analog converter core is based on AKM's latest technology
- AK4390, with the secondary phase-locked loop system based on high-performance low-noise VCO (voltage controlled oscillator), the effective suppression of digital audio signals
- Jitter. Optimized hardware design provides superior objective performance of the machine itself, these technical upgrade that ultimately lead to the sense of hearing

A qualitative improvement:
- Intuitive human-computer interaction, phase-locked loop system based on the quality of the source signal automatically switches to work, does not require complicated operation.
- USB1.1 interface provide the basis for PC connections are application without the need of additional drivers, Windows UAC1.0 can direct output to the AC97 standard
- Signal, WDM drivers, adaptive sampling  rate.

Performance Specifications:
- the full name of: aune Ribbon Series S10 24BIT/192K DAC
- Colors: Silver, Black (Current: Silver)
- Product weight: 8 (kg)
- Product Size: 340 * 430 * 70 (mm)
- Material: special all-aluminum chassis structure

Aune S10 Process:
- Aluminum wire drawing, polishing process
- Front panel thickness of 10.69mm
- Fuselage roof thickness 5.17mm

Features:
- Two phase-locked loop section technology: 2ND Phase Locked Loop
- The use of the the CLPD technology on the IIS signal clock restructuring
- 32BIT DAC chip AKM4390
- The use of multi-stage separation control design, display panel
- The A grade 0.23MMHIFI audio fully enclosed transformer
- Analog circuit part of the selection of high-precision components to ensure excellent sound quality
- USB 1.1, officially the shelves, we will cancel the interface Order member with the interface!

Accessories :
- S10 24BIT/192K DAC
- Pow supply  line

Specifications:
- Input: coaxial, optical , AES, and USB1.1
- Digital input quantization depth: 24Bit backward compatible
- Digital input sample rates: 44.1k, 88.2k, 176.4k, 48k, 96k and 192k

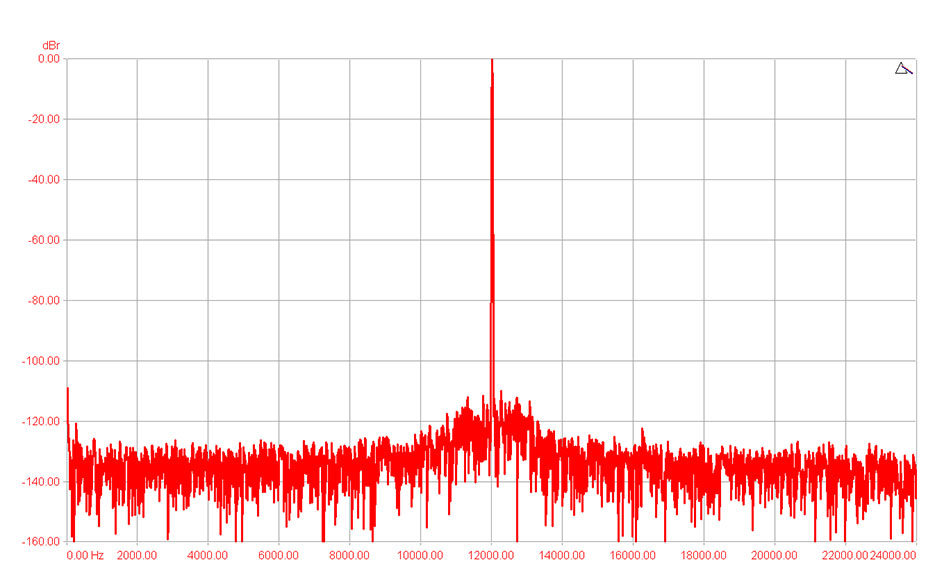

- Phase-locked loop output period jitter (PJ): 35pS typical
- Jitter Rejection Ratio: greater than 1000/1  in the 600Hz typical
- USB1.1 input: AC97 standard, WDM UAC1.0
- DynamicRange: 116dB
- Balanced output voltage: 6.15V
- Non-equilibrium output voltage: 3.08V

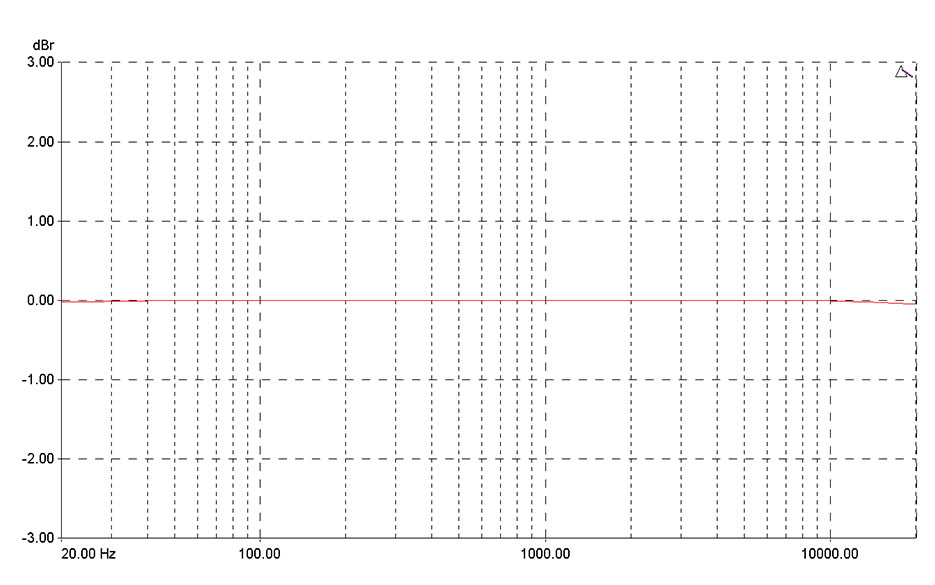

- Frequency Response: +0 /-0.08dB 20Hz - 20kHz

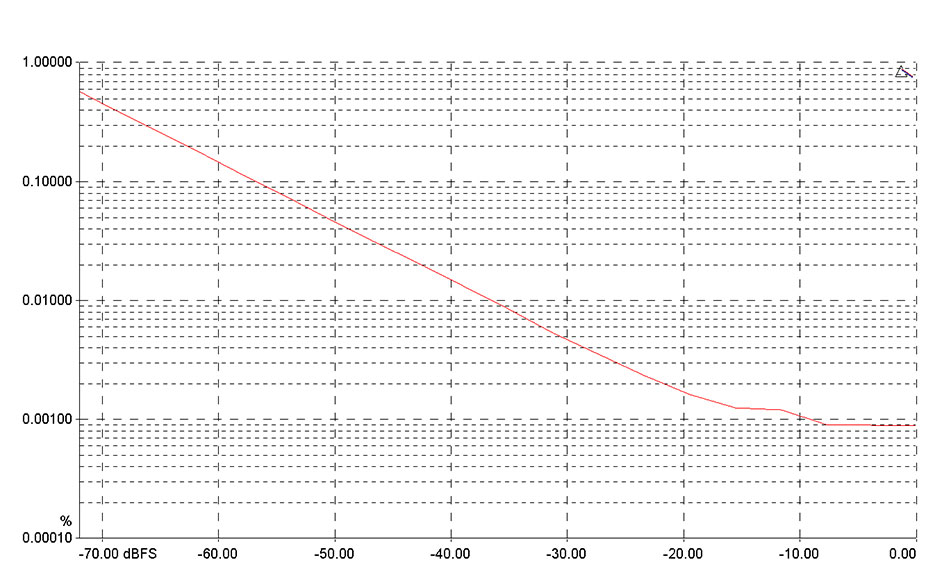

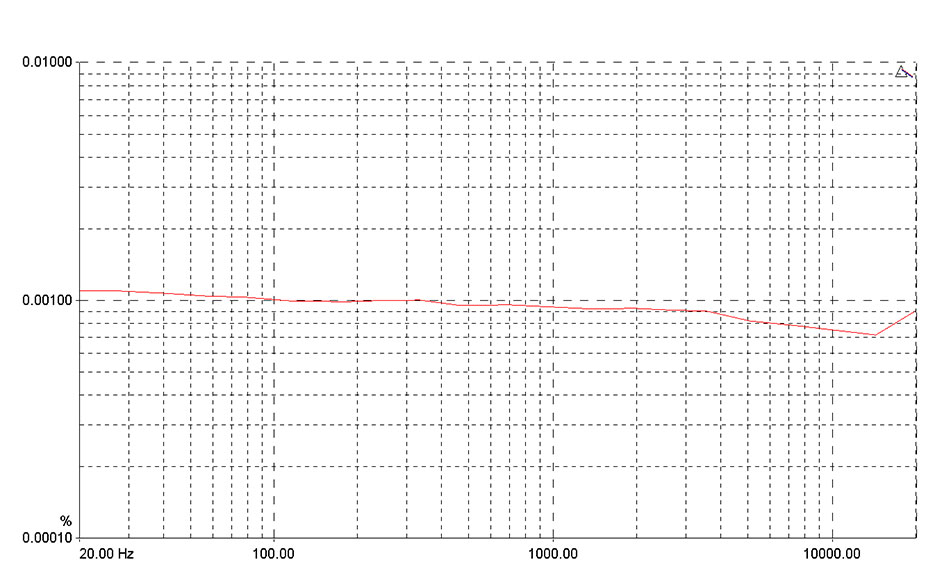

- The total harmonic distortion plus noise: 0.00085% typical / 1kHz

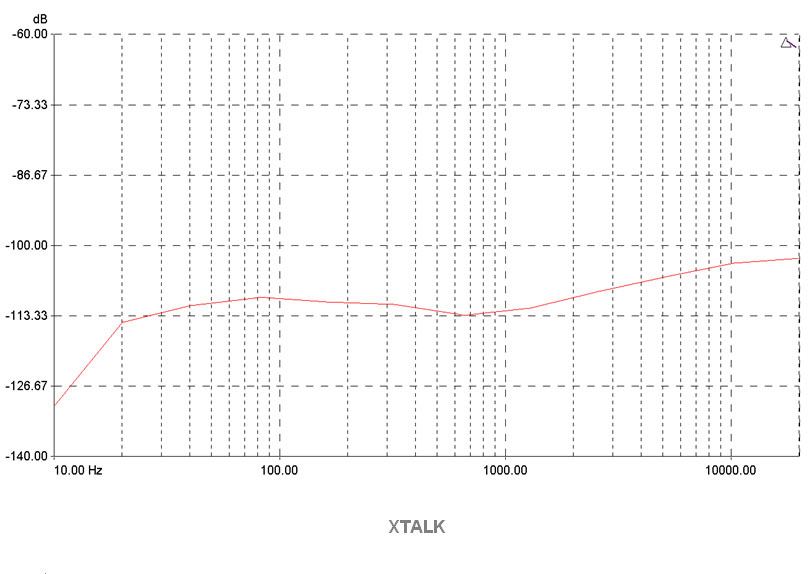

- Left and right channel cross distortion  : -120db typical in 1khz
