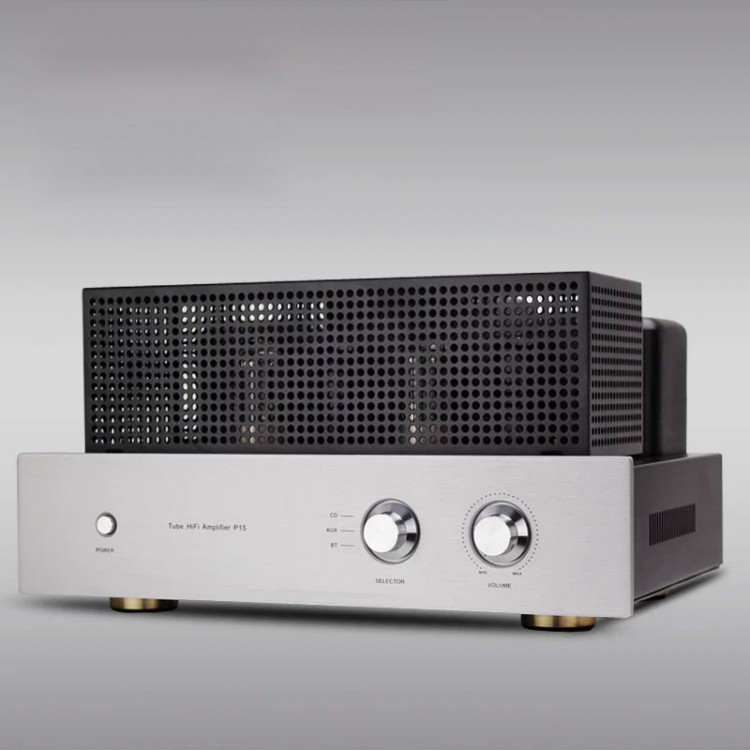

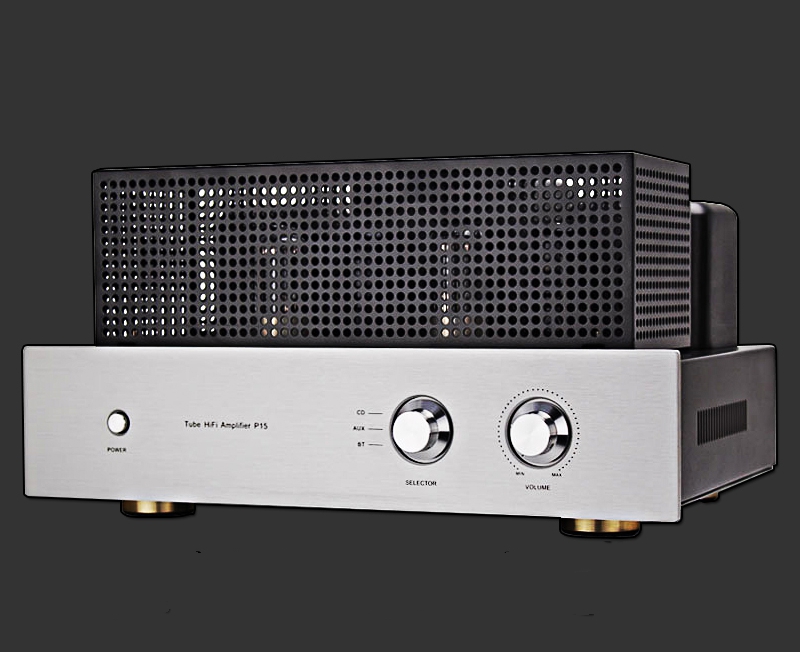

HiFi Bluetooth Power Amplifier Electronic Tube 6P6P x 4 + 6N9P x 2 Gallbladder Machine 5532 Operational Amplifier
Description:
- The power transformer provides sufficient large current with margin space.
- The output transformer uses high-temperature resistant and high-strength pure copper enameled wire, and uses a large iron core to ensure strong power output, which provides security guarantee for the subsequent upgrading and replacement of electronic tubes.

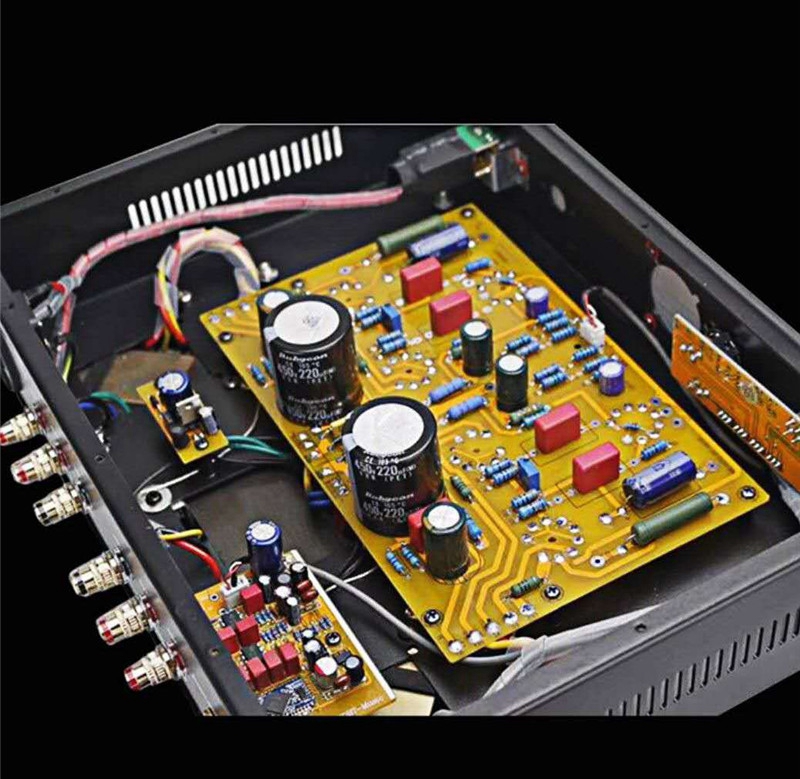

- This machine has a built-in BT input and 8635 stereo sound card Bluetooth chip. Add two operational amplifiers 5532. Then, it is a Bluetooth module board integrated with a high precision resistor and 8 coupling capacitors for WIMA.
Specification:
- Output power: 10W + 10W (8ohm)
- Electronic tube: 6P6P x 4PCS, 6N9P x 2PCS
- Output impedance: 0 - 4/0 - 8ohm
- Input impedance: 100K
- SNR: 90dB
- Frequency response: 20Hz - 20KHz, -1dB
- Input sensitivity: 500mV
- THD: ≤0.1%
- Size: 355 x 300 x 180mm
- Weight: 10kg
Package Included:
- 1 x Amplifier
