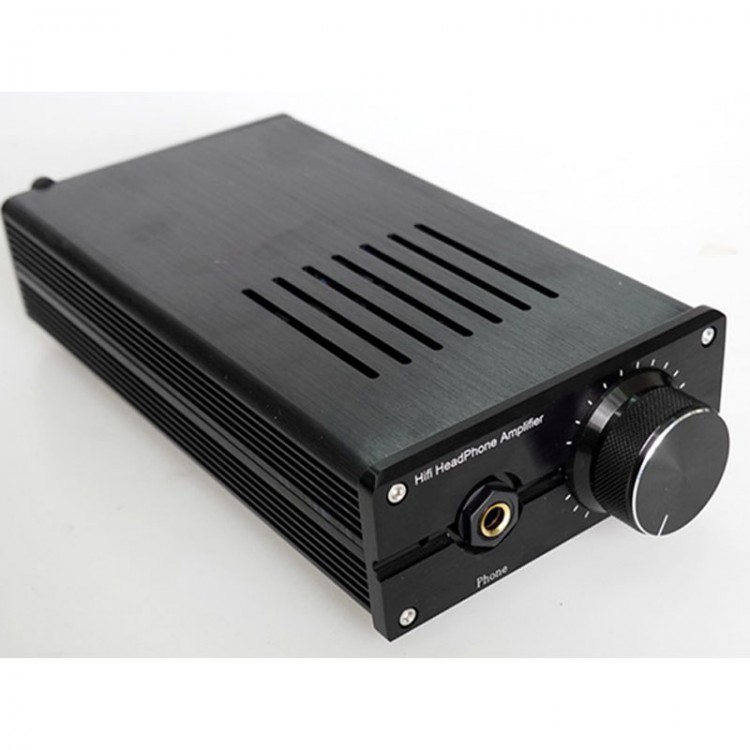

HiFi Class A Headphone Amplifier For K701 Low Impedance Low Sensitivity Headphones L1969Ultralinear
Description:
This amp is designed for low resistance, low sensitivity, tablets headphones, and electrostatic headphones. It features large output current and driving force, which is not suitable for small earbuds.
Specifications:
- Output Power (1KHZ sine wave equivalent non-distortion power): 2.2W/16 ohm, 4W/32 ohm, 5.3W/64 ohm, 2.4W/150 ohm
- SNR: > 96dB
- Output Impedance (internal resistance of amp): 0.3 ohm
- Voltage Amplification Gain: 13 times in high gain mode
- Maximum Output Voltage Swing: 19V
- Input Interfaces: RCA dual-channel sockets
- Output Interface: 6.5 headphone output
- Average Power Consumption: AC220V <15W
- N.W.: 2.2 kg
Package Included:
- 1 x Class A Headphone Amplifier
Note: Items with black or silver front panel will be delivered at random. Thank you for your understanding!
