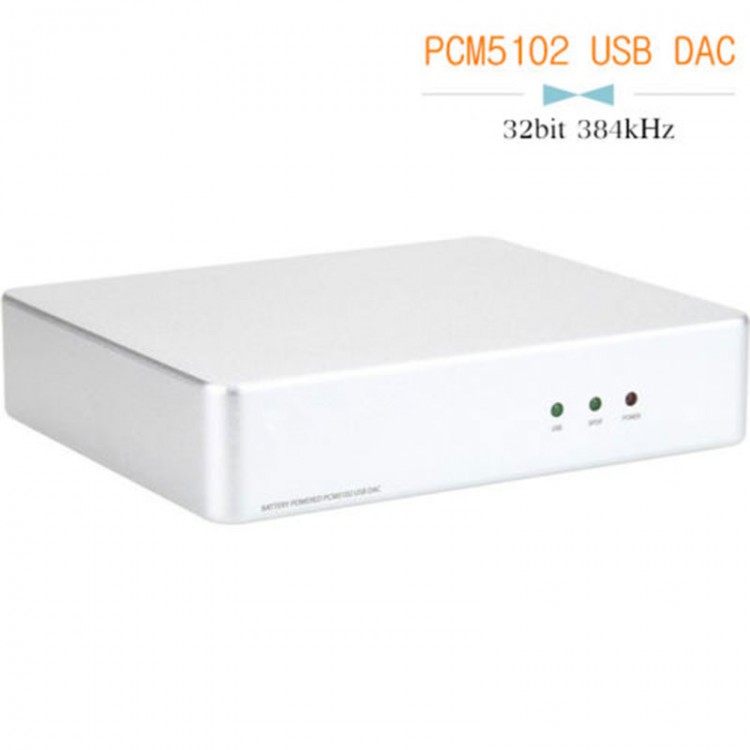

HiFi DAC PCM5102 on Battery 32bit 384kHz Digital Interface XMOS USB
Product Description:This DAC compact is equipped with an efficient 32bit 384kHz PCM5102 converter and USB interface XMOS.
Its special feature:
- The circuit is powered by an integrated 7.4V 1.5A battery that has the effect of avoiding parasites related to food.
- The switching power supply for charging the battery only.
- The battery here is a buffer to power "properly" the conversion circuit, it is necessary that the product is connected to a power supply in normal use.
Characteristics:
- Converter 32bit 384kHz PCM5102
- SPDIF receiver WM8805
- XMOS USB interface
- Fiber coaxial input support: 192K 24BIT
- USB input support: 384K 32BIT
- SNR: 112dB
- Output voltage: 2.1Vrms
- Toslink optical digital input
- SPDIF coaxial digital input
- Digital Input USB Type B
- Stereo RCA analog output
- Source Selection: Optical / Coaxial
- On / Off Switch
- LED light
- Aluminum Chassis
- The input voltage: DC5V to 12V
- Dimensions: 137x114x31mm
- Weight: 510g
- Supplied AC power (8.4V 1A) over the center (note the polarity when using adjustable transformers).
Package:
- 1 x DAC
- 1 x Power supply
