Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $293.90 | $287.90 | $278.91 | $266.91 | Contact US |

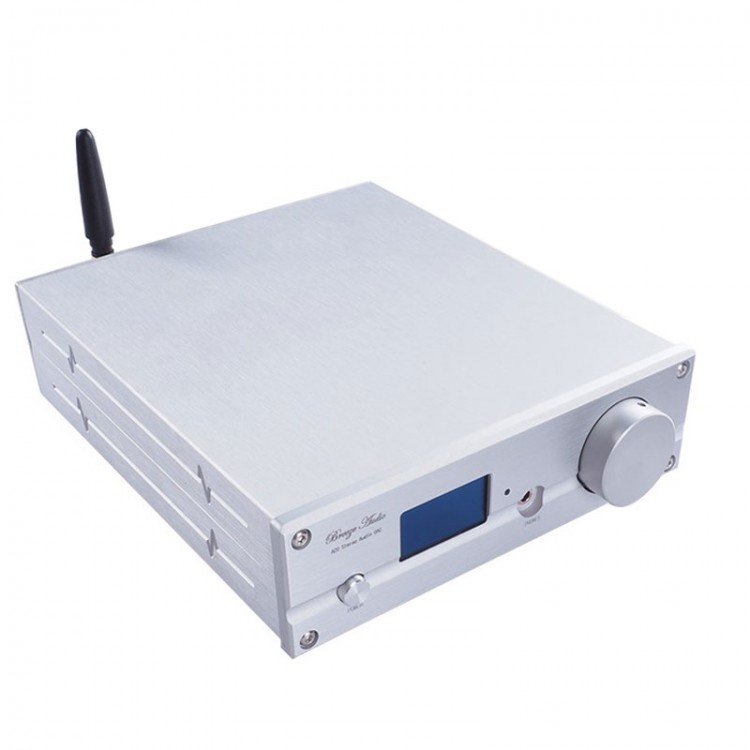

Product Details:
1. SU5 Multifunction ES9038Q23 Decoder, DSD256, Digital Shaping, Bluetooth 5.0, APT-X
2. Optical fiber, coaxial, USB, Bluetooth input
3. Input selection using AK4113 chip, XILINX data shaping
4. LPF uses OP275 op amp
5. Using ES9038Q23 decoder chip, ARM software control
6.Using XMOS-208 USB input
7.The TPA6120 chip is used as a headphone amplifier.
8. All-aluminum chassis
9.The CPLD digital shaping technology is used for the ES9038Q2M's versatile DSD Bluetooth decoder, ARM software control, DSD hard solution, CSR8675 Bluetooth 5.0 support APT-X, TPA6120 professional amp. Small size, exquisite workmanship, easy to use
Specifications:
- Dimensions: 150X44X169mm
- Weight: 1 kg (with packaging)
- Power supply description: Input 110/220VAC output 12VDC 2A
- Input Interface: COAX/OPT/USB/BLUETOOTH 5.0
- Output connector: RCA/3.5 headphone jack
- Display: Blue OLED
Package Included:
- 1 × Finished decoder (Black color and Silver color optional)
- 1 × 12V2A power adapter
